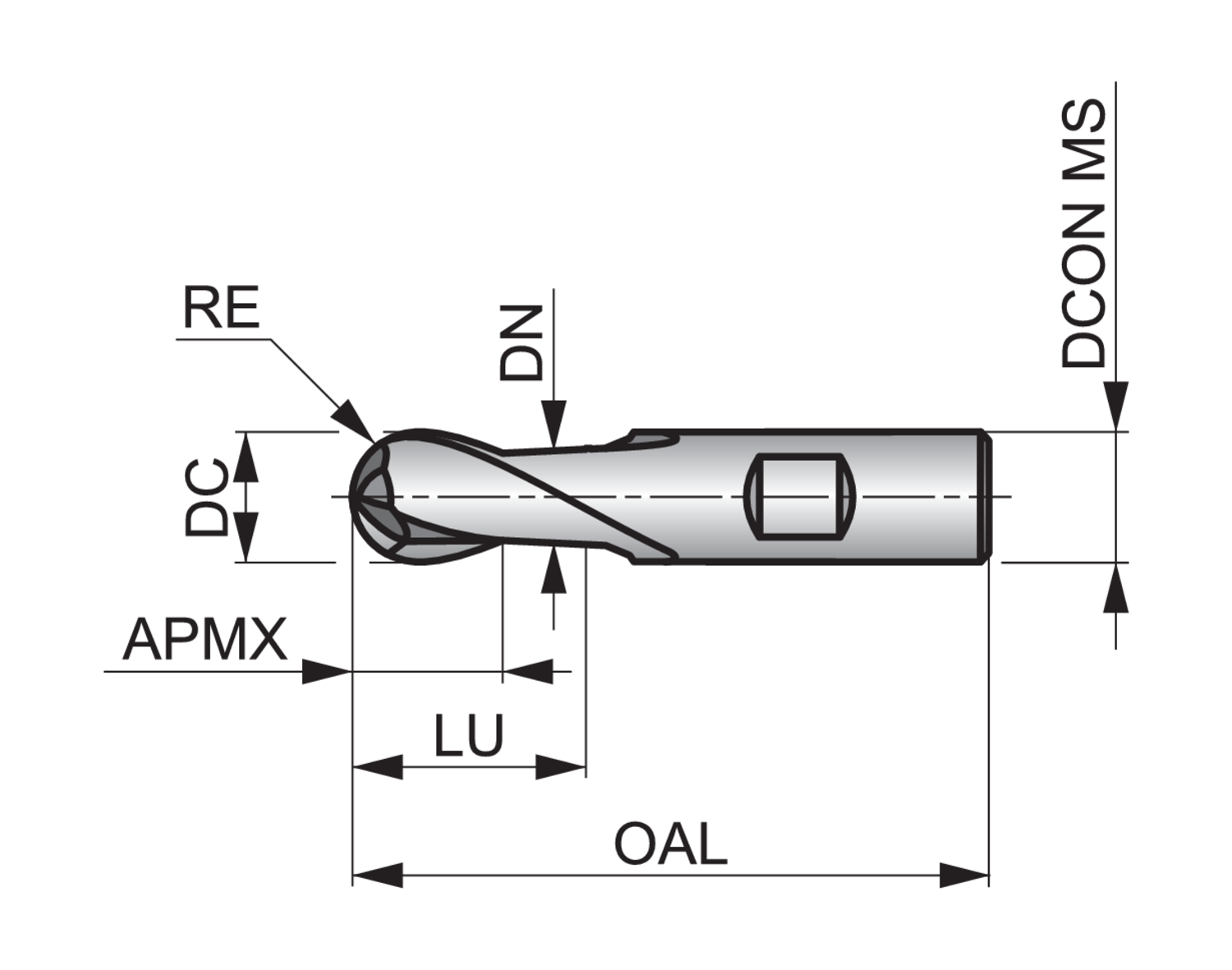

Dormer C50015.0 5985018 ball-nosed slot drill, 15.00 mm cutting diameter, Cobalt High Speed Steel (HSS-E), 2-flute, 30° helix angle, DIN 327 D standard. Suitable for non-ferrous metals, steel and cast steel, and high-temperature alloys. 16 mm maximum depth of cut.

Basic Standard

DIN 327 D

Coating

Bright

Connection diameter - inch (DCON MS)

0.4724

Connection diameter - millimeter (DCON MS)

12

Corner radius - inch (RE)

0.2953

Corner radius - millimeter (RE)

7.5

Cut length

Extra short

Cutting diameter - inch (DC)

0.5906

Cutting diameter - millimeter (DC)

15

Cutting diameter tolerance class (TCDC)

e8

Depth of cut maximum - inch (APMX)

0.6299

Depth of cut maximum - millimeter (APMX)

16

EDP number

126981

Flute count (NOF)

2

Flute helix angle (FHA)

30

Material

HSS-E

Material application

N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys

MID number

5985018

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Neck diameter - inch (DN)

0.4528

Neck diameter - millimeter (DN)

11.5

Ordering code ANSI

C50015.0

Overall length - inch (OAL)

2.874

Overall length - millimeter (OAL)

73

Peripheral effective cutting edge count (ZEFP)

2

Profile radius - millimeter (PRFRAD)

0

Radial rake angle (GAMF)

12

Shank

Weldon shank DIN 1835B

Usable Length - millimeter (LU)

27.5
