Dormer C50530.0 5985503 ball-nosed slot drill, 30.00mm cutting diameter, 2-flute, 30° helix angle, Cobalt High Speed Steel (HSS-E), DIN 844 K standard. Suitable for non-ferrous metals, steel and cast steel, and high-temperature alloys. 45mm maximum depth of cut, 0mm profile radius.
MODEL 5985503
$355.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
Bright

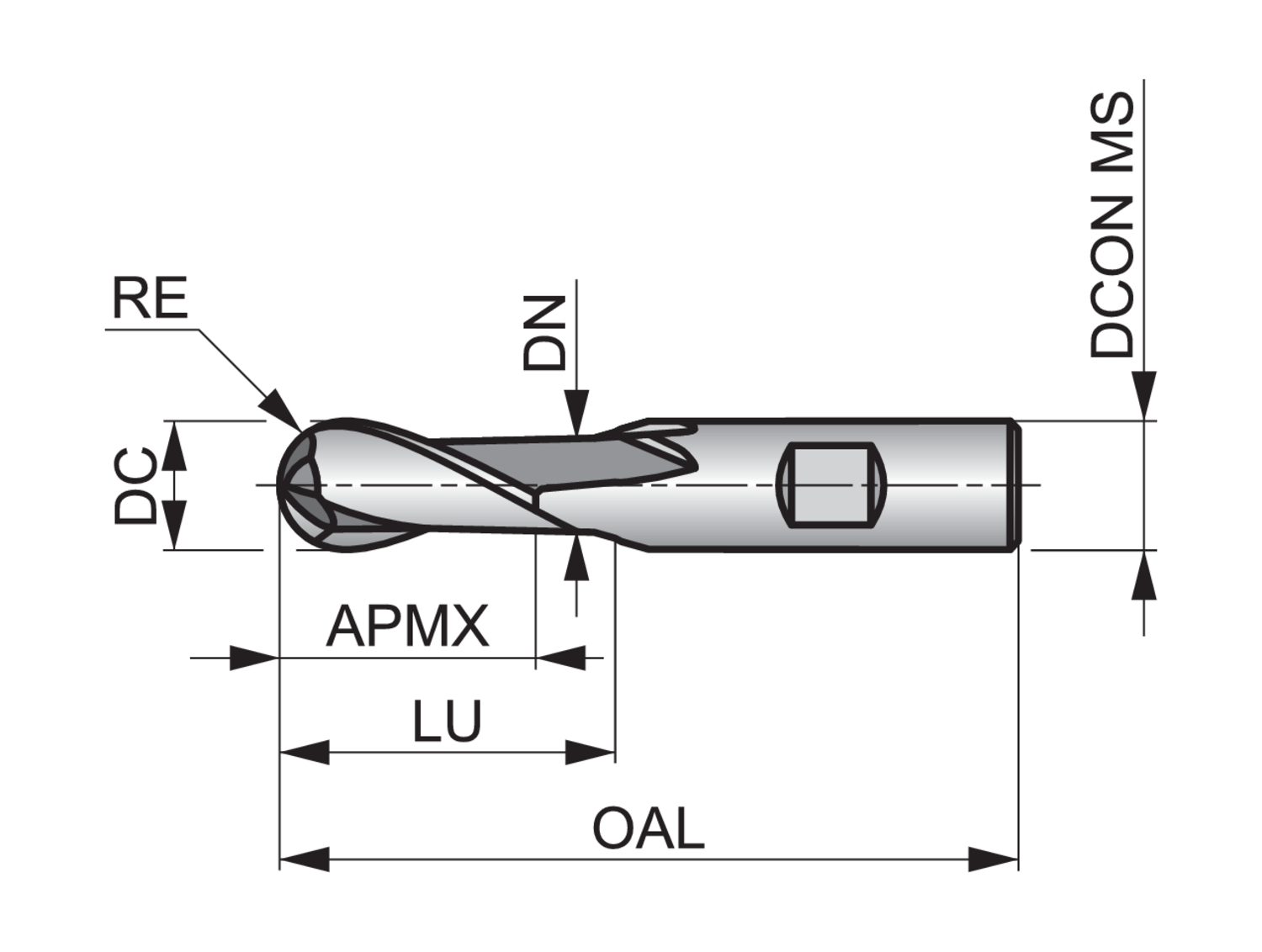

Connection diameter - inch (DCON MS)
0.9843
Connection diameter - millimeter (DCON MS)
25
Corner radius - inch (RE)
0.5906
Corner radius - millimeter (RE)
15
Cut length
Short
Cutting diameter - inch (DC)
1.1811
Cutting diameter - millimeter (DC)
30
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
1.7717
Depth of cut maximum - millimeter (APMX)
45
EDP number
73612
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HSS-E
Material application
N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5985503
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.9646
Neck diameter - millimeter (DN)
24.5
Ordering code ANSI
C50530.0
Overall length - inch (OAL)
4.7638
Overall length - millimeter (OAL)
121
Peripheral effective cutting edge count (ZEFP)
2
Profile radius - millimeter (PRFRAD)
0
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
64.5
The ball nosed geometry of C505 milling cutters is designed for contour milling complex surfaces on a CNC machine, whilst the medium 2 flute design gives high rigidity, increasing strength and reducing vibration.
The bright finish ensures workpiece material does not stick to the cutting edges of the tool so you get a cleaner, more accurate result.
C505 ball nosed milling cutters are manufactured from High Speed cobalt which means you get great performance and longer tool life.
They can be used for contour milling in cast iron, steels and stainless steels, making them a very versatile choice
