Dormer C6011.1/8X3/4 7647862 slot drill, 1/8" cutting diameter, 2-flute, High Speed Steel (HSS), ANSI standard, 30° helix angle. Designed for slotting and profiling in steel and cast steel (P material group). 3/4" connection diameter for secure tool holding.

Basic Standard

ANSI

Coating

Bright

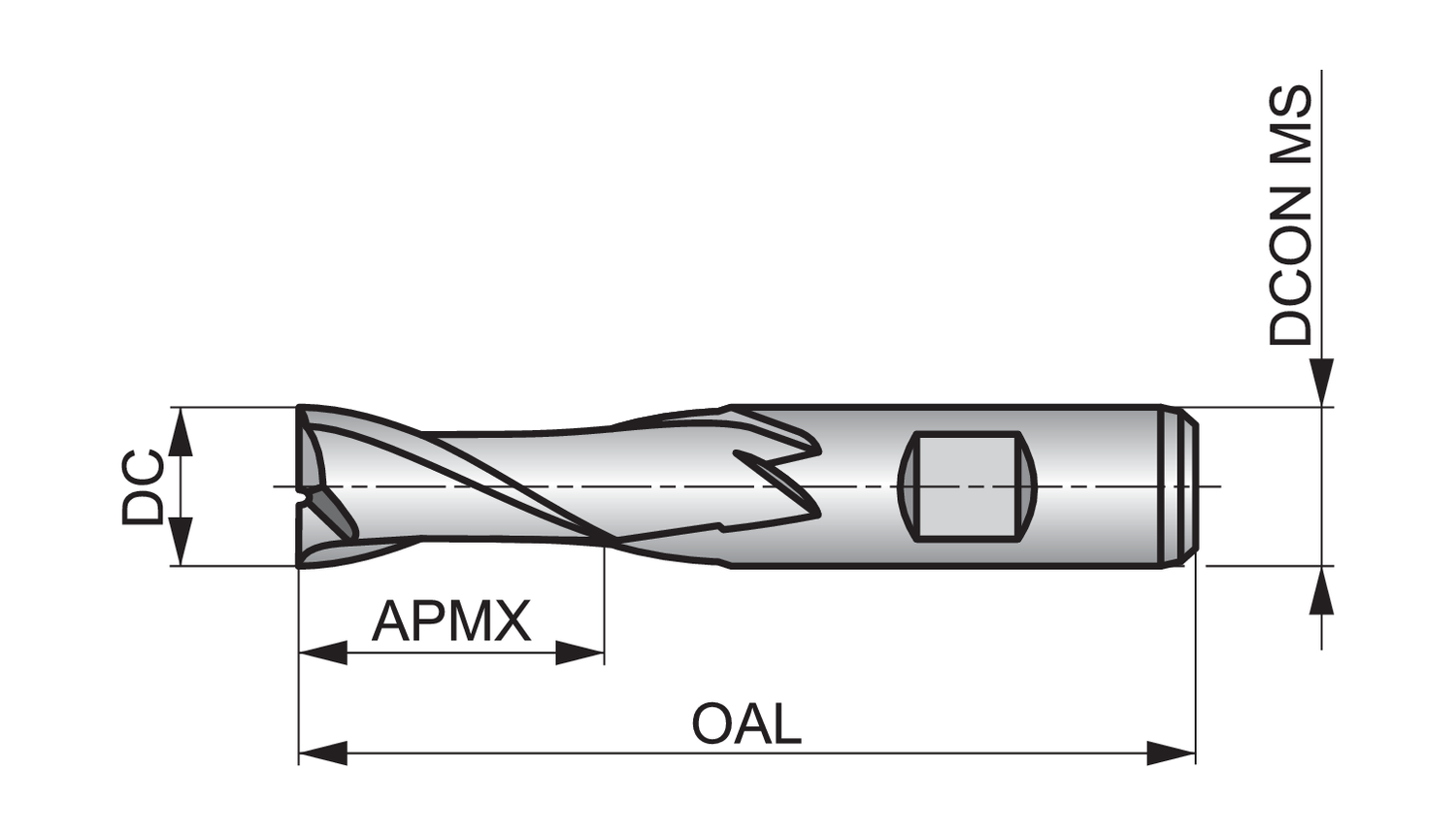

Connection diameter - fractional inch (DCON MS)

3/4

Connection diameter - inch (DCON MS)

0.75

Connection diameter - millimeter (DCON MS)

19.05

Cut length

Medium

Cutting diameter - fractional inch (DC)

1.1/8

Cutting diameter - inch (DC)

1.125

Cutting diameter - millimeter (DC)

28.58

Cutting diameter tolerance class (TCDC)

ANSI +.003/-.000

Depth of cut maximum - fractional inch (APMX)

1.5/8

EDP number

7647862

Flute count (NOF)

2

Flute helix angle (FHA)

30

Material

HSS

Material application

P - Steel and cast steel

MID number

7647862

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

C6011.1/8X3/4

Overall length - fractional inch (OAL)

4.1/4

Peripheral effective cutting edge count (ZEFP)

2

Radial rake angle (GAMF)

8

Shank

Cylindrical shank
