Dormer C6023/4 7647871 Keyway End Mill 2FL 3/4 inch

Name: Dormer C6023/4 7647871 Keyway End Mill 2FL 3/4 inch
Brand: Dormer Pramet
Price: 53.83 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 7647871

BRAND

Dormer Pramet

SKU

6077196

WEIGHT

0.432 lb

UOM

each

$53.83 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ANSI

Coating

Bright

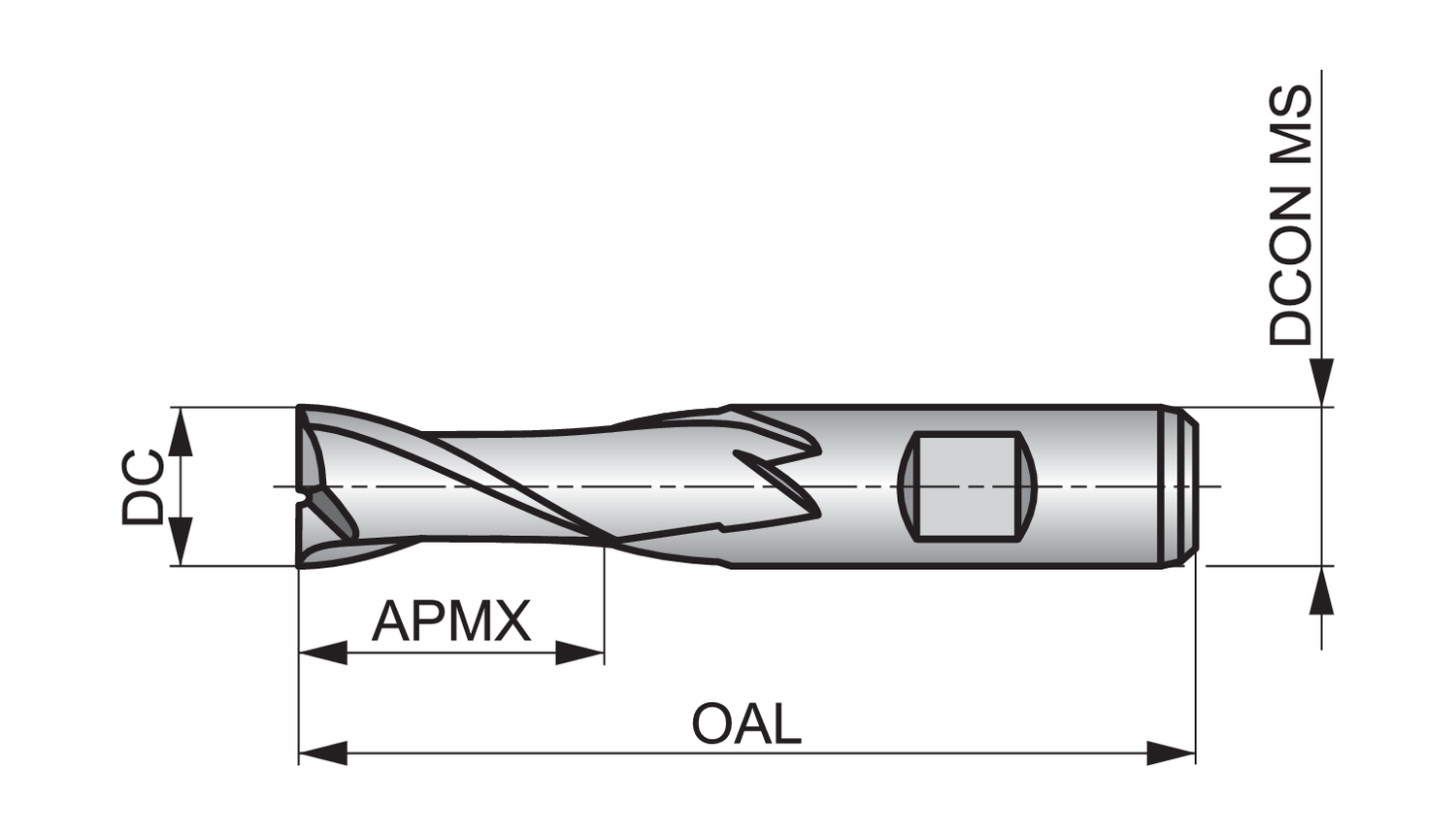

Connection diameter - fractional inch (DCON MS)

3/4

Connection diameter - inch (DCON MS)

0.75

Connection diameter - millimeter (DCON MS)

19.05

Cut length

Medium

Cutting diameter - fractional inch (DC)

3/4

Cutting diameter - inch (DC)

0.75

Cutting diameter - millimeter (DC)

19.05

Cutting diameter tolerance class (TCDC)

ANSI +.0001/-.0015

Depth of cut maximum - fractional inch (APMX)

1.5/16

EDP number

7647871

Flute count (NOF)

Flute helix angle (FHA)

Material

HSS

Material application

P - Steel and cast steel

MID number

7647871

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

C6023/4

Overall length - fractional inch (OAL)

3.7/8

Overall length - inch (OAL)

3.875

Overall length - millimeter (OAL)

98.43

Radial rake angle (GAMF)

Shank

Cylindrical shank

C602 2-flute milling cutters have an accurate diameter for milling standard keyway slots to close tolerance.

Good rigidity for milling slots comes from a regular length flute design, whilst the premium High Speed Steel used in manufacture provides excellent tool strength and great performance.

The bright finish ensures a clean and accurate finish by preventing workpiece material from sticking to the cutting surfaces of the tool.

C602 2-flute slot drills are very versatile and are suitable for plunging, ramping and profile milling in a range of materials including cast iron, steels and stainless steels
