Dormer C6093/4 7647933 3/4" slot drill roughing end mill, 4-flute, Cobalt High Speed Steel (HSS-E), ANSI standard, 30° helix angle. Designed for roughing applications in non-ferrous metals, steel, and cast steel. Features a 3/4" connection diameter and 1-5/8" maximum depth of cut.

Name: Dormer C6093/4 7647933 3/4" slot drill roughing end mill, 4-flute, Cobalt High Speed Steel (HSS-E), ANSI standard, 30° helix angle. Designed for rough
Brand: Dormer Pramet
Price: 130.06 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 7647933

BRAND

Dormer Pramet

SKU

6077257

WEIGHT

0.396 lb

UOM

each

$130.06 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ANSI

Coating

TiCN

Coating property (CTP)

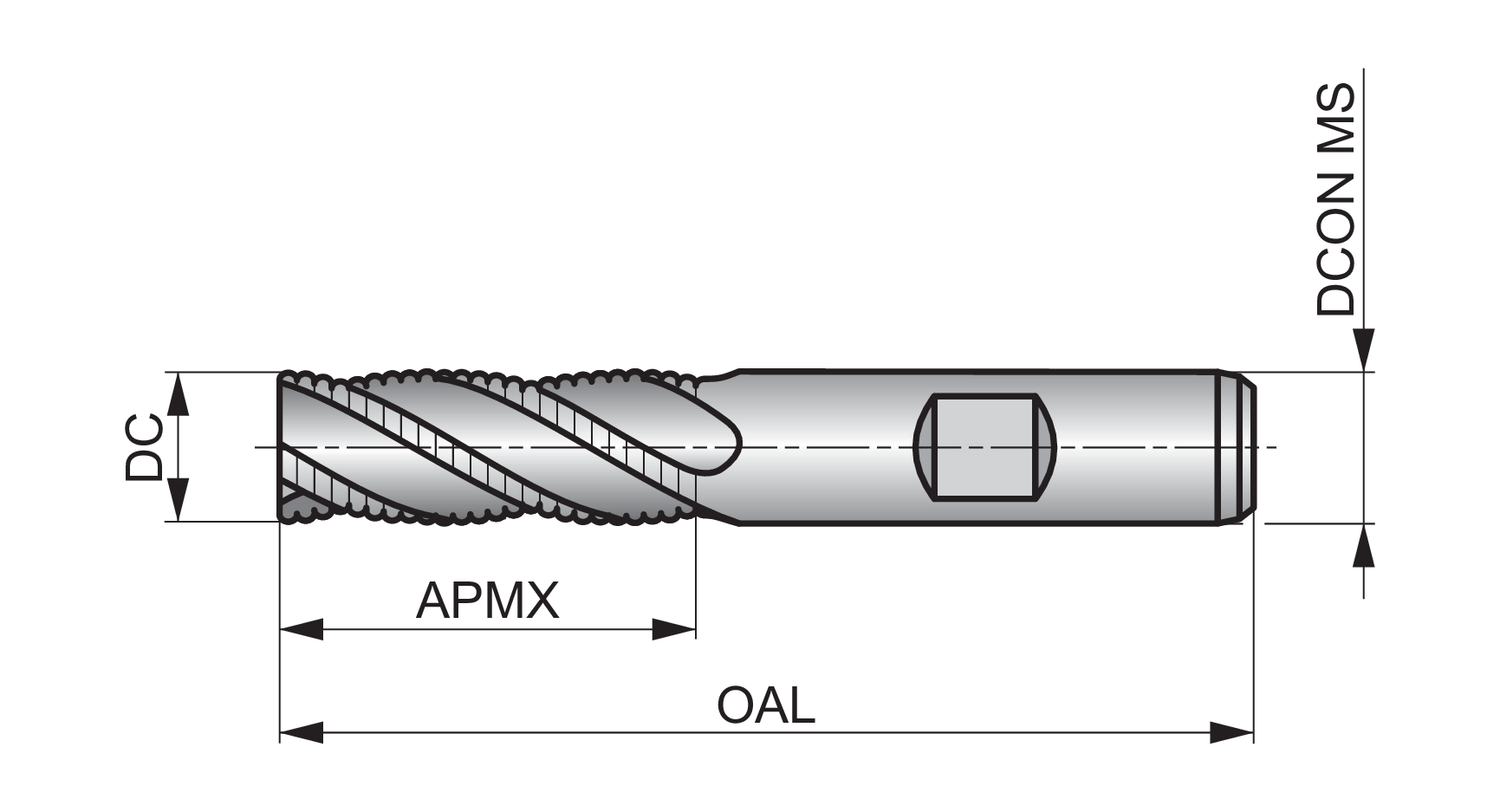

Connection diameter - fractional inch (DCON MS)

3/4

Connection diameter - inch (DCON MS)

0.75

Connection diameter - millimeter (DCON MS)

19.05

Cut length

Medium

Cutting diameter - fractional inch (DC)

3/4

Cutting diameter - inch (DC)

0.75

Cutting diameter - millimeter (DC)

19.05

Cutting diameter tolerance class (TCDC)

ANSI +.005/-.000

Depth of cut maximum - fractional inch (APMX)

1.5/8

EDP number

7647933

Flute count (NOF)

Flute helix angle (FHA)

Material

HSS-E

Material application

N - Non-ferrous metals, P - Steel and cast steel

MID number

7647933

Mill Profile

HRA - Fine Pitch Asymmetrical Rounded Profile Chipbreaker

Ordering code ANSI

C6093/4

Overall length - fractional inch (OAL)

3.7/8

Overall length - inch (OAL)

3.875

Overall length - millimeter (OAL)

98.43

Radial rake angle (GAMF)

Shank

Cylindrical shank

Manufactured from High Speed cobalt for excellent performance, tool strength and wear resistance, C609 roughing end mills are suitable for roughing when plunging, ramping and profile milling in steels, cast iron and stainless steels.

They have a 30 degree helix to improve performance and reduce vibration when used in CNC machines and a standard flute length with a fine pitch profile which will break chips for greater efficiency in roughing applications.

C609 roughing end mills come with a titanium carbo nitride coating which increases the life of the cutter and improves performance when milling hard and abrasive materials
