Dormer C6141/8 7647965 End Mill - Double End 4FL 1/8 inch
MODEL 7647965
$36.15 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ANSI
Coating
Bright

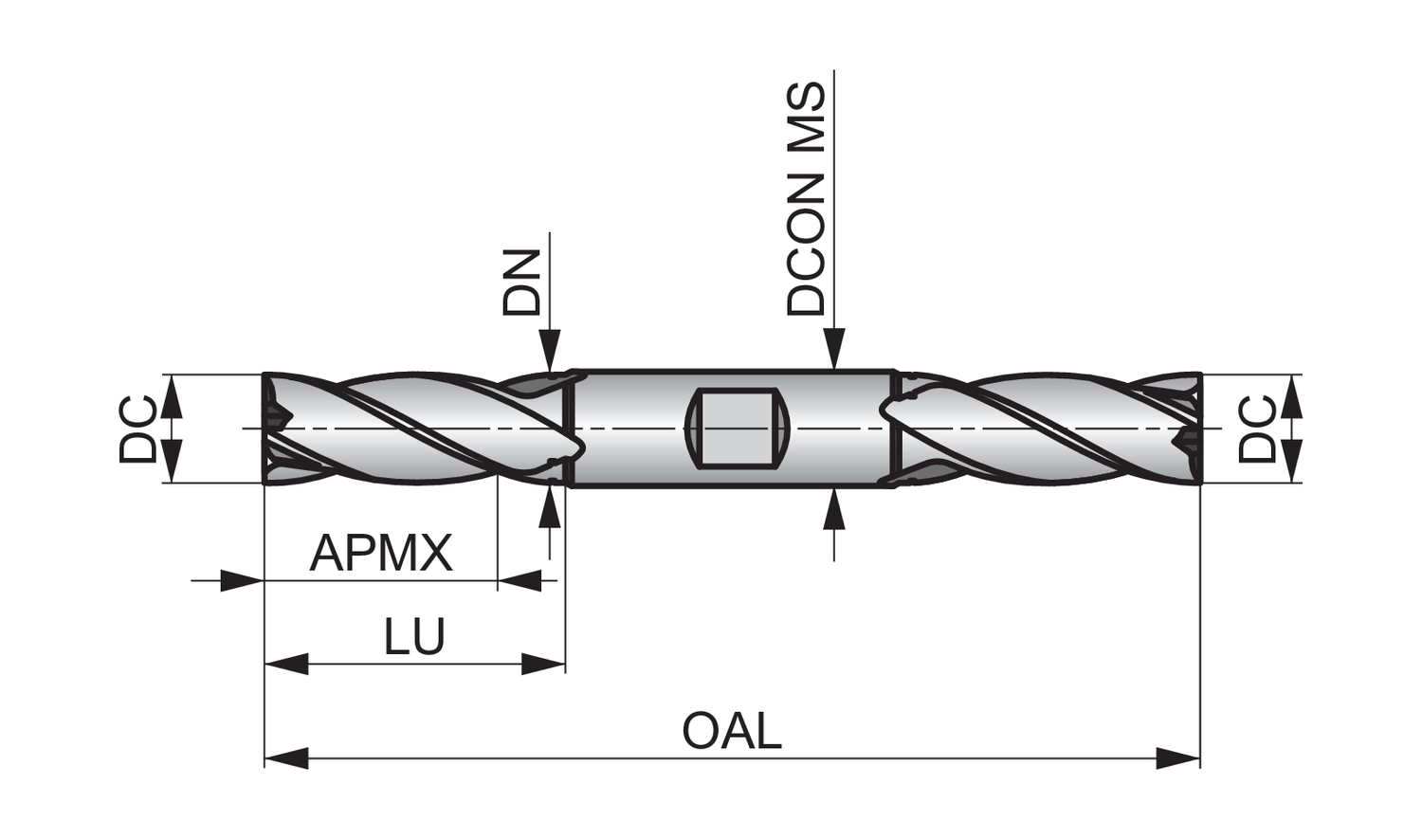

Connection diameter - fractional inch (DCON MS)
3/8
Connection diameter - inch (DCON MS)
0.375
Connection diameter - millimeter (DCON MS)
9.53
Cut length
Medium
Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - inch (DC)
0.125
Cutting diameter - millimeter (DC)
3.18
Cutting diameter tolerance class (TCDC)
ANSI +.0000/-.0015
Depth of cut maximum - fractional inch (APMX)
3/8
EDP number
7647965
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HSS
Material application
N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
7647965
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C6141/8
Overall length - fractional inch (OAL)
3.1/16
Overall length - inch (OAL)
3.0625
Overall length - millimeter (OAL)
77.79
Radial rake angle (GAMF)
8
Shank
Cylindrical shank
C614 4-flute end mills are double ended, providing two milling cutters in one tool for increased economy.
They have regular length flutes which will give good rigidity for profile milling and are suitable for ramping and profile milling in steels, cast iron and stainless steels.
The premium High Speed Steel used in manufacture means you will get great performance coupled with tool strength, whilst the bright finish prevents workpiece material from sticking to the cutting surfaces of the tool so you get a clean and accurate result
