Dormer C6151/4 7647975 End Mill ANSI 1/4 inch

Name: Dormer C6151/4 7647975 End Mill ANSI 1/4 inch
Brand: Dormer Pramet
Price: 29.71 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 7647975

BRAND

Dormer Pramet

SKU

6077302

WEIGHT

0.000 lb

UOM

each

$29.71 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ANSI

Coating

Bright

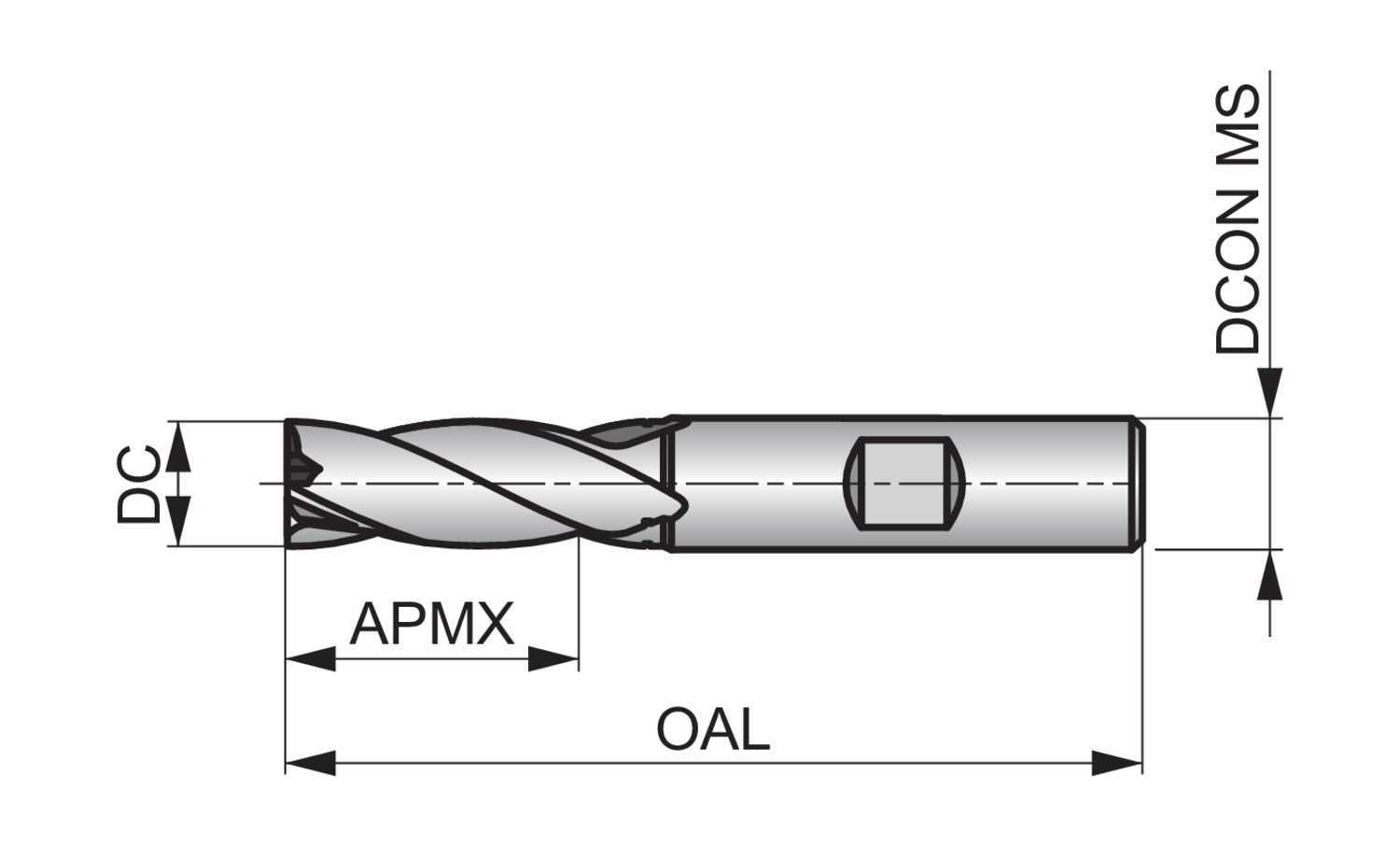

Connection diameter - fractional inch (DCON MS)

3/8

Connection diameter - inch (DCON MS)

0.375

Connection diameter - millimeter (DCON MS)

9.53

Cut length

Medium

Cutting diameter - fractional inch (DC)

1/4

Cutting diameter - inch (DC)

0.25

Cutting diameter - millimeter (DC)

6.35

Cutting diameter tolerance class (TCDC)

ANSI +.003/-.000

Depth of cut maximum - fractional inch (APMX)

5/8

EDP number

7647975

Flute count (NOF)

Flute helix angle (FHA)

Material

HSS

Material application

N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys

MID number

7647975

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

C6151/4

Overall length - fractional inch (OAL)

2.7/16

Peripheral effective cutting edge count (ZEFP)

Radial rake angle (GAMF)

Shank

Cylindrical shank

Part of Dormer’s extensive milling cutter range, C615 4-flute end mills have a bright finish to prevent workpiece material from sticking to the cutting surfaces of the tool so you get an accurate, clean result.

Manufactured from premium High Speed Steel for excellent tool strength and performance, the tools have regular length flutes which will give good rigidity for profile milling, whilst the 30 degree helix is designed to reduce vibration and improve performance when used in CNC machines.

C615 4-flute end mills are very versatile and can be used for ramping and profile milling in steels, cast iron and stainless steels
