Dormer C6181 7648016 1" slot drill, 4-flute, Cobalt High Speed Steel (HSS-E), ANSI standard, 30° helix angle. Designed for slotting and profiling in non-ferrous metals, steel, cast steel, and high-temperature alloys. 1" shank diameter, 2" maximum depth of cut.

Name: Dormer C6181 7648016 1" slot drill, 4-flute, Cobalt High Speed Steel (HSS-E), ANSI standard, 30° helix angle. Designed for slotting and profiling in n
Brand: Dormer Pramet
Price: 158.33 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 7648016

BRAND

Dormer Pramet

SKU

6077335

WEIGHT

0.836 lb

UOM

each

$158.33 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ANSI"

Coating

Bright

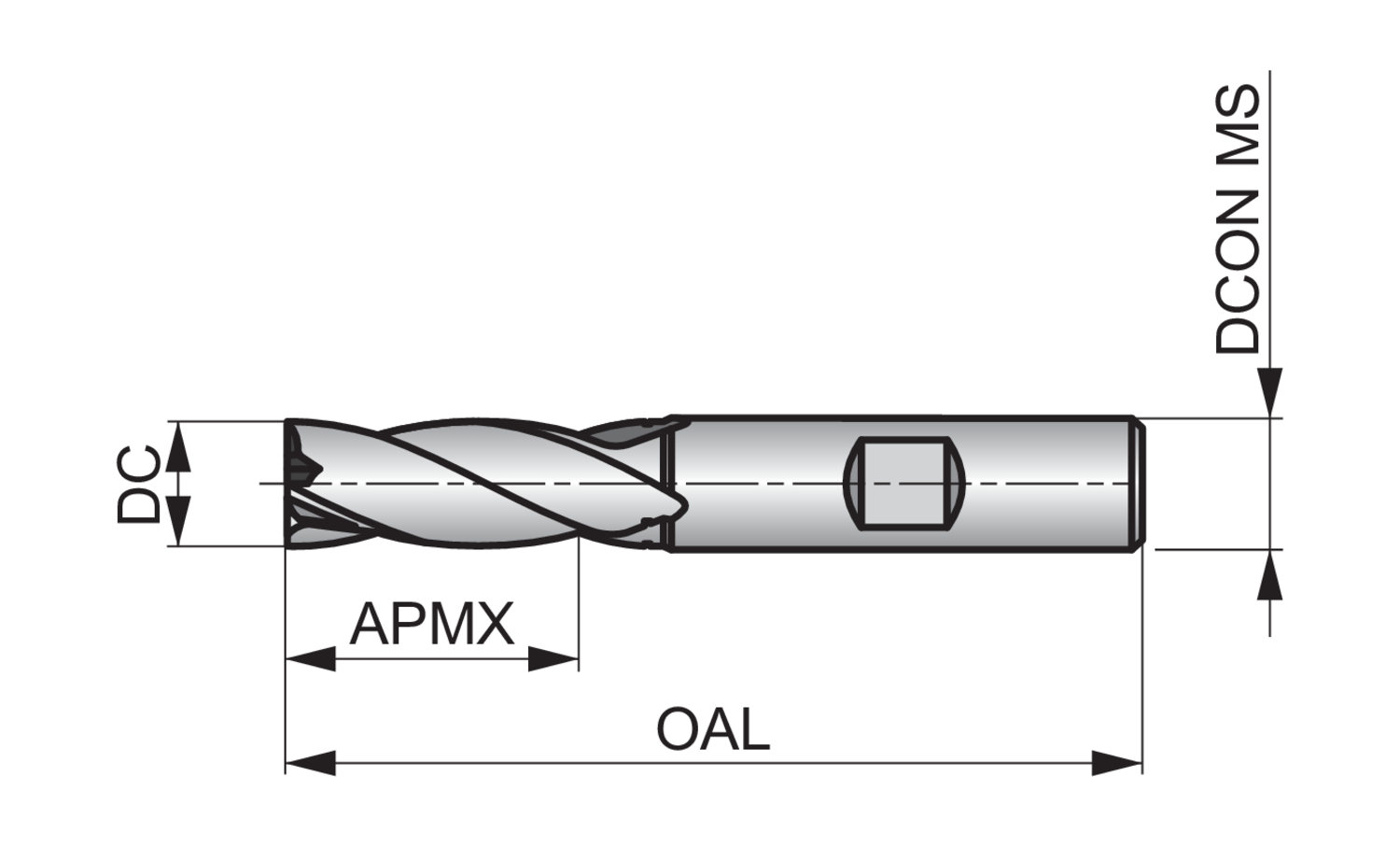

Connection diameter - fractional inch (DCON MS)

Connection diameter - millimeter (DCON MS)

25.4

Cut length

Medium

Cutting diameter - fractional inch (DC)

Cutting diameter - inch (DC)

Cutting diameter - millimeter (DC)

25.4

Cutting diameter tolerance class (TCDC)

ANSI +.003/-.000

Depth of cut maximum - fractional inch (APMX)

EDP number

7648016

Flute count (NOF)

Flute helix angle (FHA)

Material

HSS-E

Material application

N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys

MID number

7648016

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

C6181

Overall length - fractional inch (OAL)

4.1/2

Overall length - inch (OAL)

4.5

Overall length - millimeter (OAL)

114.3

Radial rake angle (GAMF)

Shank

Cylindrical shank

C618 4-flute end mills from Dormer are very versatile and can be used for ramping and profile milling in steels, stainless steels and cast iron.

With a 30 degree helix to reduce vibration and improve performance when used in CNC machines, the tools are manufactured from premium High Speed cobalt, which provides excellent wear resistance, tool strength and performance.

With a bright finish to prevent workpiece material from sticking to the cutting surfaces of the tools, you can be certain of a clean and accurate result.

C618 4-flute end mills have a regular flute length to give you the rigidity needed for profile milling
