Dormer C80016.0X8.0 5985495 T-slot Cutter 16.00 mm x 8.0 mm
MODEL 5985495
$170.24 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 851
Coating
Bright

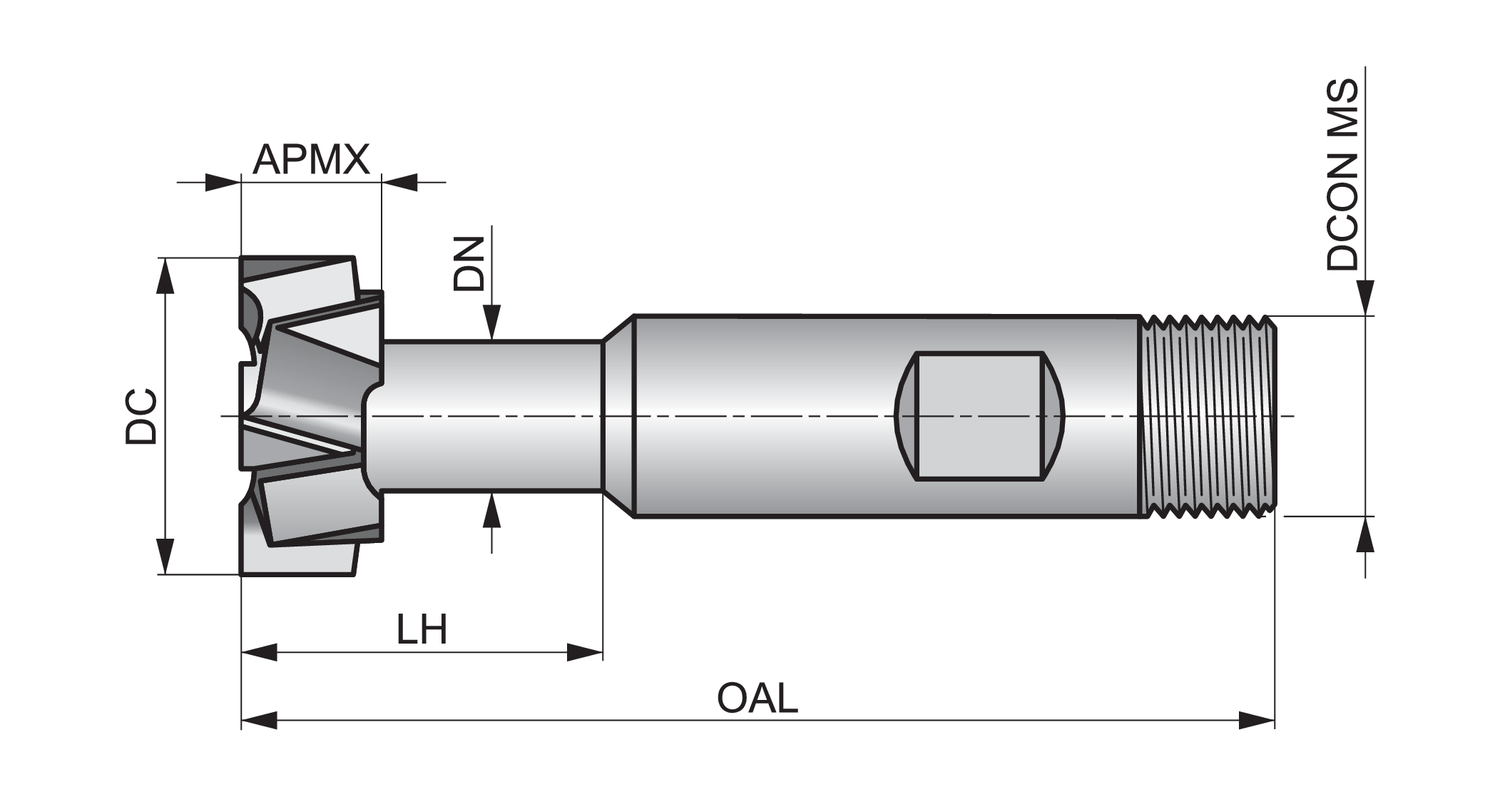

Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
d11
Cutting width - inch (CW)
0.315
Cutting width - millimeter (CW)
8
Depth of cut maximum - inch (APMX)
0.315
Depth of cut maximum - millimeter (APMX)
8
EDP number
74459
Flute count (NOF)
6
Flute helix angle (FHA)
15
Head length - millimeter (LH)
20
Material
HSS-E
MID number
5985495
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.2756
Neck diameter - millimeter (DN)
7
Ordering code ANSI
C80016.0X8.0
Overall length - inch (OAL)
2.4409
Overall length - millimeter (OAL)
62
Peripheral effective cutting edge count (ZEFP)
6
Radial rake angle (GAMF)
10
Shank
Cylindrical shank DIN 1835 B / D
Dormer’s C800 T-slot milling cutter is suitable for milling T-slots in aluminium, stainless steels, steels and cast iron.
For accurate and stable holding in all types of tool holder, the C800 has a combination shank and is capable of milling T-slots to accept standard T-bolts.
The C800 is manufactured from High Speed cobalt for great wear resistance, performance and tool strength, whilst the bright finish prevents workpiece material from adhering to the cutting edges of the tool, so you get a clean and accurate result
