Dormer C82210.5X3.0 5985956 slot drill, 10.50mm cutting diameter, 3.0mm depth of cut, 8-flute, 10° helix angle, Cobalt High Speed Steel (HSS-E), DIN 850 standard. Suitable for K (cast iron), M (stainless steel), N (non-ferrous metals), P (steel and cast steel), and S (high-temperature alloys) material applications.

Basic Standard

DIN 850

Coating

Bright

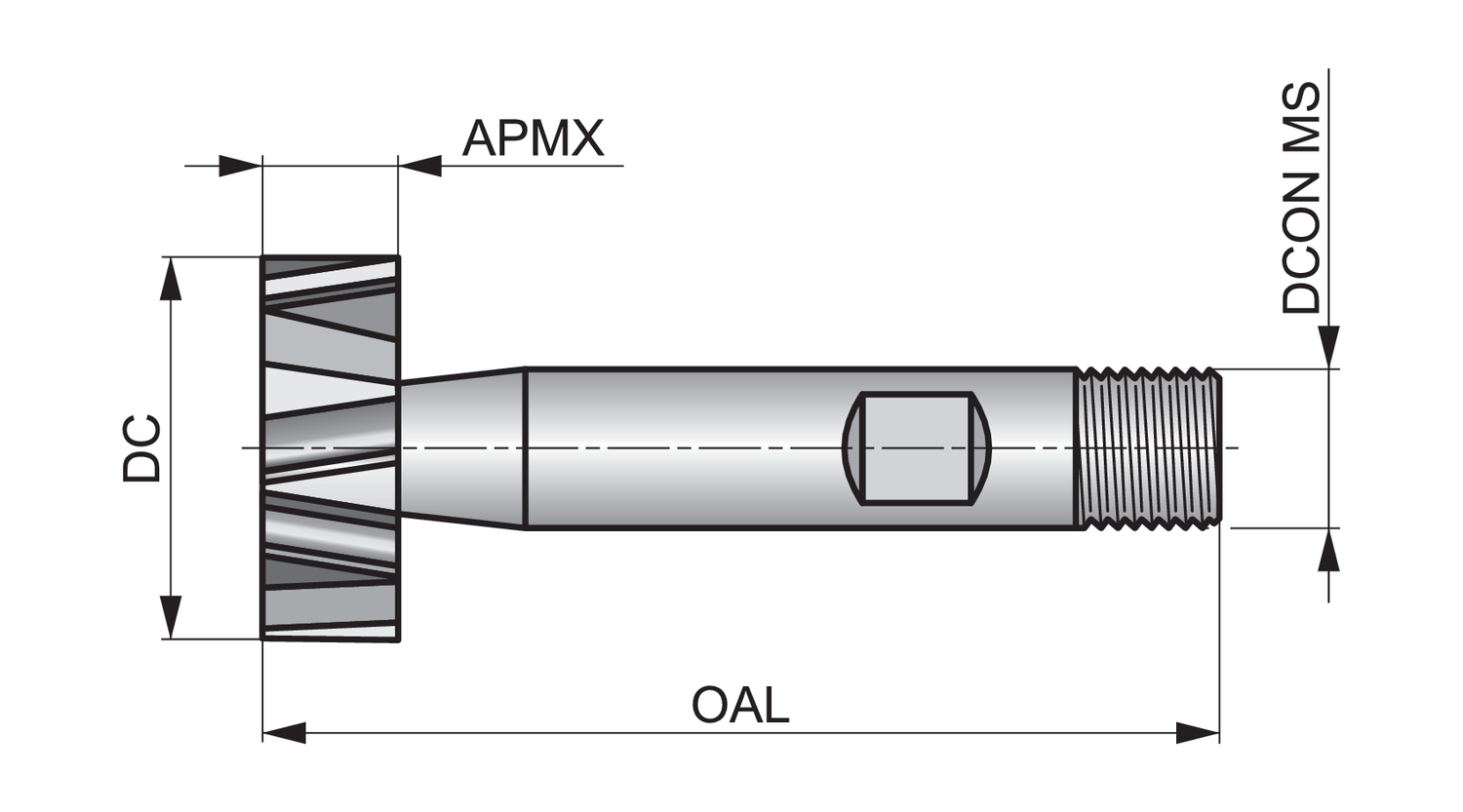

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

6

Cutting diameter - inch (DC)

0.4134

Cutting diameter - millimeter (DC)

10.5

Cutting diameter tolerance class (TCDC)

h11

Cutting width - millimeter (CW)

0

Depth of cut maximum - inch (APMX)

0.1181

Depth of cut maximum - millimeter (APMX)

3

EDP number

74640

Flute count (NOF)

8

Flute helix angle (FHA)

10

Material

HSS-E

MID number

5985956

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

C82210.5X3.0

Overall length - inch (OAL)

1.9685

Overall length - millimeter (OAL)

50

Peripheral effective cutting edge count (ZEFP)

8

Radial rake angle (GAMF)

10

Shank

Cylindrical shank DIN 1835 B / D
