Dormer C83020.0X45 5985801 dovetail cutter, 20mm cutting diameter, 5mm depth of cut, 10 flutes, 45° tool cutting edge angle, 12mm connection diameter with h6 tolerance. Cobalt High Speed Steel (HSS-E) construction per DIN 1833 C standard. Suitable for K (cast iron), M (stainless steel), N (non-ferrous metals), P (steel and cast steel), and S (high-temperature alloys) material applications. 0° helix and radial rake angles.

Basic Standard

DIN 1833 C

Coating

Bright

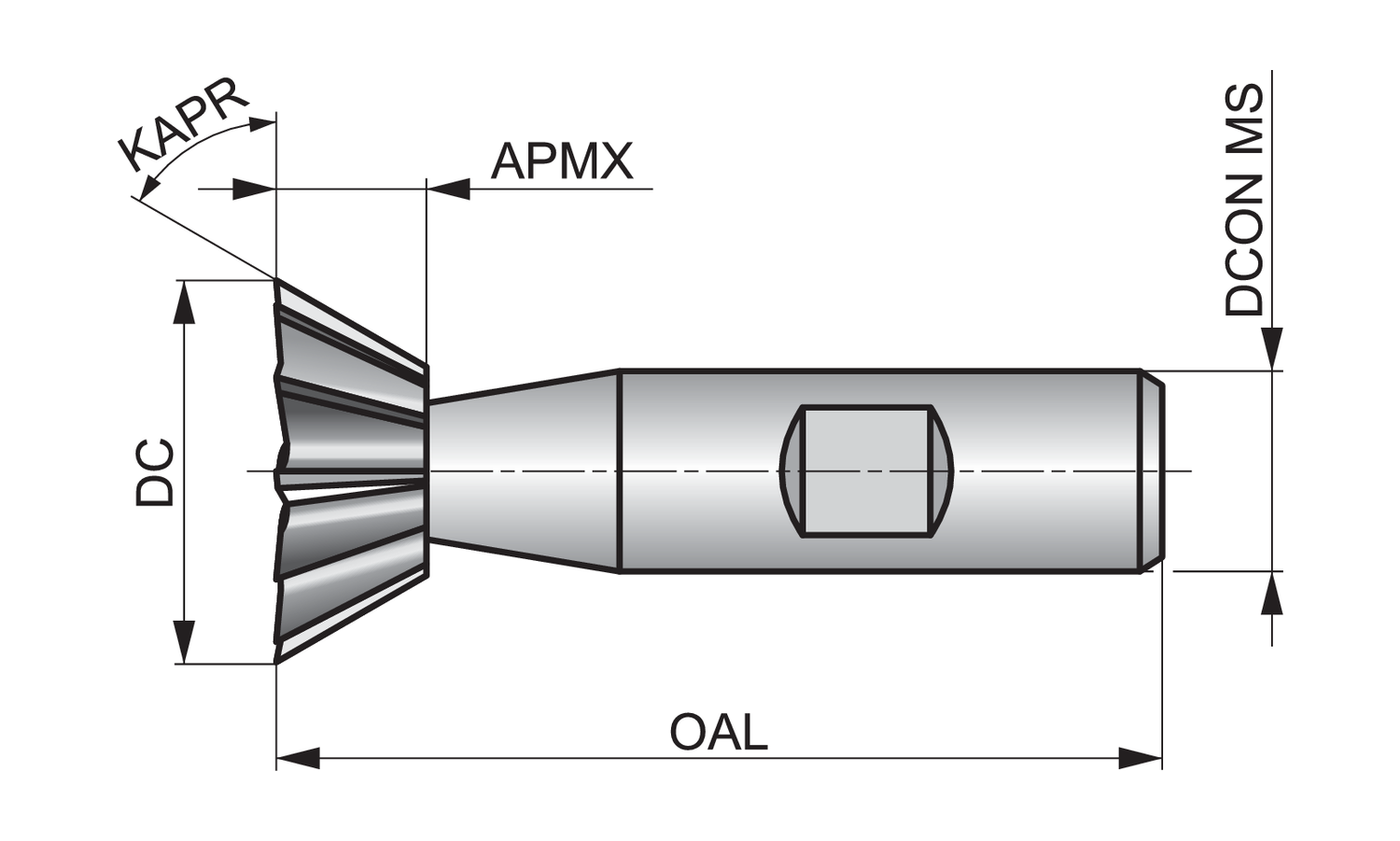

Connection diameter - inch (DCON MS)

0.4724

Connection diameter - millimeter (DCON MS)

12

Connection diameter tolerance machine side (TCDCONMS)

h6

Cutting diameter - inch (DC)

0.7874

Cutting diameter - millimeter (DC)

20

Cutting diameter tolerance class (TCDC)

js16

Depth of cut maximum - inch (APMX)

0.1969

Depth of cut maximum - millimeter (APMX)

5

EDP number

75036

Flute count (NOF)

10

Flute helix angle (FHA)

0

Material

HSS-E

MID number

5985801

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

C83020.0X45

Overall length - inch (OAL)

2.4803

Overall length - millimeter (OAL)

63

Peripheral effective cutting edge count (ZEFP)

10

Radial rake angle (GAMF)

0

Shank

Weldon shank DIN 1835B

Tool cutting edge angle (KAPR)

45
