Dormer D42063.0 5985367 Shell End Mill N DIN 1880 63.00 mm x 40.0 mm
MODEL 5985367
$429.80 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 1880
Coating
TiCN
Coating property (CTP)
1

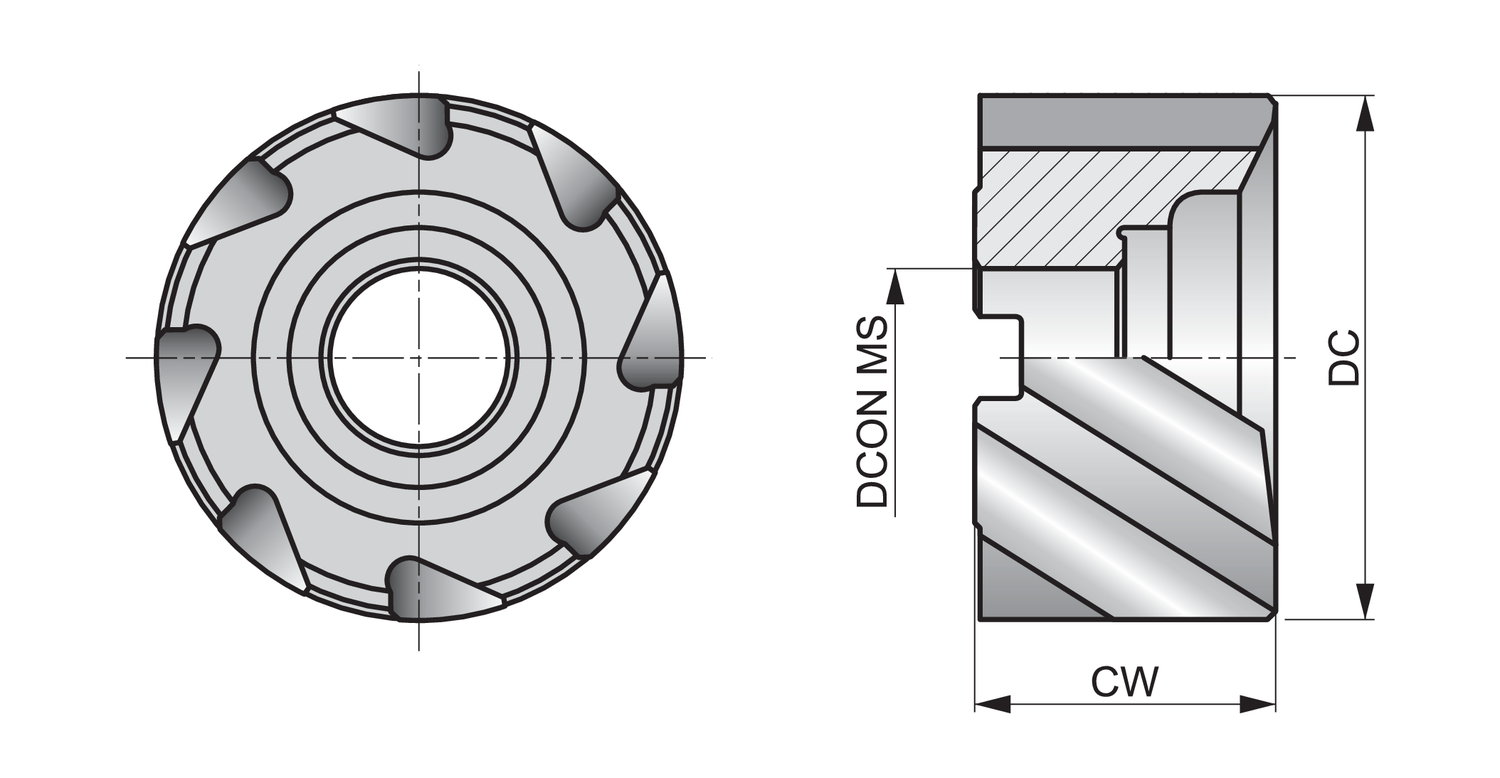

Connection diameter - inch (DCON MS)
1.063
Connection diameter - millimeter (DCON MS)
27
Cutting diameter - inch (DC)
2.4803
Cutting diameter - millimeter (DC)
63
Cutting diameter tolerance class (TCDC)
js16
Cutting width - inch (CW)
1.5748
Cutting width - millimeter (CW)
40
EDP number
77719
Flute count (NOF)
8
Flute helix angle (FHA)
30
Material
HSS-E
MID number
5985367
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
D42063.0
Peripheral effective cutting edge count (ZEFP)
8
Possible use
Medium machining
Primary use
Finishing
Radial rake angle (GAMF)
12
D420 shell end mill bore cutters have standard bore sizes suitable for standard shell mill holders.
They can be used for slitting and cutting in steels, stainless steels, aluminium and cast iron and are made from High Speed cobalt to give you great wear resistance coupled with excellent tool strength and performance.
They have a titanium carbo nitride coating which promotes longer cutter life and also improves performance when milling hard and abrasive materials.
D420 shell end mill bore cutters come in a large range of sizes, with diameters up to 100 mm available
