Dormer C2994.0 5984191 End Mill 4.00 mm
MODEL 5984191
$32.32 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
Bright

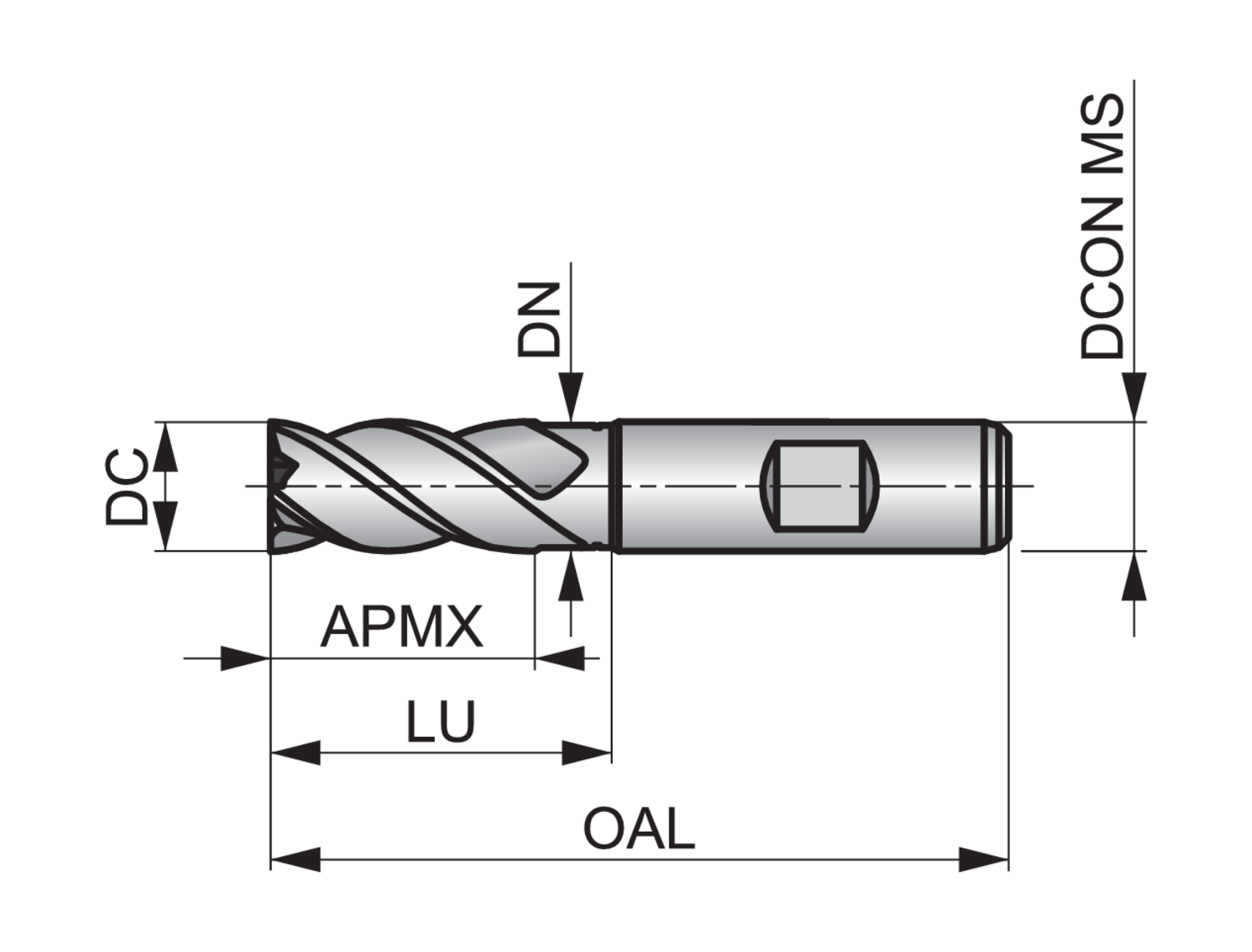

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Cut length
Short
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
k10
Depth of cut maximum - inch (APMX)
0.4331
Depth of cut maximum - millimeter (APMX)
11
EDP number
64436
Flute count (NOF)
3
Flute helix angle (FHA)
45
Material
HSS-E-PM
MID number
5984191
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C2994.0
Overall length - inch (OAL)
2.1654
Overall length - millimeter (OAL)
55
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
C299 4-flute milling cutters can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron and are manufactured from the best powder metal high speed cobalt, providing great performance and a long tool life.
They have a bright finish which ensures a clean, accurate result by stopping workpiece material from sticking to the cutting edges of the tool.
The medium length flute provides high rigidity for general profile milling applications.
Finally, the 45 degree helix means C299 milling cutters are designed for high performance when machining heat resistant materials on CNC machines
