Dormer C30520.0 5984353 slot drill, 20mm cutting diameter, 3-flute, 30° helix, powder metallurgy cobalt HSS (HSS-E-PM), DIN 844 K standard. 20mm shank with h6 tolerance, 38mm max depth of cut. For non-ferrous metals, steel, cast steel, and high-temperature alloys.
MODEL 5984353
$109.96 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
Bright

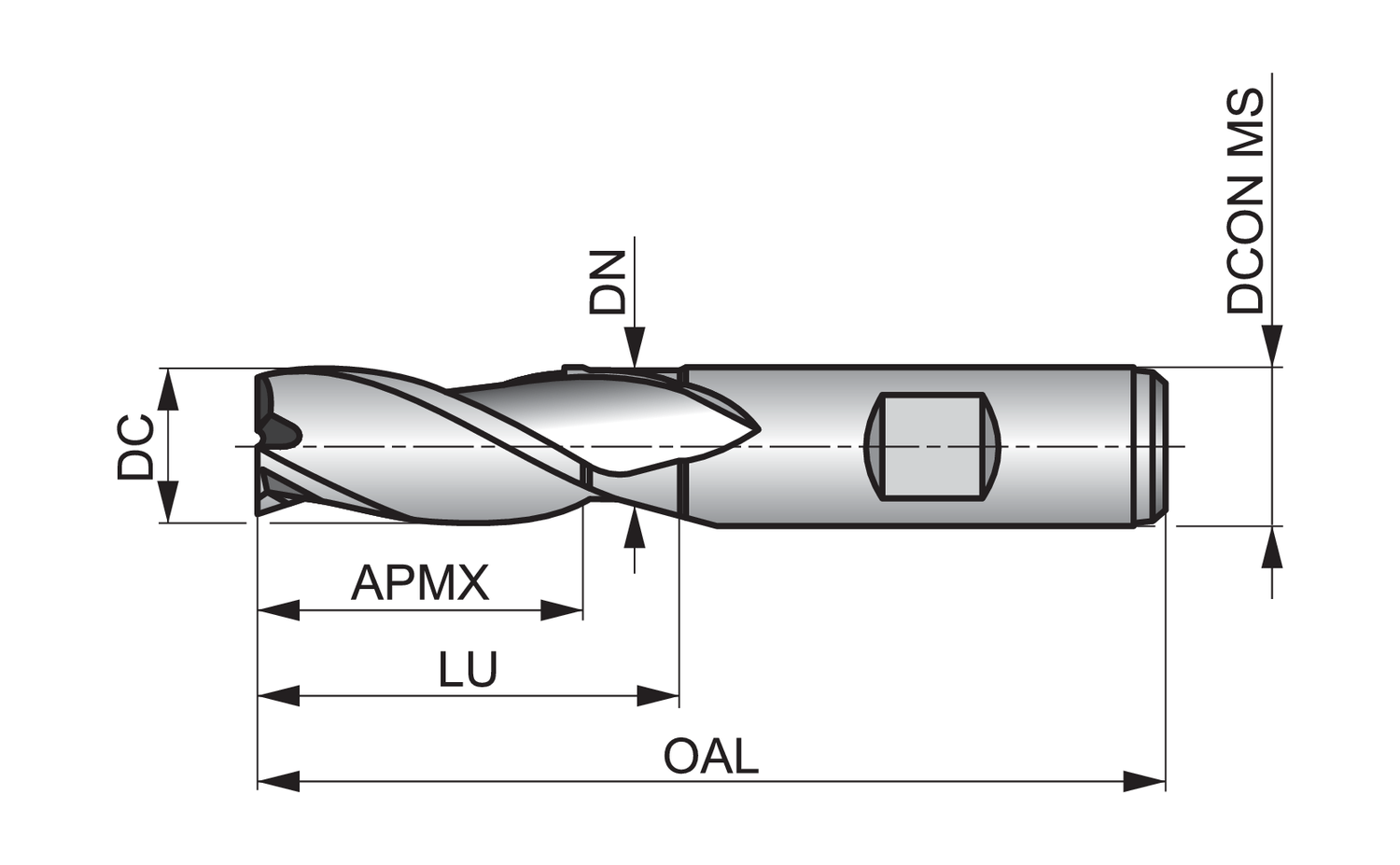

Connection diameter - inch (DCON MS)
0.7874
Connection diameter - millimeter (DCON MS)
20
Connection diameter tolerance machine side (TCDCONMS)
h6
Cut length
Short
Cutting diameter - inch (DC)
0.7874
Cutting diameter - millimeter (DC)
20
Cutting diameter tolerance class (TCDC)
e8
Depth of cut maximum - inch (APMX)
1.4961
Depth of cut maximum - millimeter (APMX)
38
EDP number
572344
Flute count (NOF)
3
Flute helix angle (FHA)
30
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys
MID number
5984353
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.7677
Neck diameter - millimeter (DN)
19.5
Ordering code ANSI
C30520.0
Overall length - inch (OAL)
4.0945
Overall length - millimeter (OAL)
104
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
53.5
The medium length flute design of C305 3-flute milling cutters provides high rigidity for milling standard slots whilst the accurate diameter means they are capable of milling standard keyway slots to a P9 tolerance.
With a bright finish to prevent workpiece material from sticking to the cutting edges of the tool, C305 milling cutters will give you a clean, accurate finish and are very versatile products – suitable for plunging, ramping and profile milling of steels, stainless steels and cast iron.
C305 milling cutters are manufactured from powder metal High Speed cobalt for longer tool life and superior performance
