Dormer C35218.0 5984081 18mm cutting diameter, 3-flute slot drill made from powder metallurgy cobalt HSS (HSS-E-PM), DIN 844 K standard, 30° helix angle, 12° radial rake, 32mm max depth of cut, 16mm shank with h6 tolerance. Suitable for cast iron, non-ferrous metals, steel, cast steel, and high-temperature alloys.

Basic Standard

DIN 844 K

Coating

ALCRONA

Coating property (CTP)

1

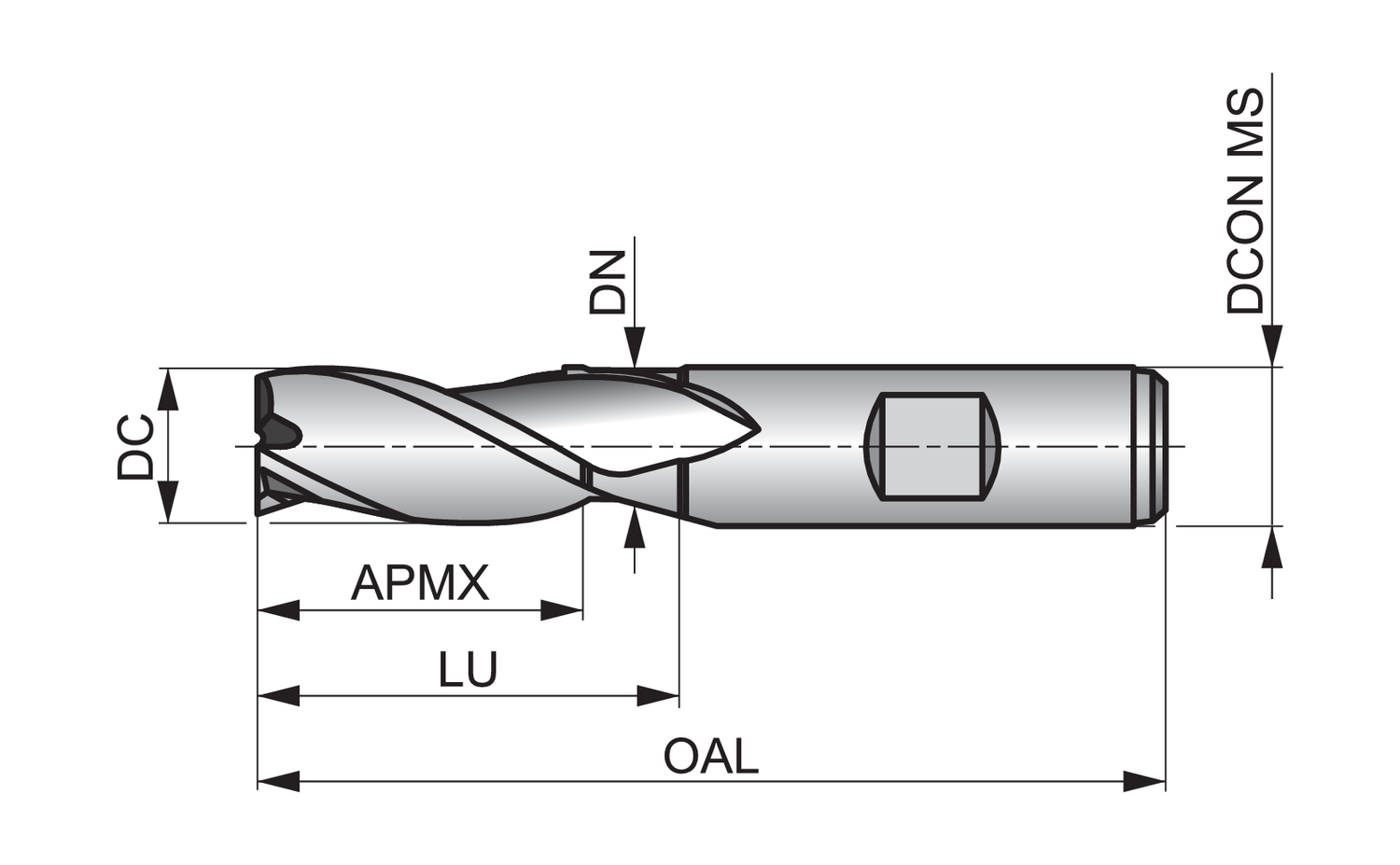

Connection diameter - inch (DCON MS)

0.6299

Connection diameter - millimeter (DCON MS)

16

Connection diameter tolerance machine side (TCDCONMS)

h6

Cut length

Short

Cutting diameter - inch (DC)

0.7087

Cutting diameter - millimeter (DC)

18

Cutting diameter tolerance class (TCDC)

e8

Depth of cut maximum - inch (APMX)

1.2598

Depth of cut maximum - millimeter (APMX)

32

EDP number

573006

Flute count (NOF)

3

Flute helix angle (FHA)

30

Material

HSS-E-PM

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys

MID number

5984081

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Neck diameter - inch (DN)

0.6102

Neck diameter - millimeter (DN)

15.5

Ordering code ANSI

C35218.0

Overall length - inch (OAL)

3.622

Overall length - millimeter (OAL)

92

Peripheral effective cutting edge count (ZEFP)

3

Radial rake angle (GAMF)

12

Shank

Weldon shank DIN 1835B

Usable Length - millimeter (LU)

43.5
