Dormer C35311.0 5983936 11mm cutting diameter slot drill with 3 flutes, 30° helix angle, and 12mm shank diameter. Made from powder metallurgy cobalt HSS (HSS-E-PM) for high wear resistance. DIN 327 D standard. Suitable for cast iron, non-ferrous metals, steel, cast steel, and high-temperature alloys. 13mm maximum depth of cut.

Basic Standard

DIN 327 D

Coating

ALCRONA

Coating property (CTP)

1

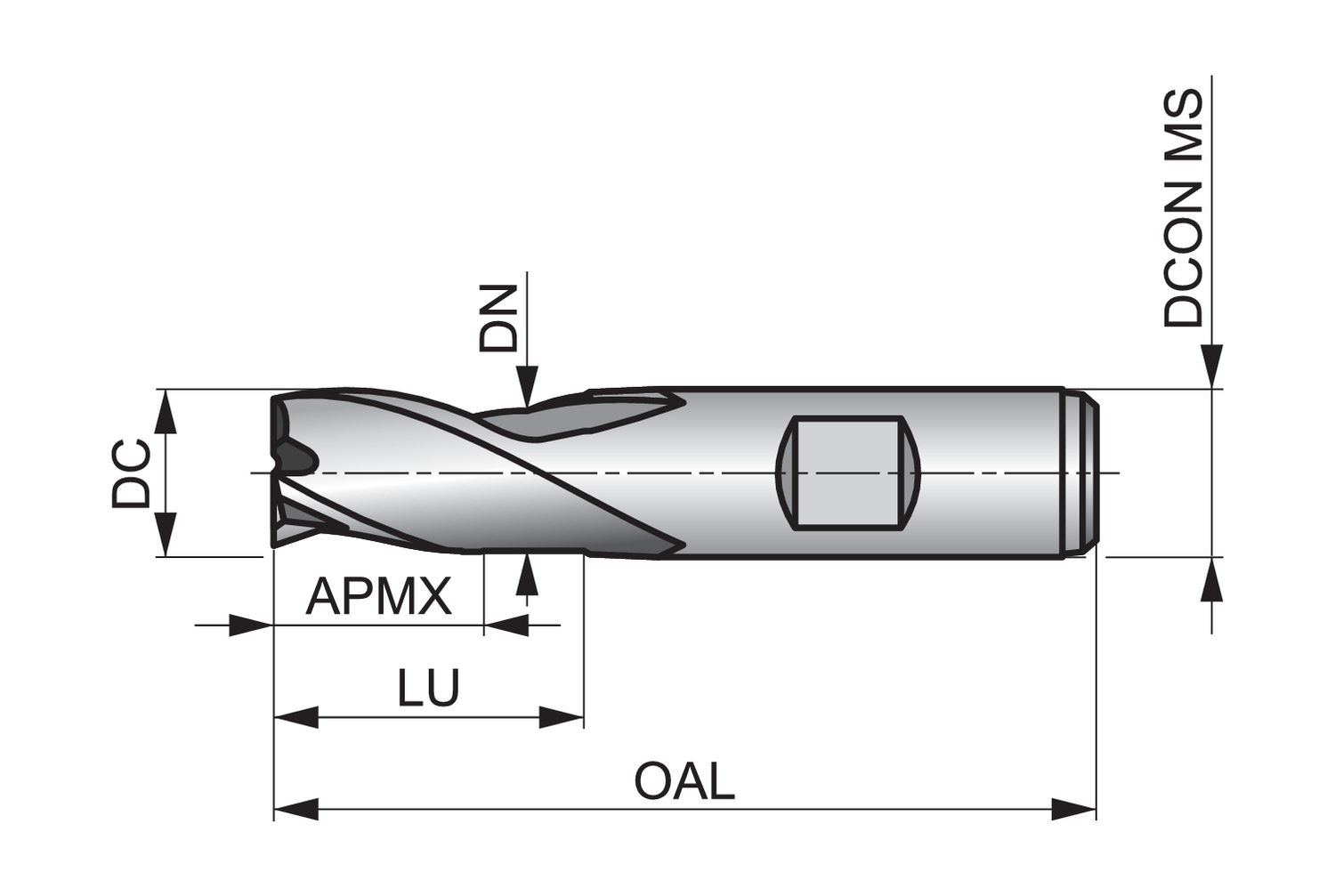

Connection diameter - inch (DCON MS)

0.4724

Connection diameter - millimeter (DCON MS)

12

Connection diameter tolerance machine side (TCDCONMS)

h6

Cut length

Extra short

Cutting diameter - inch (DC)

0.4331

Cutting diameter - millimeter (DC)

11

Cutting diameter tolerance class (TCDC)

e8

Depth of cut maximum - inch (APMX)

0.5118

Depth of cut maximum - millimeter (APMX)

13

EDP number

573082

Flute count (NOF)

3

Flute helix angle (FHA)

30

Material

HSS-E-PM

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel, S - High-temperature alloys

MID number

5983936

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

C35311.0

Overall length - inch (OAL)

2.7559

Overall length - millimeter (OAL)

70

Peripheral effective cutting edge count (ZEFP)

3

Radial rake angle (GAMF)

12

Shank

Weldon shank DIN 1835B
