Image for Illustration purposes only. Actual product may vary
Dormer C9074.0 5985685 End Mill 4.00 mm
MODEL 5985685
$50.07 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 K
Coating
ALCRONA
Coating property (CTP)
1

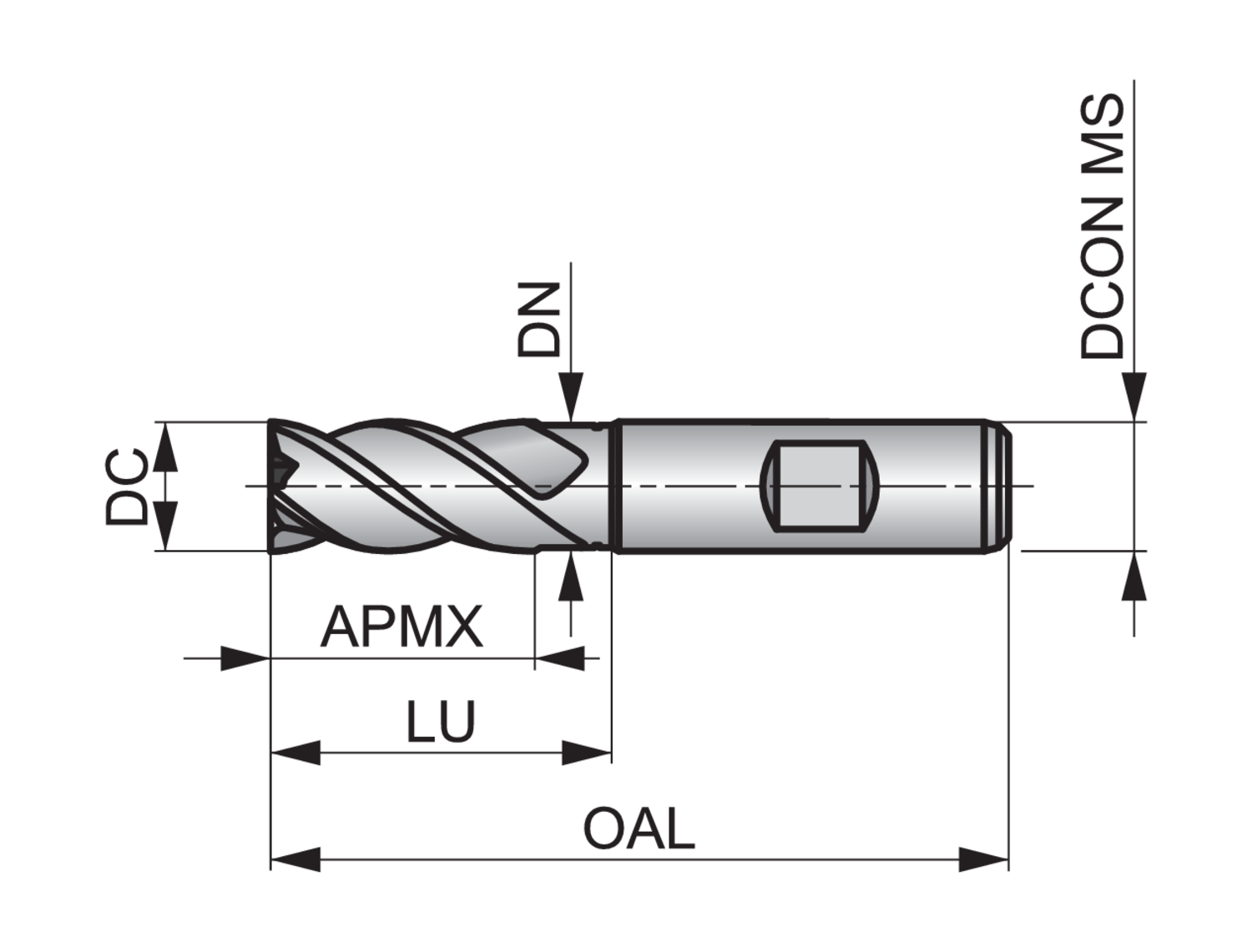

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Cut length
Short
Cutting diameter - inch (DC)
0.1575
Cutting diameter - millimeter (DC)
4
Cutting diameter tolerance class (TCDC)
k10
Depth of cut maximum - inch (APMX)
0.4331
Depth of cut maximum - millimeter (APMX)
11
EDP number
75944
Flute count (NOF)
3
Flute helix angle (FHA)
45
Material
HSS-E-PM
MID number
5985685
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
C9074.0
Overall length - inch (OAL)
2.1654
Overall length - millimeter (OAL)
55
Peripheral effective cutting edge count (ZEFP)
3
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
C907 4- flute end mills have a special Alcrona coating which in.]creases the service life of the tool and improves performance milling materials which are difficult to machine.
Thanks to the 45 degree helix, you will see great performance when machining heat resistant materials on CNC machines, whilst the medium length flute design gives greater rigidity for general milling applications.
C907 end mills can be used for ramping, profile milling and plunging in steels, stainless steels and cast iron
