Image for Illustration purposes only. Actual product may vary
Dormer C92016.0 5985723 End Mill N 844 L 16.00 mm
MODEL 5985723
$134.52 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 844 L
Coating
ALCRONA
Coating property (CTP)
1

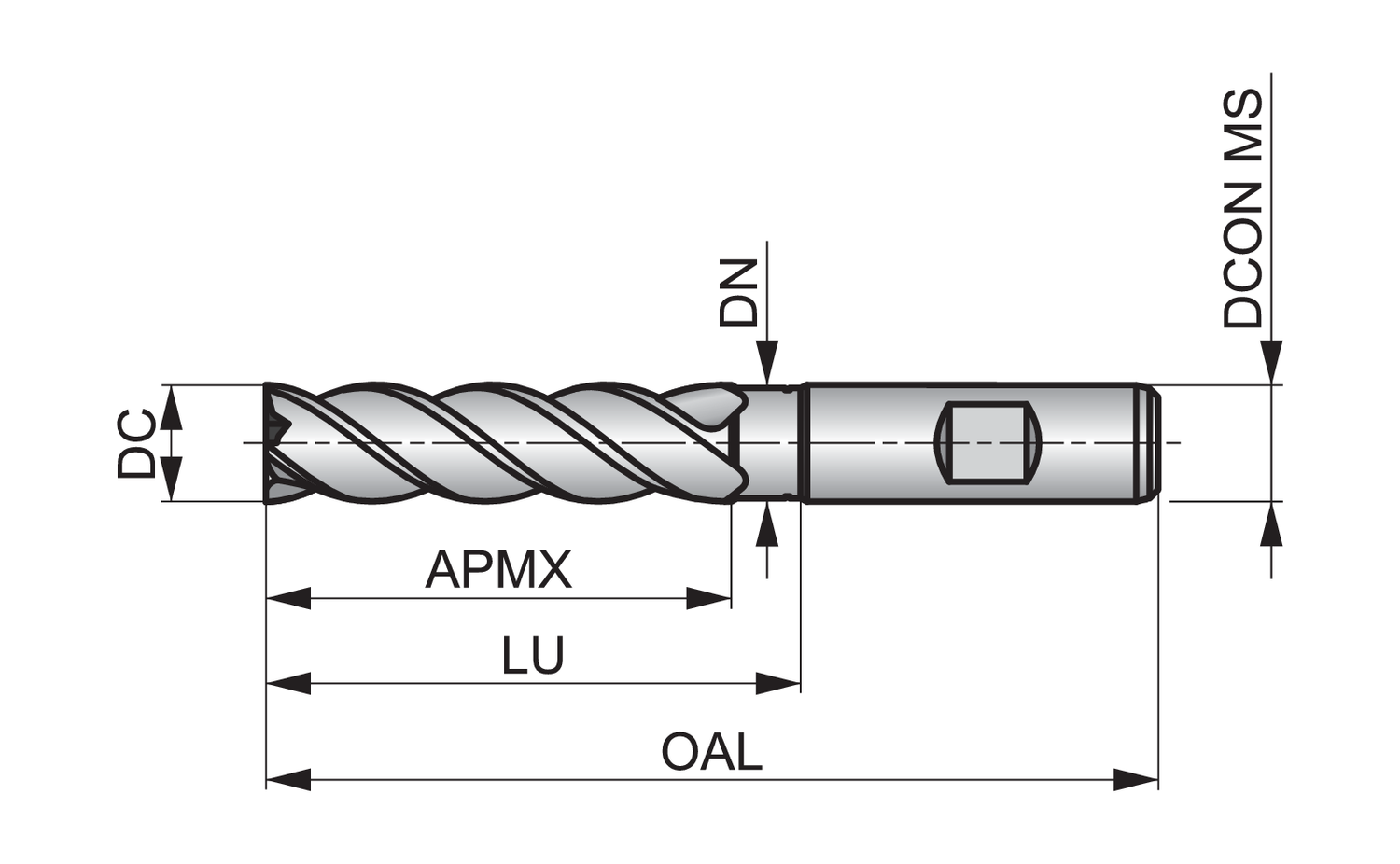

Connection diameter - inch (DCON MS)
0.6299
Connection diameter - millimeter (DCON MS)
16
Cut length
Long
Cutting diameter - inch (DC)
0.6299
Cutting diameter - millimeter (DC)
16
Cutting diameter tolerance class (TCDC)
k10
Depth of cut maximum - inch (APMX)
2.4803
Depth of cut maximum - millimeter (APMX)
63
EDP number
76163
Flute count (NOF)
4
Flute helix angle (FHA)
45
Material
HSS-E-PM
MID number
5985723
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.6102
Neck diameter - millimeter (DN)
15.5
Ordering code ANSI
C92016.0
Overall length - inch (OAL)
4.8425
Overall length - millimeter (OAL)
123
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
12
Shank
Weldon shank DIN 1835B
Usable Length - millimeter (LU)
74.5
C920 4-flute end mills are manufactured from powder metal High Speed cobalt which gives you extended tool life coupled with great performance, whilst the special Alcrona coating further extends the life of the tool and gives improved performance when milling difficult to machine materials.
With a long series flute for high rigidity finishing deep profiles, C920 end mills can be used or plunging, ramping and profile milling in steels, stainless steels and cast iron.
Finally, high performance when machining heat resistant materials on CNC machines is achieved, thanks to the 45 degree helix angle
