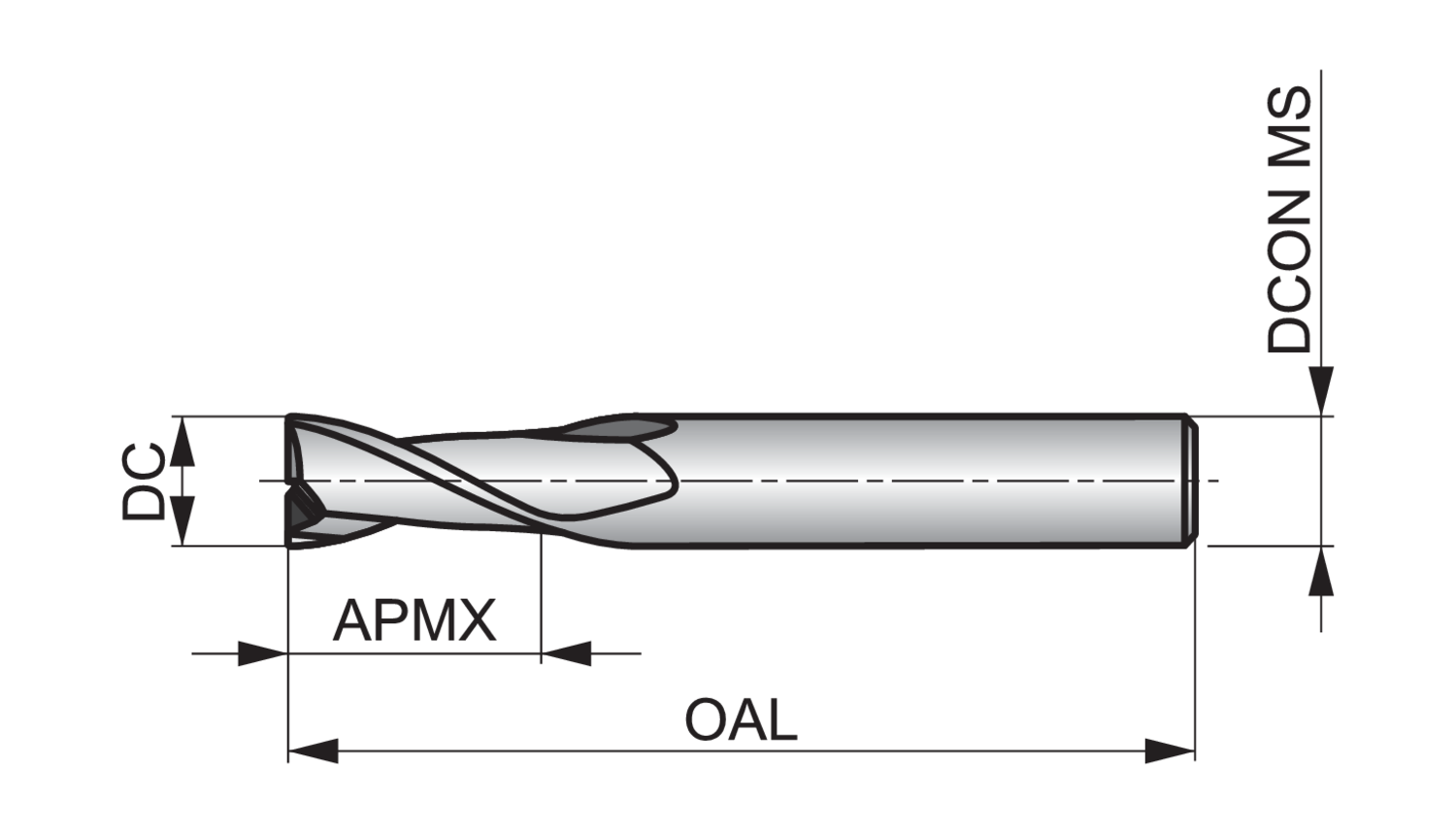

Dormer S1089/16 7648540 square end mill, 9/16" cutting diameter, 2-flute, solid carbide (HM) construction with 30° helix angle. Suitable for machining cast iron, non-ferrous metals, and steel/cast steel (K/N/P). DORMER standard, 9/16" cylindrical shank.

Basic Standard

DORMER

Coating

Bright

Connection diameter - fractional inch (DCON MS)

9/16

Connection diameter - inch (DCON MS)

0.5625

Connection diameter - millimeter (DCON MS)

14.29

Cut length

Medium

Cutting diameter - fractional inch (DC)

9/16

Cutting diameter - inch (DC)

0.5625

Cutting diameter - millimeter (DC)

14.29

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

1.1/4

EDP number

7648540

Flute count (NOF)

2

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

MID number

7648540

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S1089/16

Overall length - fractional inch (OAL)

3.1/2

Overall length - inch (OAL)

3.5

Overall length - millimeter (OAL)

88.9

Radial rake angle (GAMF)

10

Shank

Cylindrical shank
