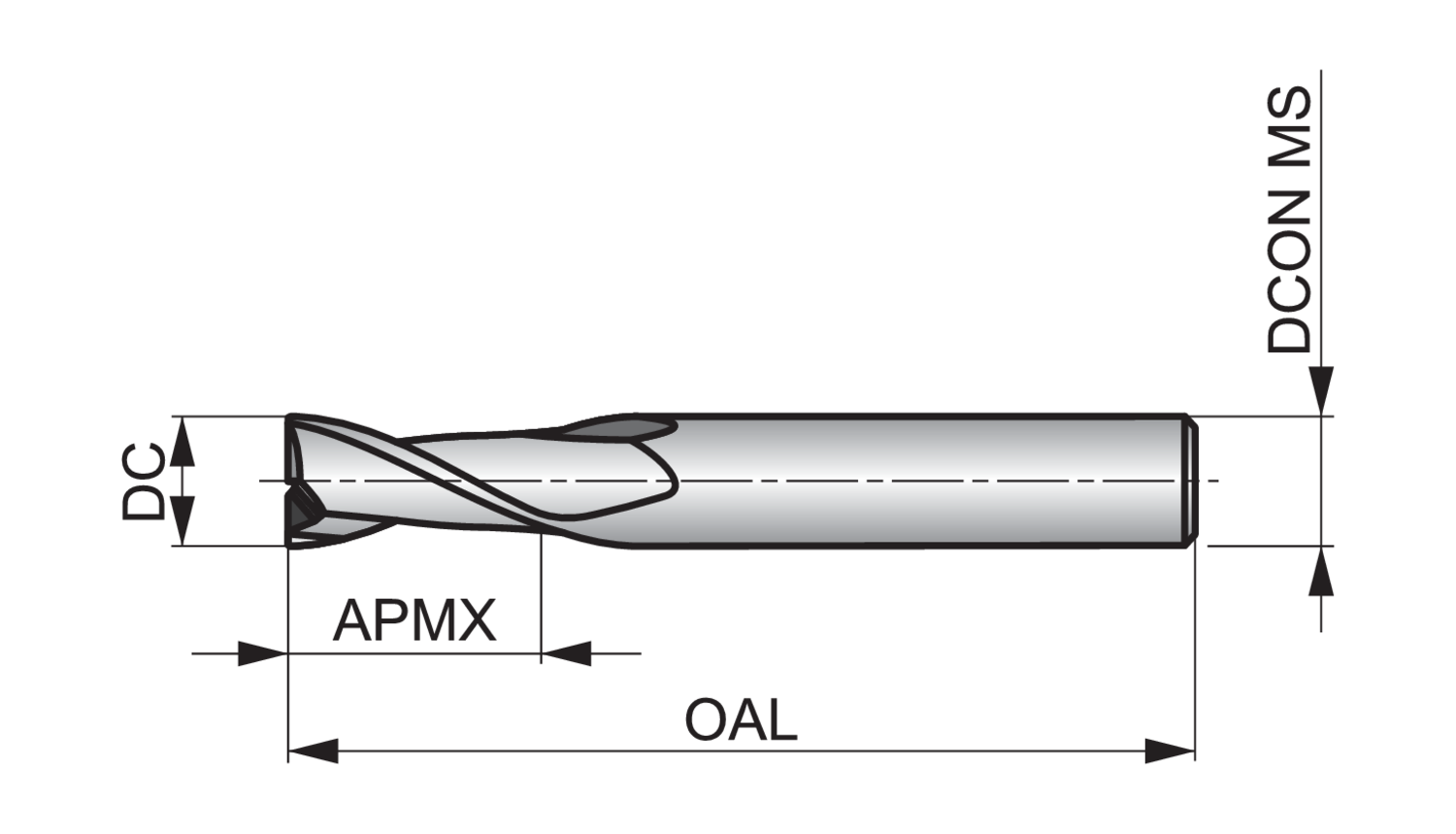

Dormer S10920.0 7648573 square end mill, 20mm cutting diameter, 2-flute, solid carbide (HM), 30° helix angle, 38mm max depth of cut, 20mm shank diameter. For cast iron, non-ferrous metals, and steel/cast steel applications. DORMER standard.

Basic Standard

DORMER

Coating

Bright

Connection diameter - inch (DCON MS)

0.7874

Connection diameter - millimeter (DCON MS)

20

Cut length

Medium

Cutting diameter - inch (DC)

0.7874

Cutting diameter - millimeter (DC)

20

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - inch (APMX)

1.4961

Depth of cut maximum - millimeter (APMX)

38

EDP number

7648573

Flute count (NOF)

2

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel

MID number

7648573

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S10920.0

Overall length - inch (OAL)

3.937

Overall length - millimeter (OAL)

100

Peripheral effective cutting edge count (ZEFP)

2

Radial rake angle (GAMF)

10

Shank

Cylindrical shank
