Dormer S1101/2 7648579 End Mill 2FL 1/2 inch
MODEL 7648579
$56.11 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER"
Coating
Bright

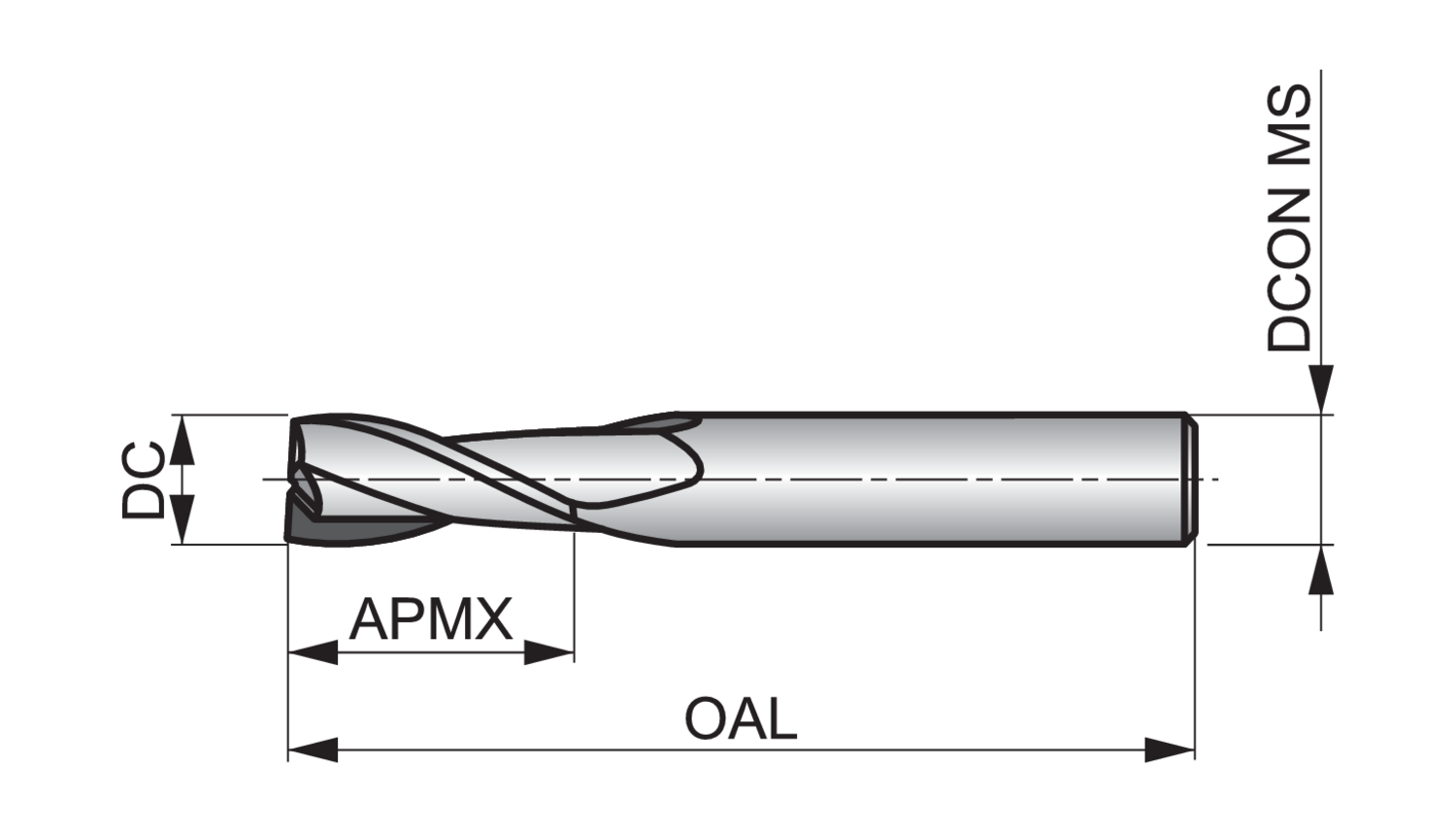

Connection diameter - fractional inch (DCON MS)
1/2
Connection diameter - inch (DCON MS)
0.5
Connection diameter - millimeter (DCON MS)
12.7
Cut length
Long
Cutting diameter - fractional inch (DC)
1/2
Cutting diameter - inch (DC)
0.5
Cutting diameter - millimeter (DC)
12.7
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
2
EDP number
7648579
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648579
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1101/2
Overall length - fractional inch (OAL)
4"
Overall length - inch (OAL)
4
Overall length - millimeter (OAL)
101.6
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S110 2-flute slot drills from Dormer have a bright finish which prevents workpiece material from sticking to the cutting edges of the tool so you get a clean and accurate finish.
Providing high rigidity for milling standard slots is the long length shank.
The tools are manufactured from premium carbide for extended tool life and great performance.
With economy and versatility in mind, S110 2-flute carbide milling cutters are a great choice for general milling of slots on most types of machines, and can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron
