Dormer S1138.0 7648616 Ball-Nosed End Mill 8.00 mm
MODEL 7648616
$31.17 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

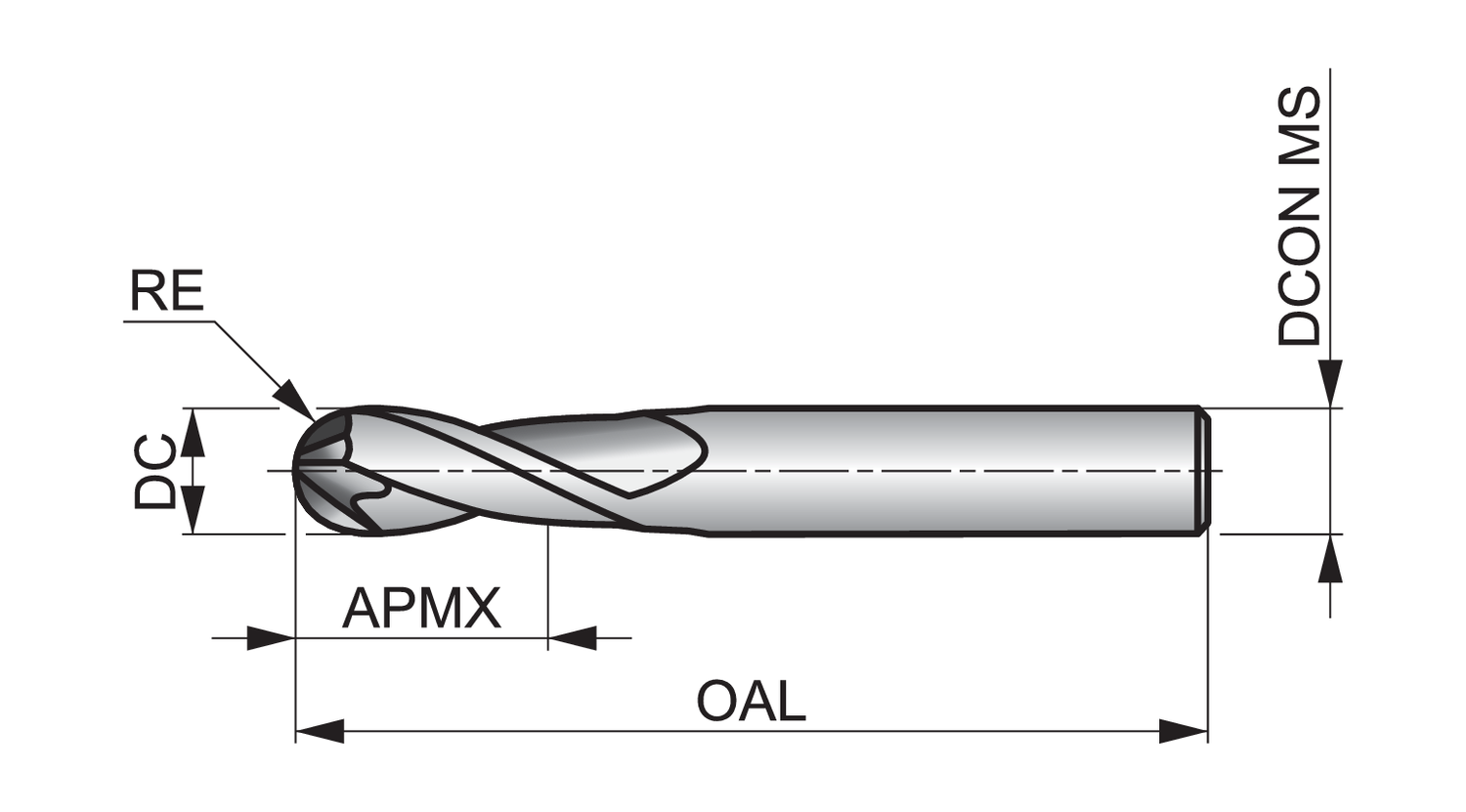

Connection diameter - millimeter (DCON MS)
8
Corner radius - inch (RE)
0.157
Corner radius - millimeter (RE)
4
Cut length
Medium
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - inch (APMX)
0.748
Depth of cut maximum - millimeter (APMX)
19
EDP number
7648616
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648616
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1138.0
Overall length - inch (OAL)
2.4803
Overall length - millimeter (OAL)
63
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S113 2-flute slot drills are manufactured from premium carbide for superior performance and extended tool life and have a bright finish to prevent workpiece material from sticking to the cutting edges of the tool so you get a clean and accurate finish.
The ball nose geometry is designed for high performance contouring of complex surfaces, whilst the short length flute provides good rigidity for increased strength and reduced vibration.
S113 2-flute ball nose carbide milling cutters are a great choice for plunging, ramping and profile milling in stainless steels, cast iron and steels
