Dormer S1141/8 7648631 Ball-Nosed End Mill 2FL 1/8 inch
MODEL 7648631
$22.83 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

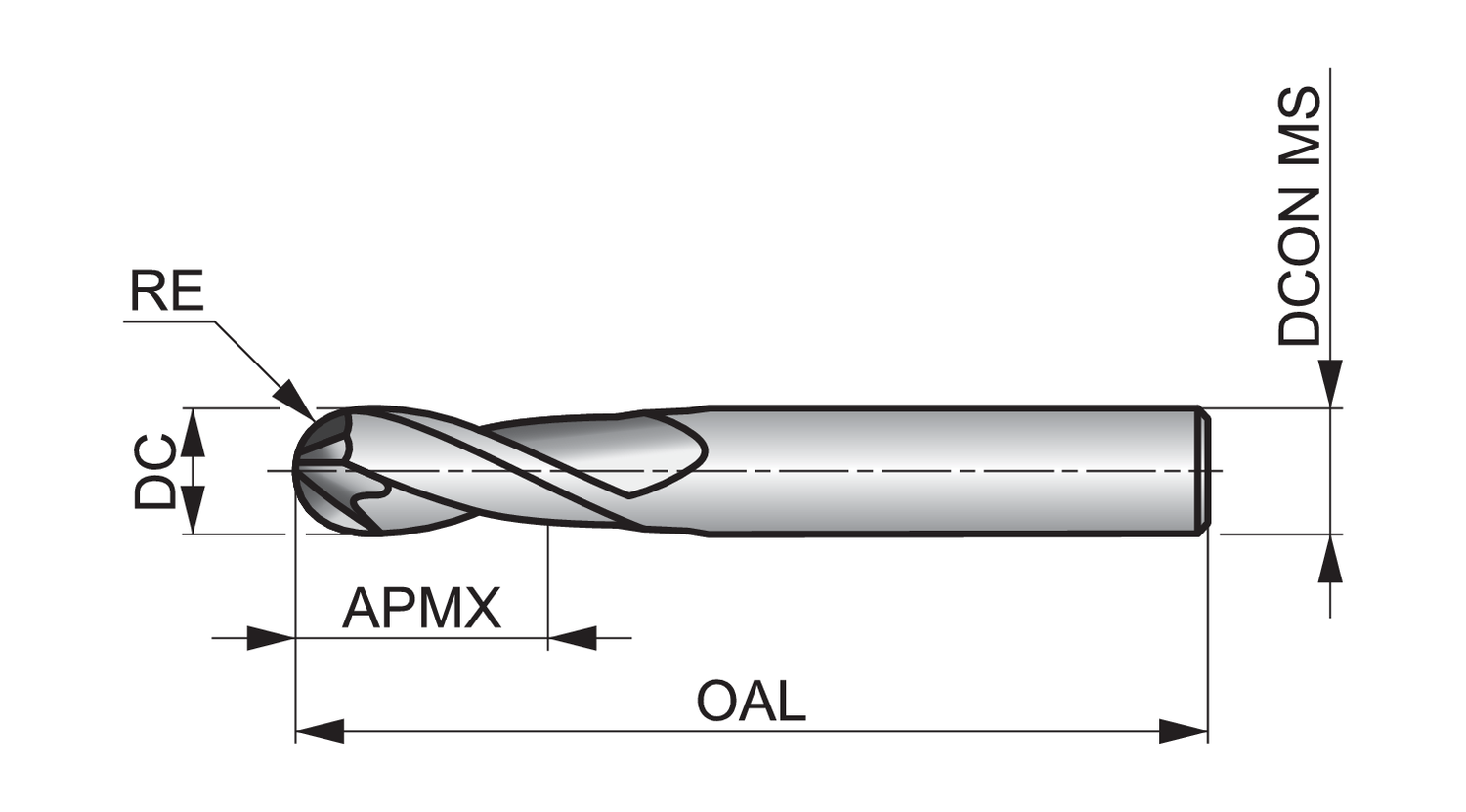

Connection diameter - fractional inch (DCON MS)
1/8
Connection diameter - millimeter (DCON MS)
3.18
Corner radius - fractional inch (RE)
1/16
Corner radius - inch (RE)
0.063
Cut length
Long
Cutting diameter - fractional inch (DC)
1/8
Cutting diameter - inch (DC)
0.125
Cutting diameter - millimeter (DC)
3.18
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
3/4
EDP number
7648631
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648631
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1141/8
Overall length - fractional inch (OAL)
2"
Overall length - inch (OAL)
2
Overall length - millimeter (OAL)
50.8
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S114 2-flute slot drills have a long length shank, providing high rigidity for increased strength and reduced vibration, and ball nose geometry for high performance contouring of complex surfaces.
They have a bright finish to prevent workpiece material from sticking to the cutting edges of the tool, ensuring a clean and accurate result, and are manufactured from premium carbide for superior performance and longer tool life.
S114 2-flute ball nose carbide milling cutters are very versatile tools and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron
