Dormer S1153/16 7648639 Ball-Nosed End Mill 2FL 3/16 inch
MODEL 7648639
$33.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

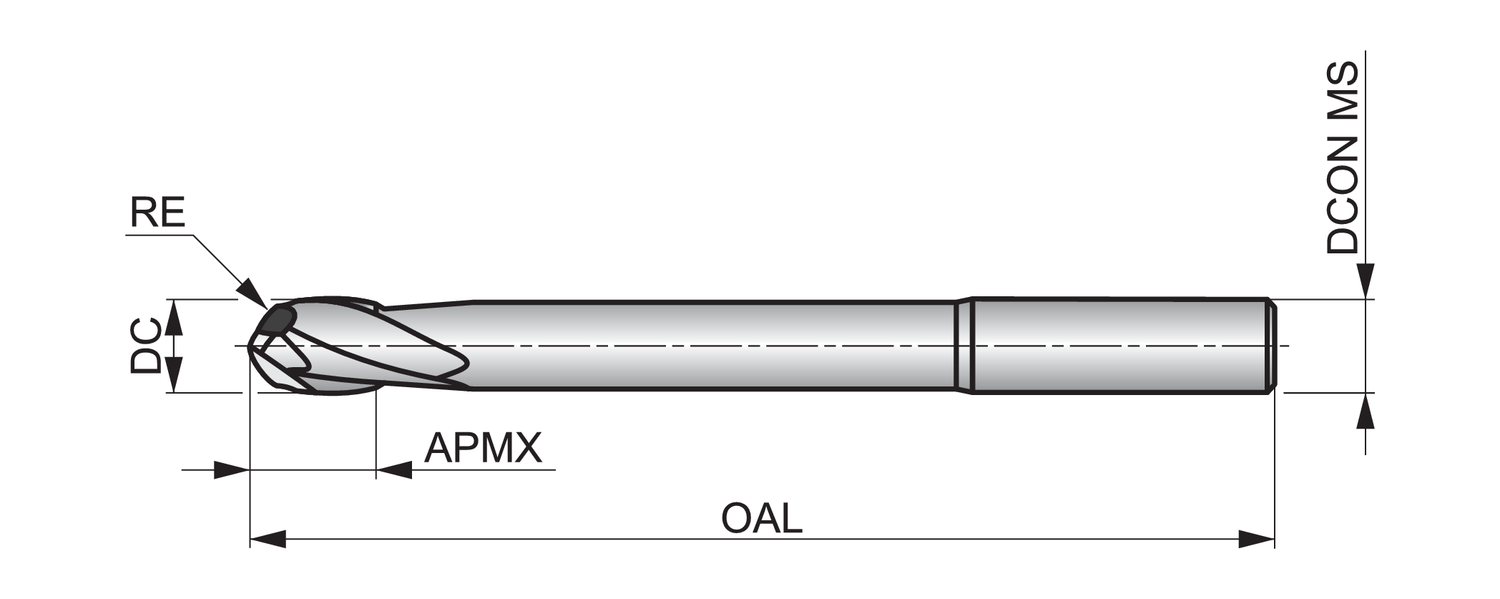

Connection diameter - fractional inch (DCON MS)
3/16
Connection diameter - millimeter (DCON MS)
4.76
Corner radius - fractional inch (RE)
3/32
Corner radius - inch (RE)
0.094
Cut length
Extra long
Cutting diameter - fractional inch (DC)
3/16
Cutting diameter - inch (DC)
0.1875
Cutting diameter - millimeter (DC)
4.76
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1.1/8
EDP number
7648639
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648639
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1153/16
Overall length - fractional inch (OAL)
3"
Overall length - inch (OAL)
3
Overall length - millimeter (OAL)
76.2
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S115 2-flute slot drills have a ball nose geometry for high performance contouring of complex surface and are manufactured from premium carbide which provides superior performance and longer tool life.
The extra long shank gives high rigidity for reduced vibration and increased strength, whilst the bright finish ensures a clean and accurate result by preventing workpiece material from sticking to the cutting edges of the tool.
S115 2-flute ball nose milling cutters are very versatile tools and can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron
