Dormer S1165/32 7648651 square end mill, double end, 2-flute, 5/32" cutting diameter, solid carbide (HM), 30° helix angle, 3/8" shank, 7/16" max depth of cut. For K cast iron, M stainless steel, N non-ferrous metals, P steel and cast steel. DORMER standard.

Basic Standard

DORMER

Coating

Bright

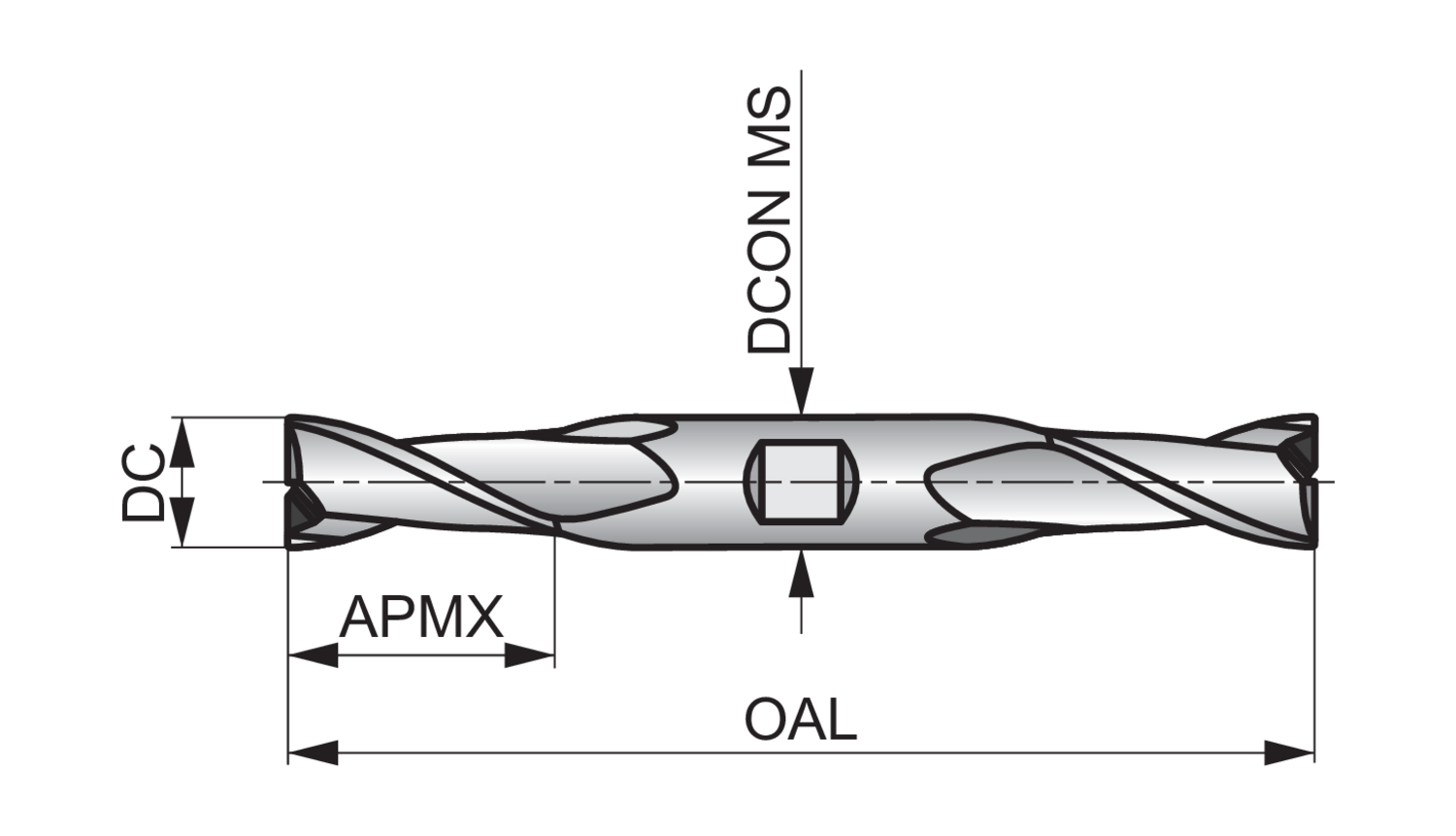

Connection diameter - fractional inch (DCON MS)

3/8

Connection diameter - inch (DCON MS)

0.375

Connection diameter - millimeter (DCON MS)

9.53

Cut length

Medium

Cutting diameter - fractional inch (DC)

5/32

Cutting diameter - inch (DC)

0.1563

Cutting diameter - millimeter (DC)

3.97

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

7/16

EDP number

7648651

Flute count (NOF)

2

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

7648651

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S1165/32

Overall length - fractional inch (OAL)

3"

Overall length - inch (OAL)

3

Overall length - millimeter (OAL)

76.2

Radial rake angle (GAMF)

10

Shank

Cylindrical shank
