Dormer S1211/4 7648662 End Mill 3FL 1/4 inch
MODEL 7648662
$18.19 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

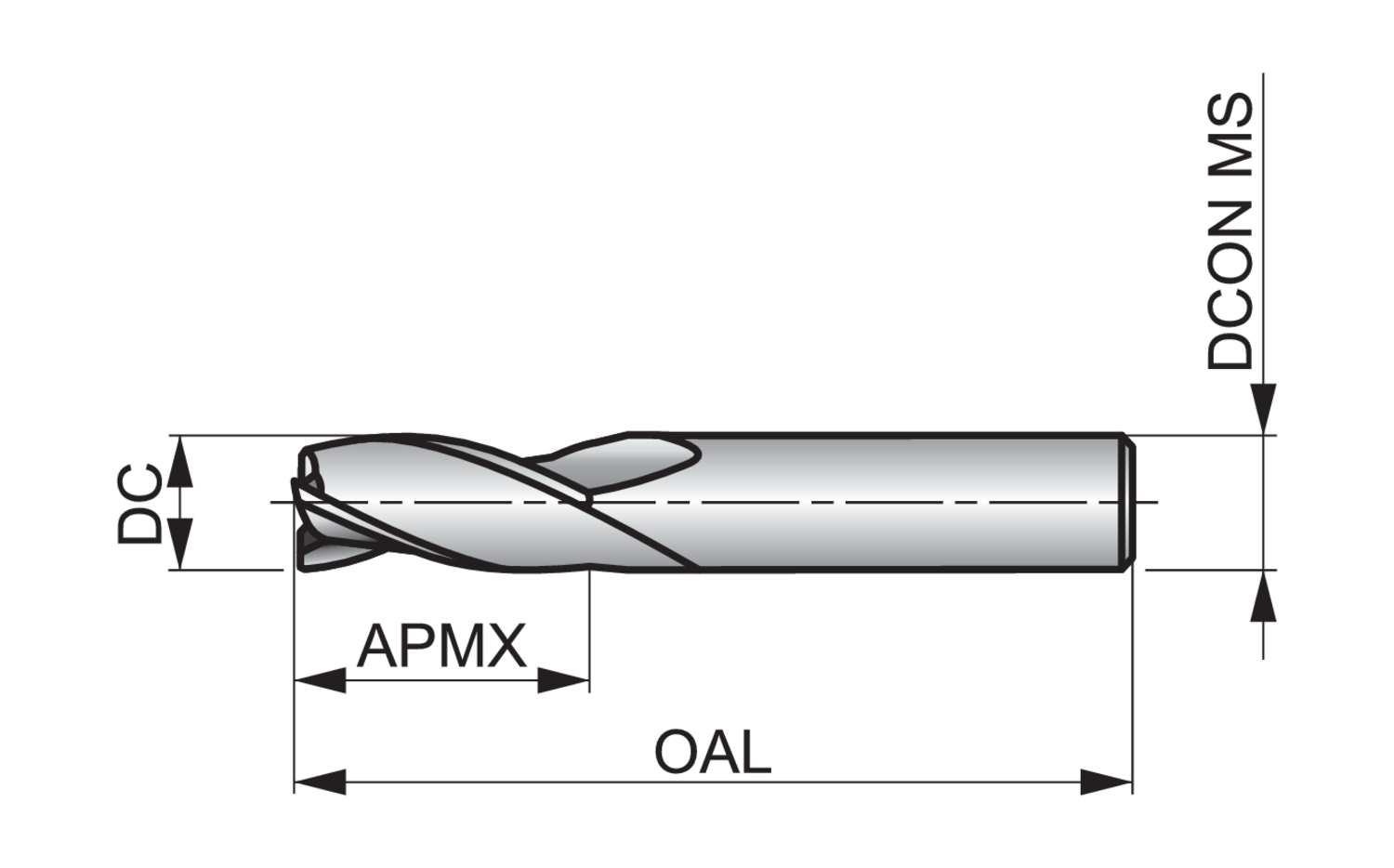

Connection diameter - fractional inch (DCON MS)
1/4
Connection diameter - inch (DCON MS)
0.25
Connection diameter - millimeter (DCON MS)
6.35
Cut length
Medium
Cutting diameter - fractional inch (DC)
1/4
Cutting diameter - inch (DC)
0.25
Cutting diameter - millimeter (DC)
6.35
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
3/4
EDP number
7648662
Flute count (NOF)
3
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648662
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1211/4
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S121 3-flute slot drills are an economical range for general milling of slots on most types of machines and can be used for plunging, ramping and profile milling in steels, cast iron and stainless steels.
With a medium length flute design for high rigidity for milling standard slots and profiling, the tools have a bright finish which prevents workpiece material from sticking to the cutting edges of the tool so you get a clean and accurate result.
S121 3-flute milling cutters are manufactured from premium carbide to ensure superior performance and extended tool life
