Dormer S1293/16 7648721 End Mill - Double End 4FL 3/16 inch
MODEL 7648721
$41.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

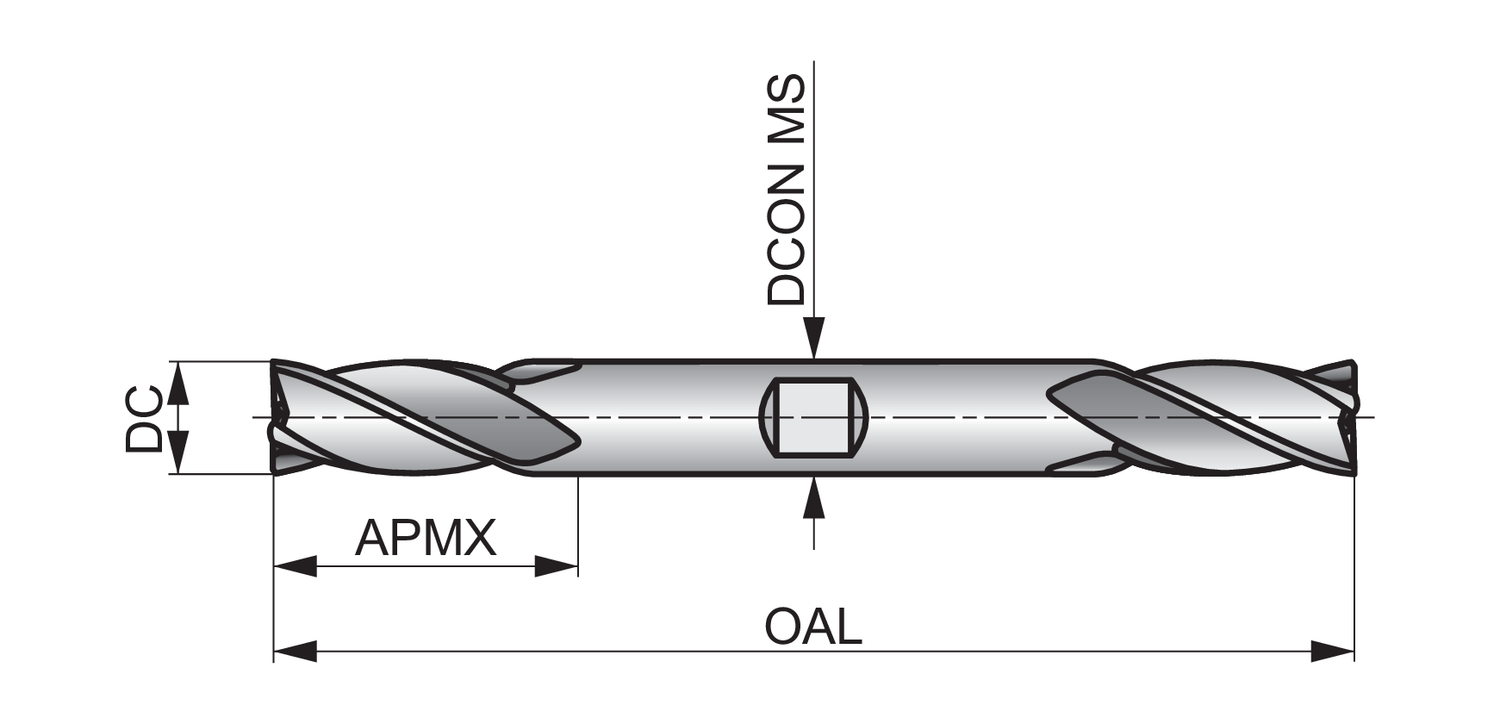

Connection diameter - fractional inch (DCON MS)
3/8
Connection diameter - inch (DCON MS)
0.375
Connection diameter - millimeter (DCON MS)
9.53
Cut length
Medium
Cutting diameter - fractional inch (DC)
3/16
Cutting diameter - inch (DC)
0.1875
Cutting diameter - millimeter (DC)
4.76
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1/2
EDP number
7648721
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648721
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1293/16
Overall length - fractional inch (OAL)
3"
Overall length - inch (OAL)
3
Overall length - millimeter (OAL)
76.2
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S129 4-flute milling cutters have a medium length flute design for good rigidity for milling standard slots.
The tools are double ended so a very economical choice as you get two milling cutters in a single tool.
They are manufactured from premium carbide for improved performance and longer tool life, and have a bright finish, preventing workpiece material from sticking to the cutting edges of the tool and so ensuring a clean and accurate result.
S129 4-flute milling cutters are a very versatile option, being suitable for plunging, ramping and profile milling in steels, stainless steels and cast iron
