Dormer S1354.0 7648774 square end mill, 4.00mm cutting diameter, 4-flute, solid carbide (HM), 30° helix angle, 14mm max depth of cut. For K (cast iron), M (stainless steel), N (non-ferrous), P (steel/cast steel). Cylindrical shank, 4mm connection diameter.

Name: Dormer S1354.0 7648774 square end mill, 4.00mm cutting diameter, 4-flute, solid carbide (HM), 30° helix angle, 14mm max depth of cut. For K (cast iron
Brand: Dormer Pramet
Price: 15.89 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 7648774

BRAND

Dormer Pramet

SKU

6077948

WEIGHT

0.015 lb

UOM

each

$15.89 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Coating

Bright

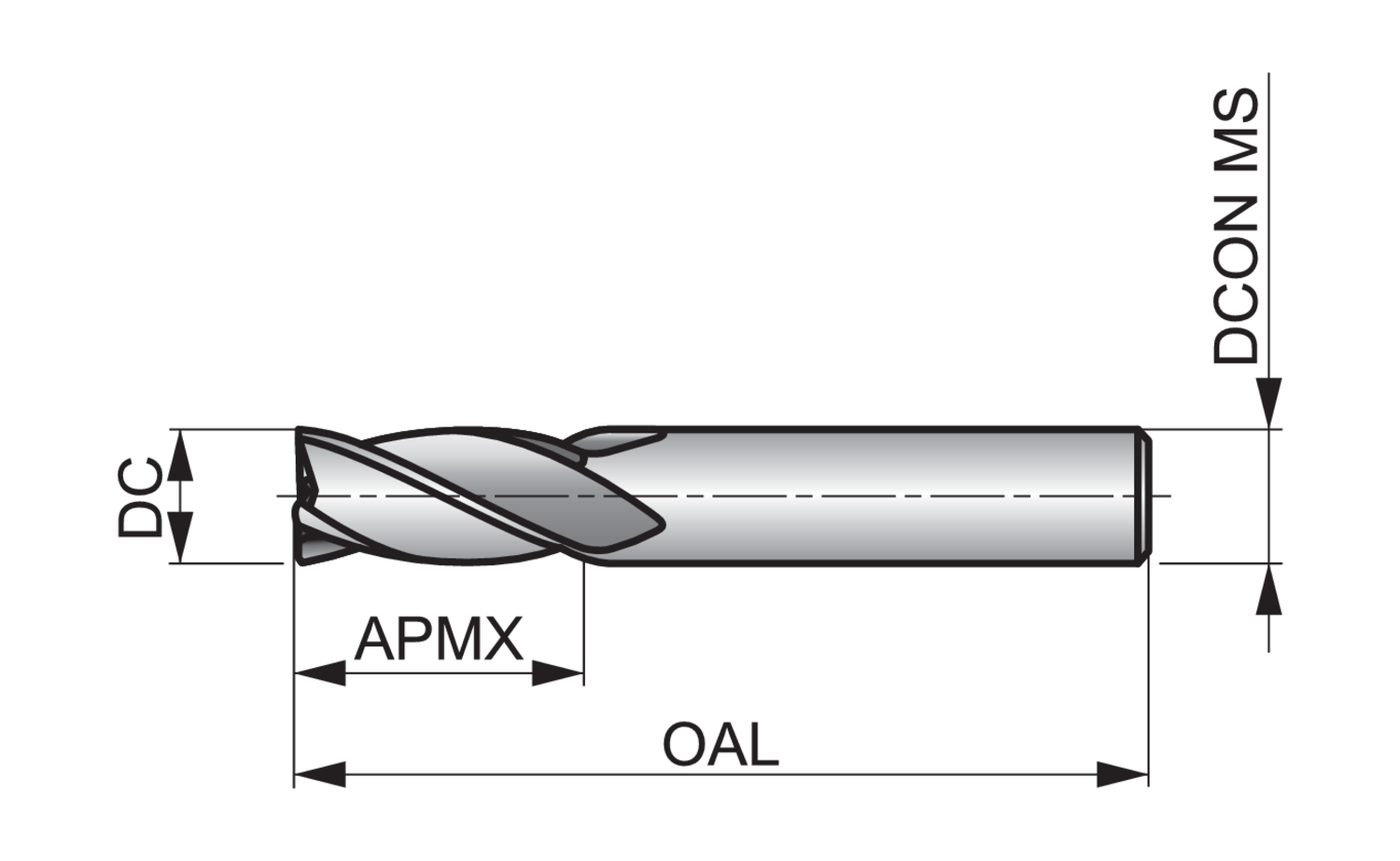

Connection diameter - inch (DCON MS)

0.1575

Connection diameter - millimeter (DCON MS)

Cut length

Medium

Cutting diameter - inch (DC)

0.1575

Cutting diameter - millimeter (DC)

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - inch (APMX)

0.5512

Depth of cut maximum - millimeter (APMX)

EDP number

7648774

Flute count (NOF)

Flute helix angle (FHA)

Material

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

7648774

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S1354.0

Overall length - inch (OAL)

1.9685

Overall length - millimeter (OAL)

Peripheral effective cutting edge count (ZEFP)

Radial rake angle (GAMF)

Shank

Cylindrical shank

S135 4-flute end mills are a very economical range for general milling of slots on most types of machines and can be used for plunging, ramping and profile milling in steels, cast iron and stainless steels.

The medium length flute design provides the high rigidity needed for standard profile milling, whilst the bright finish prevents workpiece material from sticking to the cutting edges of the tool so you get an accurate, clean finish.

S135 4-flute milling cutters are manufactured from premium carbide, so you can be sure of great performance coupled with a longer tool life
