Image for Illustration purposes only. Actual product may vary
Dormer S1365/16 7648810 End Mill 4FL 5/16 inch
MODEL 7648810
$39.00 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Bright

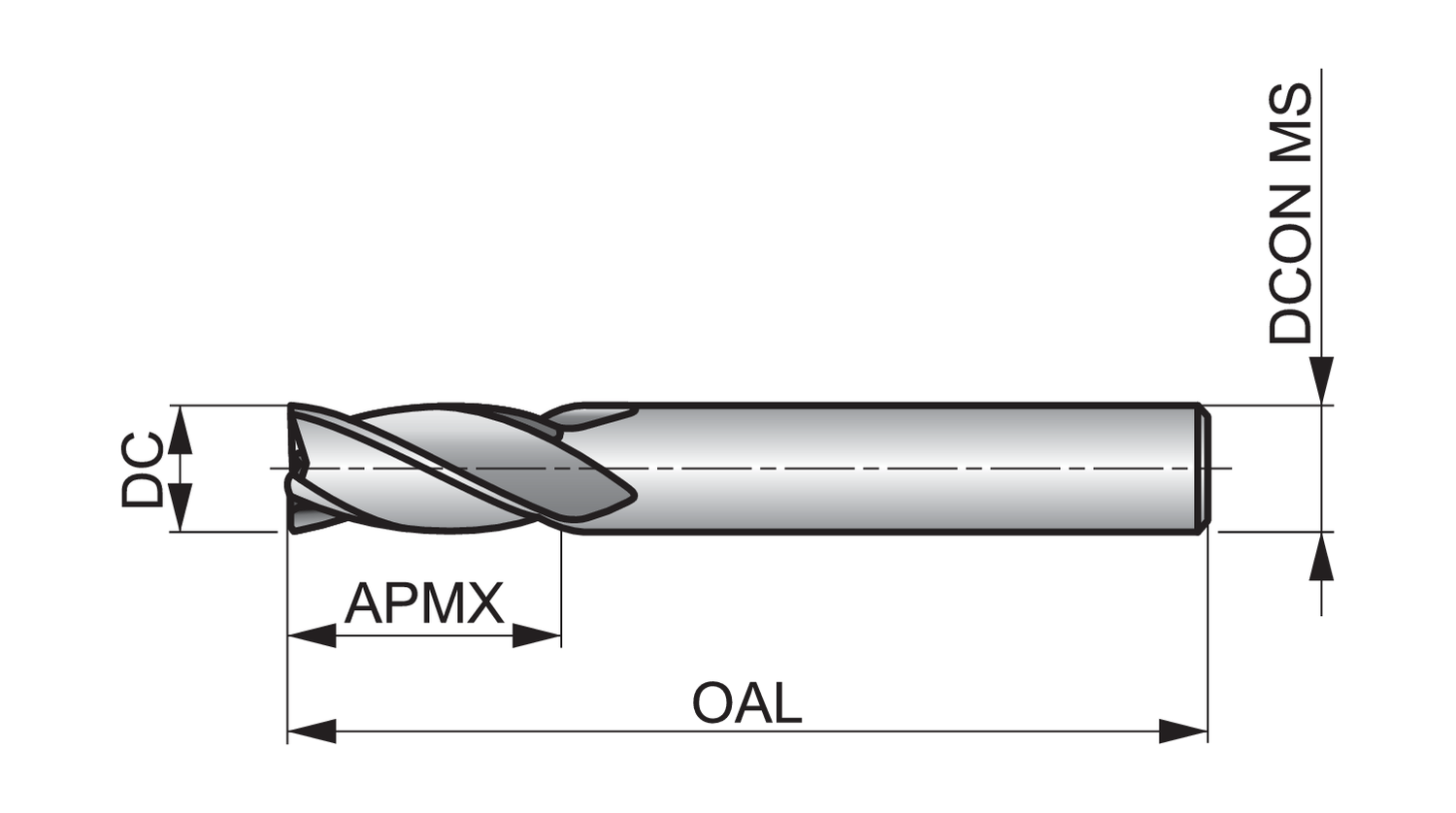

Connection diameter - fractional inch (DCON MS)
5/16
Connection diameter - inch (DCON MS)
0.3125
Connection diameter - millimeter (DCON MS)
7.94
Cut length
Long
Cutting diameter - fractional inch (DC)
5/16
Cutting diameter - inch (DC)
0.3125
Cutting diameter - millimeter (DC)
7.94
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1.1/8
EDP number
7648810
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
7648810
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S1365/16
Overall length - fractional inch (OAL)
3"
Overall length - inch (OAL)
3
Overall length - millimeter (OAL)
76.2
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
Dormer’s S136 4-flute end mills come with a bright finish which prevents workpiece material from sticking to the cutting edges of the tool, making sure you get a clean and accurate result, and have an extra long shank, providing good rigidity for standard profile milling.
The tools are manufactured from premium carbide for improved performance and extended tool life and are a great, economical choice for general milling of slots on most types of machine.
S136 4-flute carbide milling cutters are very versatile and can be used for plunging, ramping and profile milling in cast iron, stainless steels and steels
