Dormer S1371 7648834 1" cutting diameter solid carbide square end mill, 4-flute, 30° helix angle, 1" shank, 3" max depth of cut. For cast iron, stainless steel, non-ferrous metals, and steel. DORMER standard.

Basic Standard

DORMER"

Coating

Bright

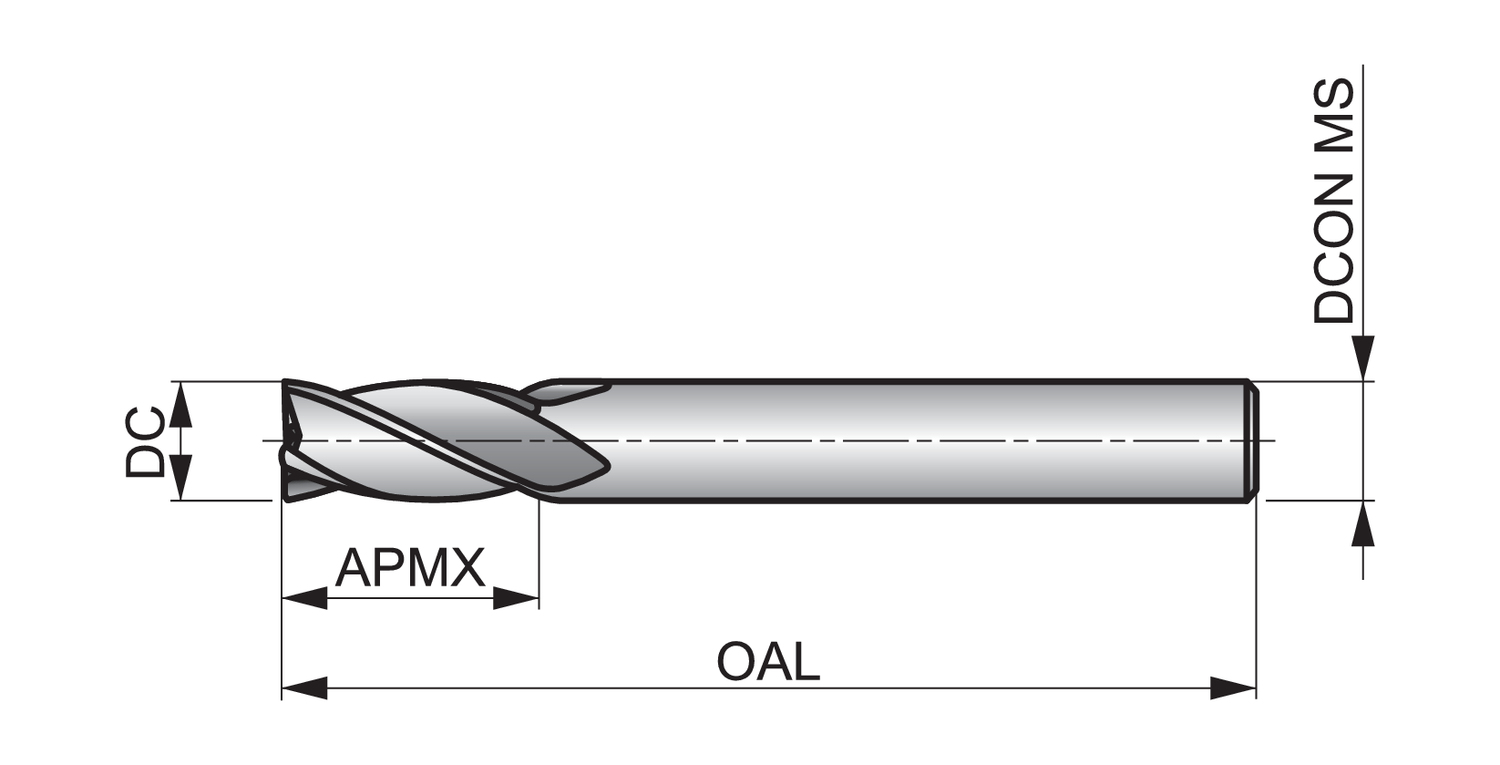

Connection diameter - fractional inch (DCON MS)

1"

Connection diameter - millimeter (DCON MS)

25.4

Cut length

Extra long

Cutting diameter - fractional inch (DC)

1"

Cutting diameter - inch (DC)

1

Cutting diameter - millimeter (DC)

25.4

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

3

EDP number

7648834

Flute count (NOF)

4

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

7648834

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S1371

Overall length - fractional inch (OAL)

6"

Overall length - inch (OAL)

6

Overall length - millimeter (OAL)

152.4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank
