Dormer S1383/4 7648856 square end mill, 3/4" cutting diameter, 4-flute, solid carbide (HM), 30° helix angle. For K cast iron, M stainless steel, N non-ferrous metals, P steel and cast steel. DORMER standard.

Basic Standard

DORMER

Coating

Bright

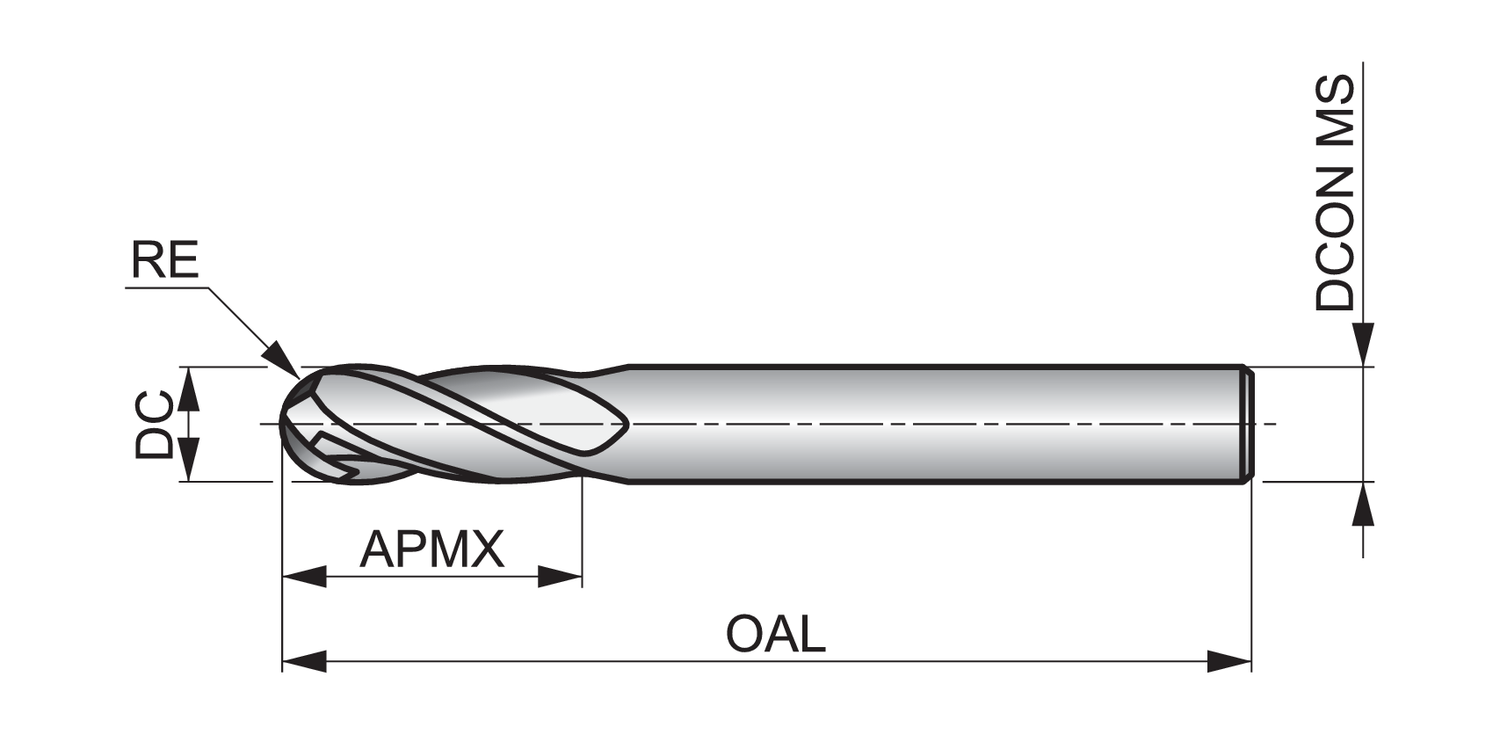

Connection diameter - fractional inch (DCON MS)

3/4

Connection diameter - inch (DCON MS)

0.75

Connection diameter - millimeter (DCON MS)

19.05

Corner radius - fractional inch (RE)

3/8

Corner radius - inch (RE)

0.375

Cut length

Medium

Cutting diameter - fractional inch (DC)

3/4

Cutting diameter - inch (DC)

0.75

Cutting diameter - millimeter (DC)

19.05

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

1.1/2

EDP number

7648856

Flute count (NOF)

4

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

7648856

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S1383/4

Overall length - fractional inch (OAL)

4"

Overall length - inch (OAL)

4

Overall length - millimeter (OAL)

101.6

Radial rake angle (GAMF)

10

Shank

Cylindrical shank
