Dormer S1392.0 7648877 square end mill, 2.00 mm cutting diameter, solid carbide, 4-flute, 30° helix angle. For K (cast iron), M (stainless steel), N (non-ferrous metals), and P (steel/cast steel) materials. 6 mm max depth of cut.

Basic Standard

DORMER

Coating

Bright

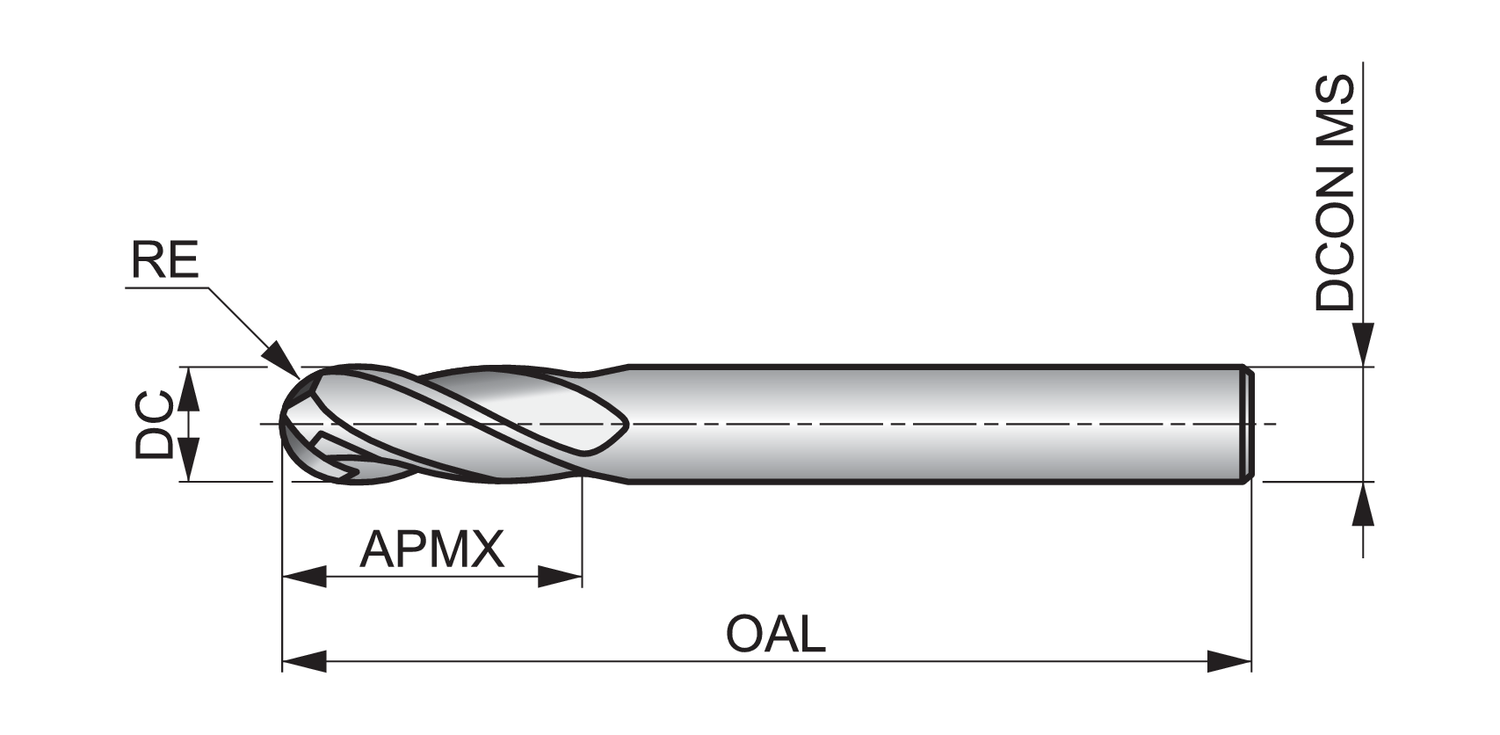

Connection diameter - inch (DCON MS)

0.1181

Connection diameter - millimeter (DCON MS)

3

Corner radius - inch (RE)

0.039

Corner radius - millimeter (RE)

1

Cut length

Medium

Cutting diameter - inch (DC)

0.0787

Cutting diameter - millimeter (DC)

2

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - inch (APMX)

0.2362

Depth of cut maximum - millimeter (APMX)

6

EDP number

7648877

Flute count (NOF)

4

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

7648877

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S1392.0

Overall length - inch (OAL)

1.4961

Overall length - millimeter (OAL)

38

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank
