Dormer S2063/4 7648502 ball nose end mill, 3/4" cutting diameter, 2-flute, solid carbide (HM) construction with 45° helix angle for non-ferrous metals. DORMER standard, uncoated finish.

Basic Standard

DORMER

Coating

ZrN

Coating property (CTP)

0

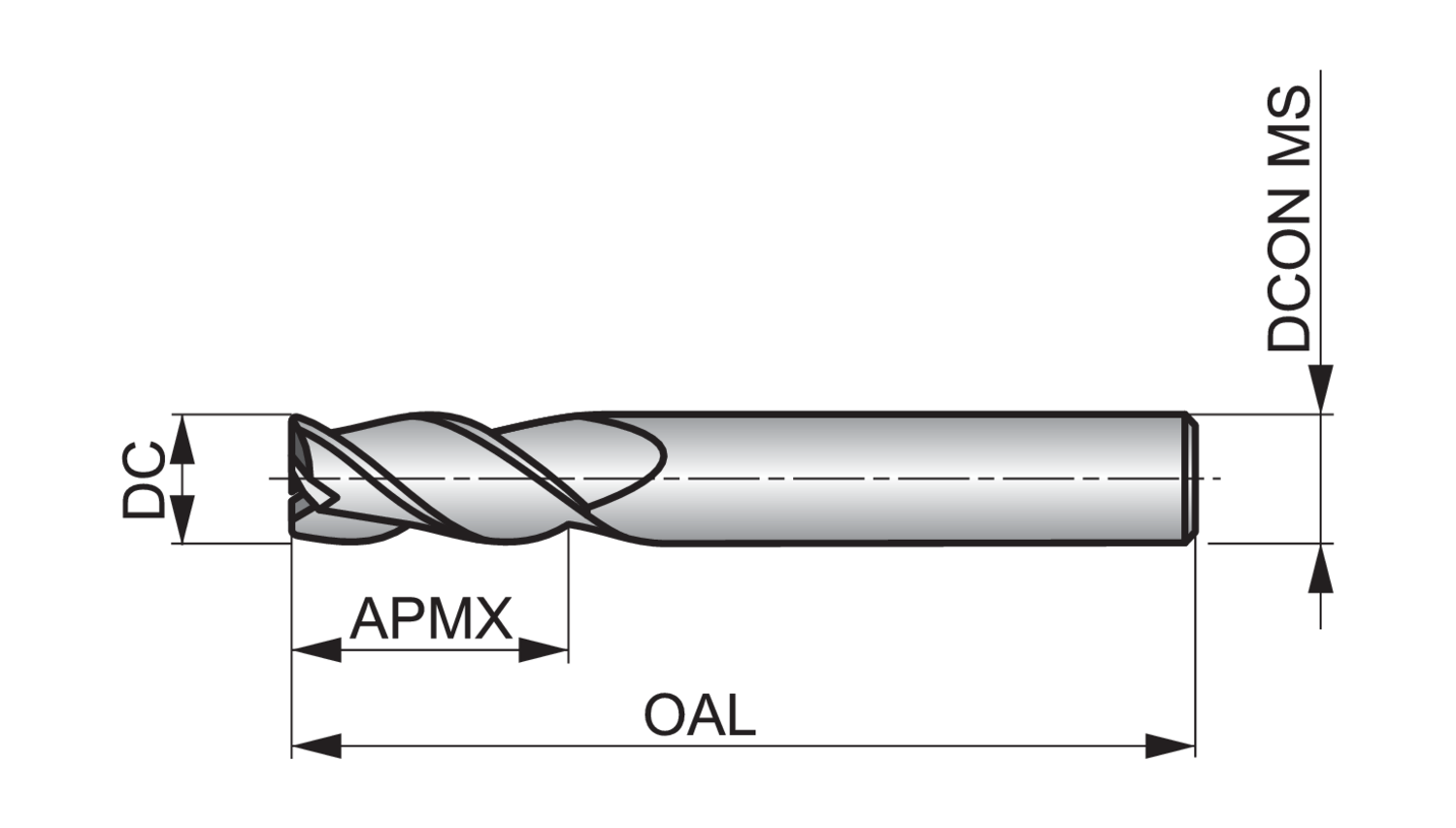

Connection diameter - fractional inch (DCON MS)

3/4

Connection diameter - inch (DCON MS)

0.75

Connection diameter - millimeter (DCON MS)

19.05

Cut length

Medium

Cutting diameter - fractional inch (DC)

3/4

Cutting diameter - inch (DC)

0.75

Cutting diameter - millimeter (DC)

19.05

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

1.3/4

EDP number

7648502

Flute count (NOF)

2

Flute helix angle (FHA)

45

Material

HM

Material application

N - Non-ferrous metals

MID number

7648502

Mill Profile

W - Non-ferrous Cutter Type for Soft Malleable Materials

Ordering code ANSI

S2063/4

Overall length - fractional inch (OAL)

4"

Overall length - inch (OAL)

4

Overall length - millimeter (OAL)

101.6

Radial rake angle (GAMF)

10

Shank

Cylindrical shank
