Dormer S2073/16X1.1/8 7648508 End Mill 3/16 inch
MODEL 7648508
$43.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
ZrN
Coating property (CTP)
0

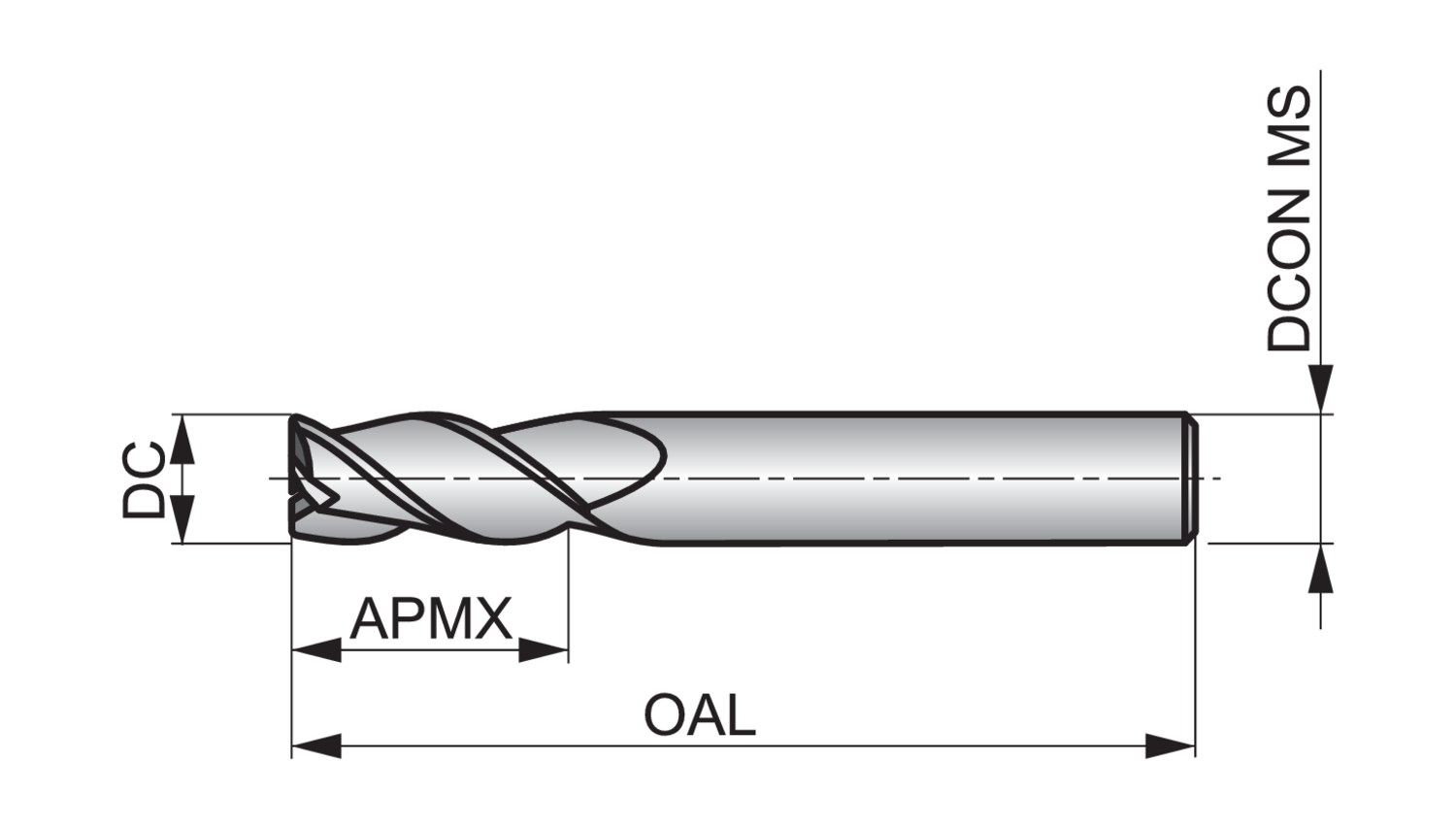

Connection diameter - fractional inch (DCON MS)
3/16
Connection diameter - inch (DCON MS)
0.1875
Connection diameter - millimeter (DCON MS)
4.76
Cut length
Medium
Cutting diameter - fractional inch (DC)
3/16
Cutting diameter - inch (DC)
0.1875
Cutting diameter - millimeter (DC)
4.76
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1.1/8
EDP number
7648508
Flute count (NOF)
2
Flute helix angle (FHA)
37
Material
HM
Material application
N - Non-ferrous metals
MID number
7648508
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Ordering code ANSI
S2073/16X1.1/8
Overall length - fractional inch (OAL)
3"
Overall length - inch (OAL)
3
Overall length - millimeter (OAL)
76.2
Radial rake angle (GAMF)
8
Shank
Cylindrical shank
S207 2-flute slot drills are designed specifically for milling in non-ferrous materials such as aluminium and have a 37 degree helix and high hook geometry for high performance machining in soft materials.
They have a medium length flute to provide high rigidity to increase strength and reduce vibration, and a zircon nitride coating to ensure a clean and accurate finish by preventing workpiece material from sticking to the cutting surfaces of the tool.
S207 2-flute milling cutters are manufactured from premium carbide, providing superior performance and extending the life of the tool
