Dormer S2077/16X1 7648515 square end mill, 7/16" cutting diameter, 2-flute, solid carbide (HM) construction with 37° helix angle for non-ferrous metals (N). Cylindrical shank, right-hand cut, uncoated finish. Suitable for high-performance machining of aluminum, copper, and other non-ferrous alloys.
MODEL 7648515
$69.44 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER"
Coating
ZrN
Coating property (CTP)
0

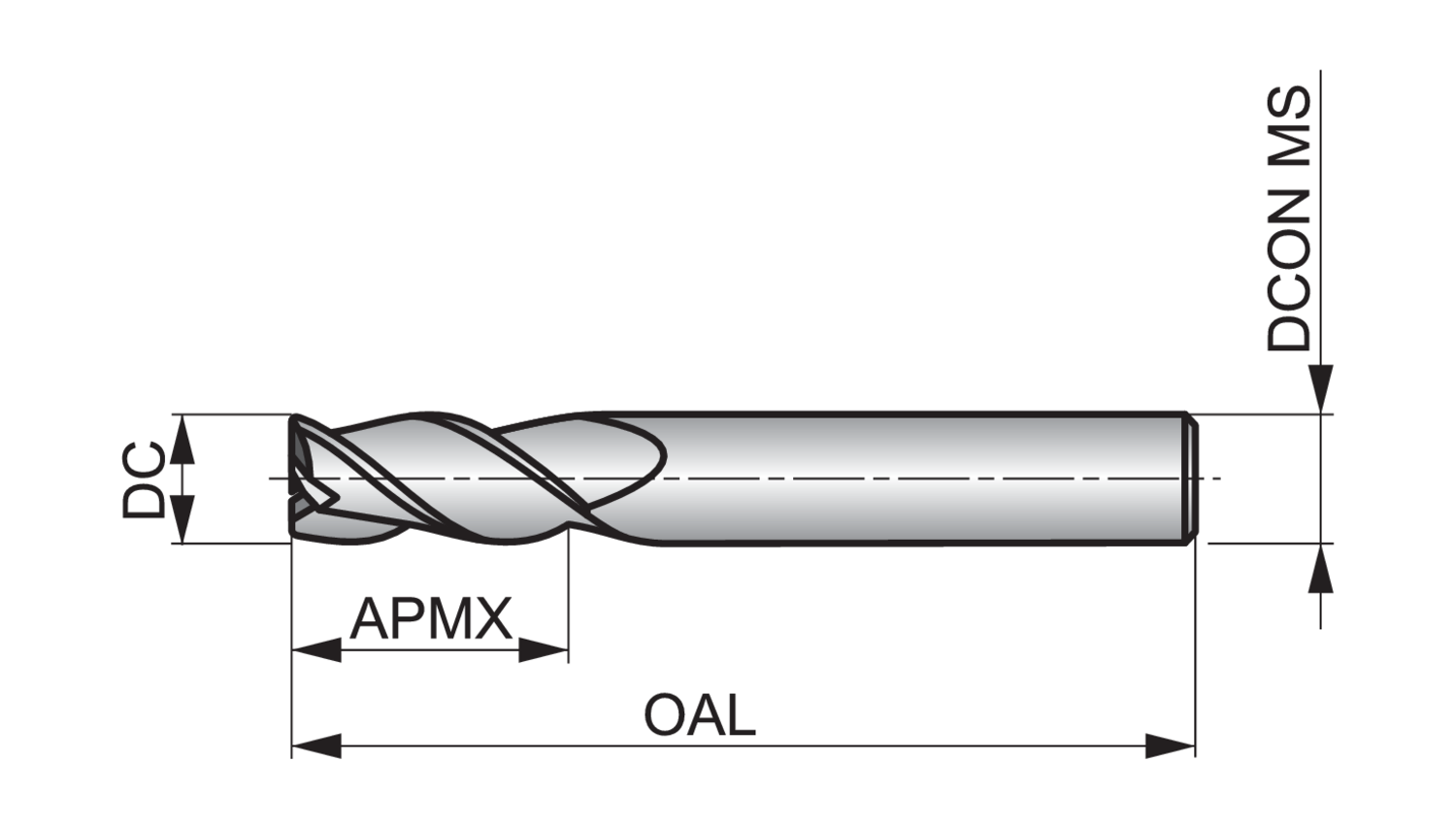

Connection diameter - fractional inch (DCON MS)
7/16
Connection diameter - inch (DCON MS)
0.4375
Connection diameter - millimeter (DCON MS)
11.11
Cut length
Medium
Cutting diameter - fractional inch (DC)
7/16
Cutting diameter - inch (DC)
0.4375
Cutting diameter - millimeter (DC)
11.11
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
1
EDP number
7648515
Flute count (NOF)
2
Flute helix angle (FHA)
37
Material
HM
Material application
N - Non-ferrous metals
MID number
7648515
Mill Profile
W - Non-ferrous Cutter Type for Soft Malleable Materials
Ordering code ANSI
S2077/16X1
Overall length - fractional inch (OAL)
2.1/2
Overall length - inch (OAL)
2.5
Overall length - millimeter (OAL)
63.5
Radial rake angle (GAMF)
8
Shank
Cylindrical shank
S207 2-flute slot drills are designed specifically for milling in non-ferrous materials such as aluminium and have a 37 degree helix and high hook geometry for high performance machining in soft materials.
They have a medium length flute to provide high rigidity to increase strength and reduce vibration, and a zircon nitride coating to ensure a clean and accurate finish by preventing workpiece material from sticking to the cutting surfaces of the tool.
S207 2-flute milling cutters are manufactured from premium carbide, providing superior performance and extending the life of the tool
