7648586

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer S2111/8 7648586 square end mill, 1/8" cutting diameter, 2-flute, solid carbide (HM), 30° helix angle. Suitable for machining cast iron, stainless steel, steel, cast steel, and high-temperature alloys. DORMER standard.

MODEL 7648586

SKU

6078051

WEIGHT

0.022 lb

UOM

each

$40.06 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Basic Standard

DORMER"

Coating

TiAlN

Coating property (CTP)

1

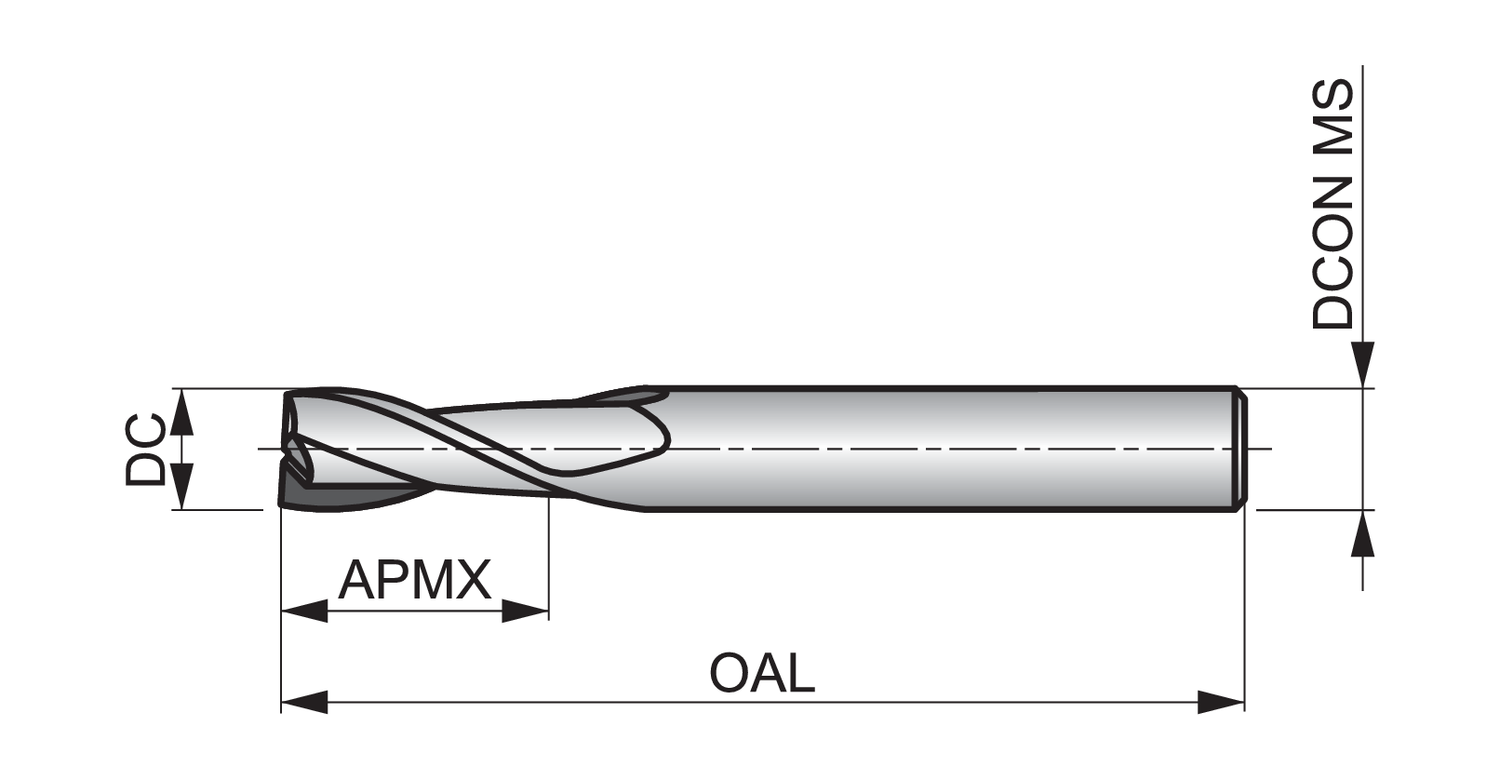

Connection diameter - fractional inch (DCON MS)

1/8

Connection diameter - inch (DCON MS)

0.125

Connection diameter - millimeter (DCON MS)

3.18

Cut length

Extra long

Cutting diameter - fractional inch (DC)

1/8

Cutting diameter - inch (DC)

0.125

Cutting diameter - millimeter (DC)

3.18

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

1

EDP number

7648586

Flute count (NOF)

2

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

7648586

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S2111/8

Overall length - fractional inch (OAL)

3"

Overall length - inch (OAL)

3

Overall length - millimeter (OAL)

76.2

Radial rake angle (GAMF)

10

Shank

Cylindrical shank

S211 carbide slot drills can be used for plunging, ramping and profile milling in cast irons, stainless steels and steel and are a very economical range for general milling of slots on most machines.


They have an aluminium titanium nitride coating to prevent workpiece material from sticking to the cutting surfaces of the tool for a clean and accurate finish, and are made from premium carbide for superior performance and extended tool life.


The extra long shank on S211 carbide milling cutters means you get high rigidity for milling standard slots in areas which are difficult to reach
