Dormer S2136.0 7648625 Ball-Nosed End Mill 6.00 mm
MODEL 7648625
$29.67 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

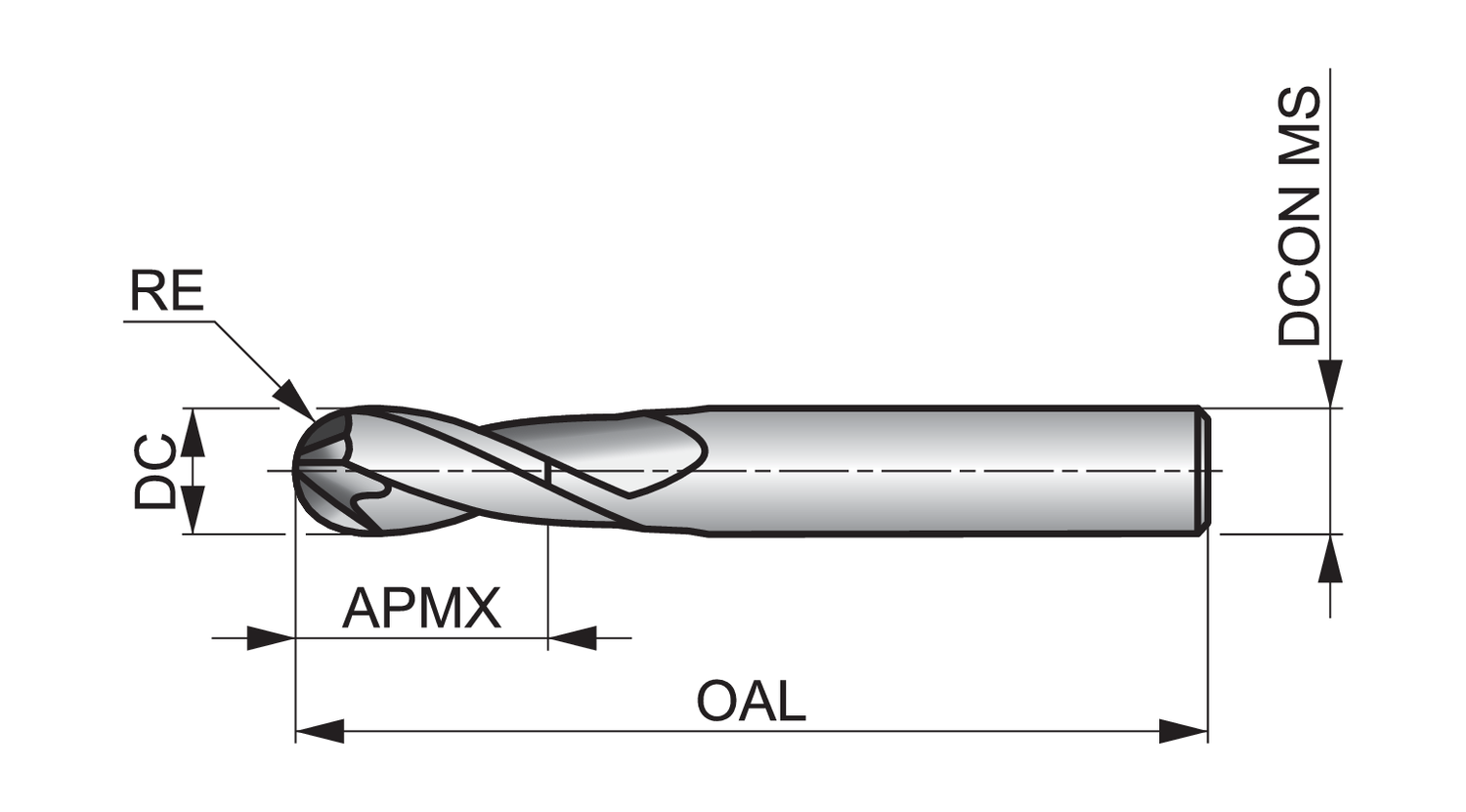

Connection diameter - millimeter (DCON MS)
6
Corner radius - inch (RE)
0.118
Corner radius - millimeter (RE)
3
Cut length
Medium
Cutting diameter - inch (DC)
0.2362
Cutting diameter - millimeter (DC)
6
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - inch (APMX)
0.748
Depth of cut maximum - millimeter (APMX)
19
EDP number
7648625
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
7648625
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2136.0
Overall length - inch (OAL)
2.4803
Overall length - millimeter (OAL)
63
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S213 carbide 2-flute slot drills are manufactured from premium carbide for great performance and longer tool life, and have a ball nose, designed for high performance contouring of complex surfaces.
The tools have an aluminium titanium nitride coating which will prevent workpiece material from sticking to the cutting tool surfaces for a clean and accurate finish.
Suitable for plunging, ramping and profile milling in steel, stainless steels and cast irons, S213 ball nosed milling cutters are very versatile and have a short flute length, providing high rigidity for high performance contouring of complex surfaces
