Dormer S21910.0 6706643 square end mill, 10.00mm cutting diameter, 4-flute, solid carbide (HM), 40° helix angle, 14mm max depth of cut. Suitable for stainless steel, steel, cast steel, and high-temperature alloys. DORMER standard.

Basic Standard

DORMER

Coating

AlTiN

Coating property (CTP)

1

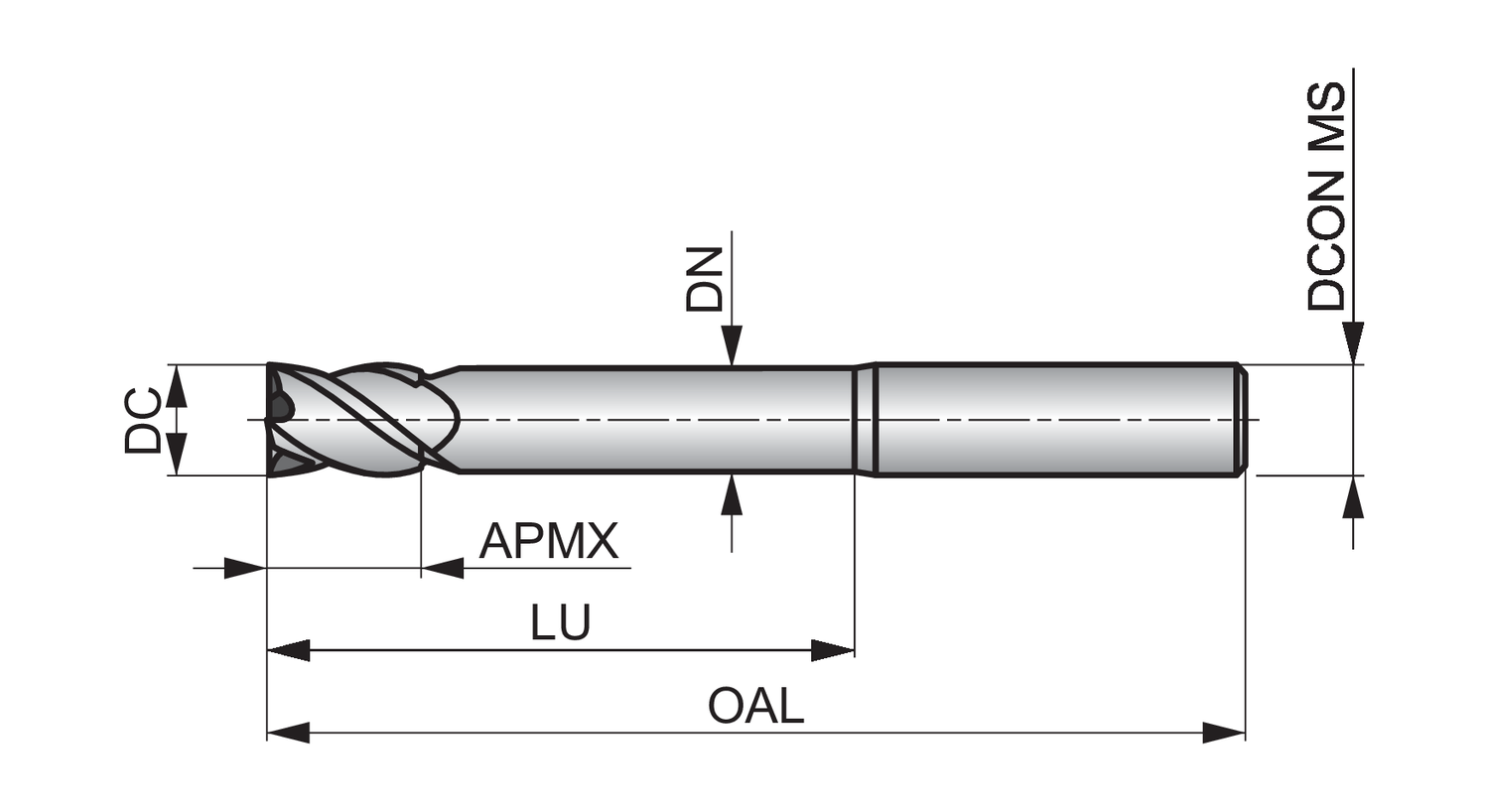

Connection diameter - inch (DCON MS)

0.3937

Connection diameter - millimeter (DCON MS)

10

Cut length

Extra short

Cutting diameter - inch (DC)

0.3937

Cutting diameter - millimeter (DC)

10

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

0.5512

Depth of cut maximum - millimeter (APMX)

14

EDP number

46706643

Flute count (NOF)

4

Flute helix angle (FHA)

40

Material

HM

Material application

M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

6706643

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Neck diameter - inch (DN)

0.3622

Neck diameter - millimeter (DN)

9.2

Ordering code ANSI

S21910.0

Overall length - inch (OAL)

2.9528

Overall length - millimeter (OAL)

75

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

3

Shank

Cylindrical shank DIN 6535 HA

Usable Length - millimeter (LU)

40
