Dormer S2213/16 7648670 End Mill 3FL 3/16 inch
MODEL 7648670
$18.94 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

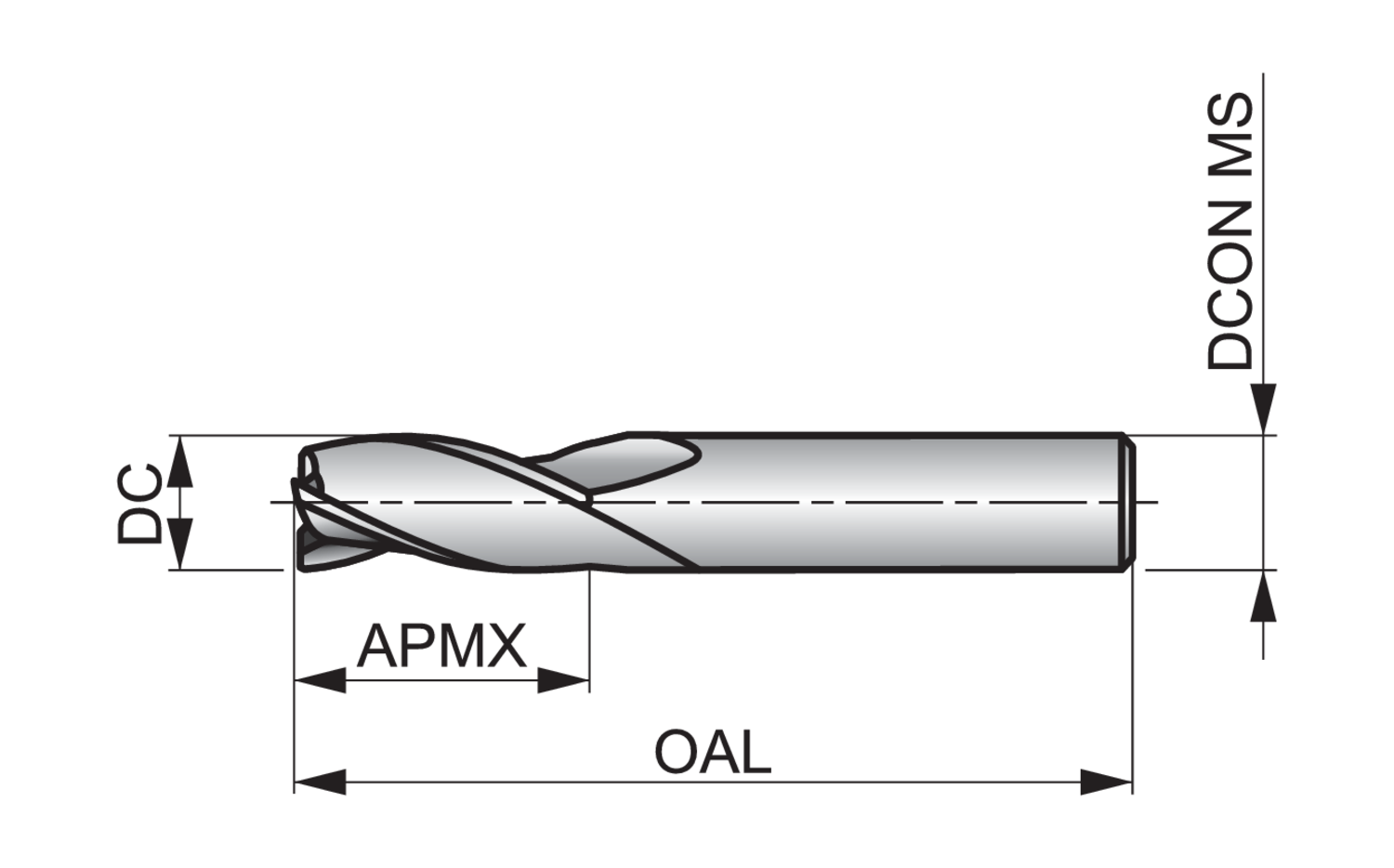

Connection diameter - fractional inch (DCON MS)
3/16
Connection diameter - inch (DCON MS)
0.1875
Connection diameter - millimeter (DCON MS)
4.76
Cut length
Medium
Cutting diameter - fractional inch (DC)
3/16
Cutting diameter - inch (DC)
0.1875
Cutting diameter - millimeter (DC)
4.76
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - fractional inch (APMX)
5/8
EDP number
7648670
Flute count (NOF)
3
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
7648670
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2213/16
Overall length - fractional inch (OAL)
2"
Overall length - inch (OAL)
2
Overall length - millimeter (OAL)
50.8
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
Part of Dormer’s extensive range of carbide milling cutters, S221 3-flute slot drills are manufactured from premium carbide for great performance and longer tool life.
They have a medium length flute to provide high rigidity for profiling and milling standards slots and are a good, economical range for general milling of slots on most types of machines.
S221 3-flute milling cutters are suitable for plunging, ramping and profile milling in cast iron, steels and stainless steels
