7648700

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer S223HB3/16XR.030 7648700 3/16" 4-flute solid carbide corner radius square end mill with unequal helix for hardened materials, cast iron, stainless steel, steel, and high-temperature alloys. Coated for enhanced wear resistance. DORMER standard.

MODEL 7648700

SKU

6078166

WEIGHT

0.031 lb

UOM

each

$41.94 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Basic Standard

DORMER

Coating

AlTiN

Coating property (CTP)

1

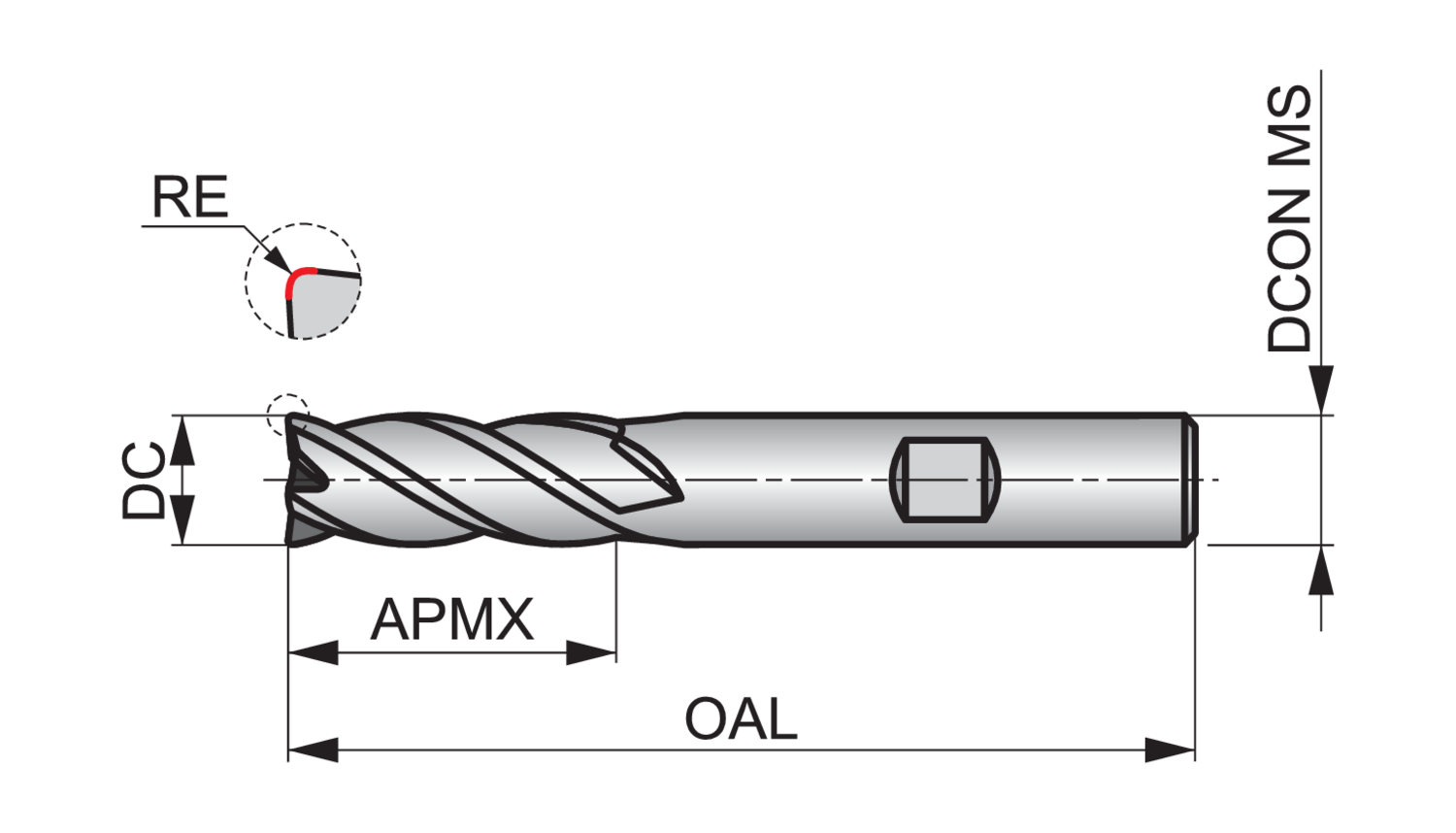

Connection diameter - fractional inch (DCON MS)

3/16

Connection diameter - inch (DCON MS)

0.1875

Connection diameter - millimeter (DCON MS)

4.76

Corner radius - inch (RE)

0.03

Cut length

Medium

Cutting diameter - fractional inch (DC)

3/16

Cutting diameter - inch (DC)

0.1875

Cutting diameter - millimeter (DC)

4.76

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

7/16

EDP number

7648700

Flute count (NOF)

4

Flute helix unequal

1

Material

HM

MID number

7648700

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S223HB3/16XR.030

Overall length - fractional inch (OAL)

2"

Overall length - inch (OAL)

2

Overall length - millimeter (OAL)

50.8

Radial rake angle (GAMF)

8

Shank

Cylindrical shank DIN 6535 HB

Dormer’s S223HB 4-flute end mills with a Weldon shank have an unequal geometry, specially designed to reduce vibration and improve surface finish when used in CNC machines.

To ensure great performance and a long tool life, the tools are manufactured from premium carbide, whilst the aluminium titanium nitride coating will guarantee a clean and accurate finish by preventing workpiece material from sticking to the cutting surfaces of the tool.

The medium length flute design provides good rigidity for milling standard slots and profiling, and the tools can be used for plunging, ramping and profile milling in stainless steels, cast iron and steels
