Dormer S23112.0 6706496 Ball-Nosed End Mill 12.00 mm
MODEL 6706496
$180.97 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiSiN
Coating property (CTP)
1

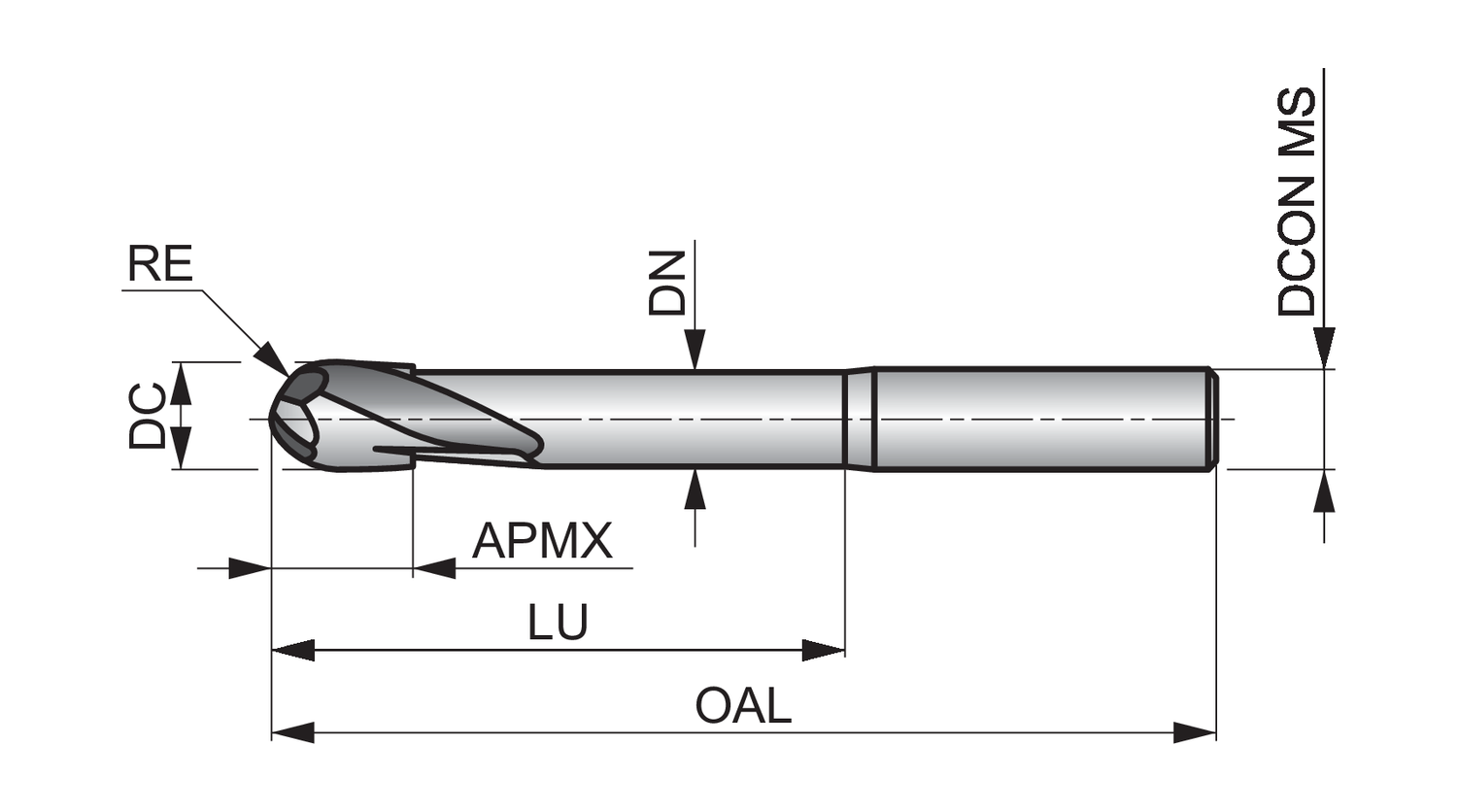

Connection diameter - inch (DCON MS)
0.4724
Connection diameter - millimeter (DCON MS)
12
Corner radius - inch (RE)
0.2362
Corner radius - millimeter (RE)
6
Cut length
Extra short
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
Cutting diameter tolerance class (TCDC)
h9
Depth of cut maximum - inch (APMX)
0.6299
Depth of cut maximum - millimeter (APMX)
16
EDP number
46706496
Flute count (NOF)
2
Flute helix angle (FHA)
30
Material
HM
Material application
M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706496
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Neck diameter - inch (DN)
0.4331
Neck diameter - millimeter (DN)
11
Ordering code ANSI
S23112.0
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
100
Peripheral effective cutting edge count (ZEFP)
2
Radial rake angle (GAMF)
3
Shank
Cylindrical shank DIN 6535 HA
Usable Length - millimeter (LU)
60
S231 premium carbide 2-flute milling cutters will give you superior performance and a longer tool life.
The long reach 2-flute design makes these tools very rigid with increased strength and reduced vibration when machining in those difficult to reach areas, whilst the ball nose geometry makes the cutters perfect for high performance contouring of complex surfaces.
S231 2-flute ball nose milling cutters are designed for high speed machining in difficult to machine materials such as heat resistant alloys, supported by the aluminium titanium nitride coating which improves performance when milling those materials and also extends the tool life
