Dormer S2316.0 6706493 square end mill, 6.00mm cutting diameter, 2-flute, solid carbide (HM), 30° helix angle, DORMER standard. Suitable for machining stainless steel, steel, cast steel, and high-temperature alloys. Coated for enhanced performance.

Basic Standard

DORMER

Coating

TiSiN

Coating property (CTP)

1

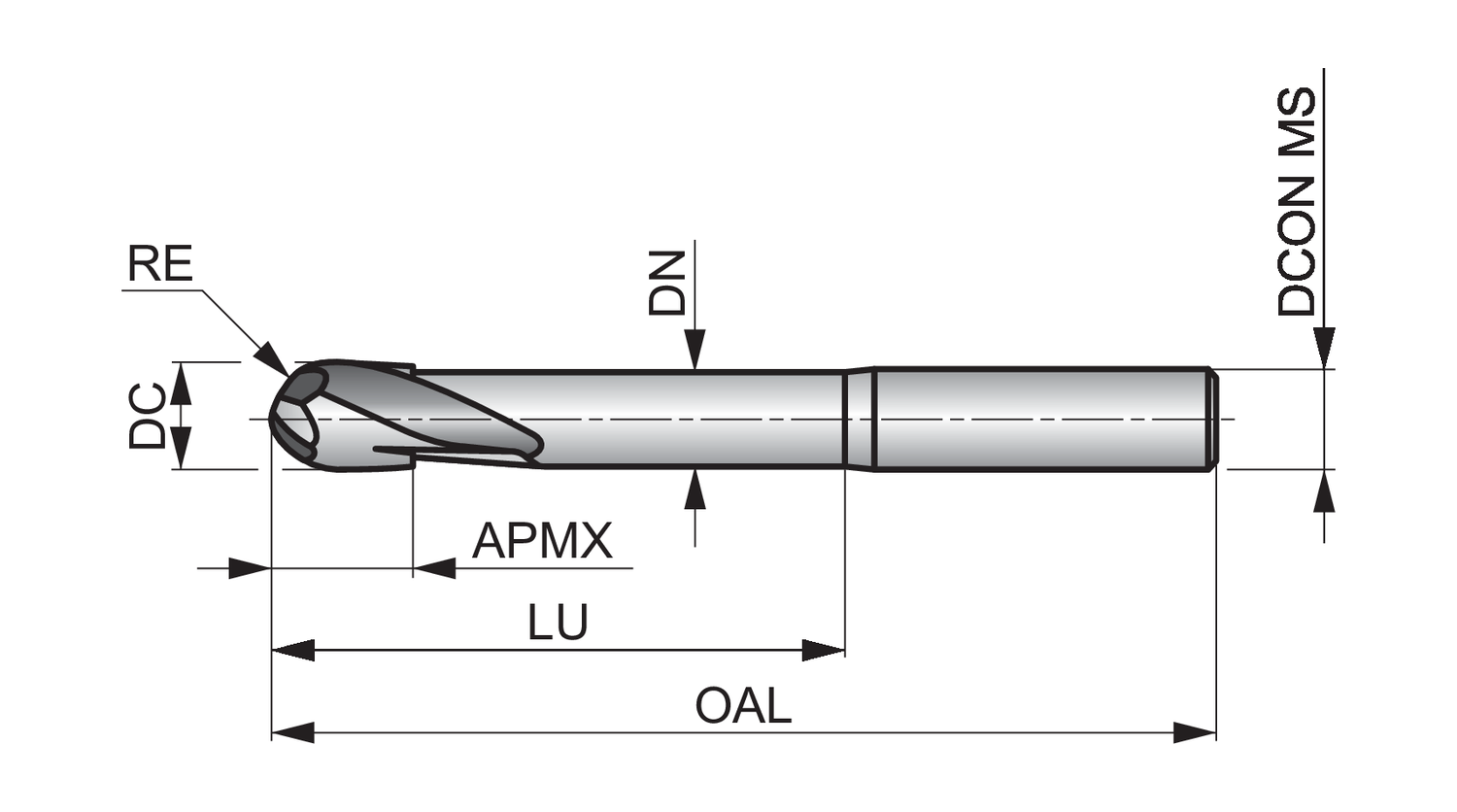

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

6

Corner radius - inch (RE)

0.1181

Corner radius - millimeter (RE)

3

Cut length

Extra short

Cutting diameter - inch (DC)

0.2362

Cutting diameter - millimeter (DC)

6

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

0.3937

Depth of cut maximum - millimeter (APMX)

10

EDP number

46706493

Flute count (NOF)

2

Flute helix angle (FHA)

30

Material

HM

Material application

M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

6706493

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Neck diameter - inch (DN)

0.2165

Neck diameter - millimeter (DN)

5.5

Ordering code ANSI

S2316.0

Overall length - inch (OAL)

2.9528

Overall length - millimeter (OAL)

75

Peripheral effective cutting edge count (ZEFP)

2

Radial rake angle (GAMF)

3

Shank

Cylindrical shank DIN 6535 HA

Usable Length - millimeter (LU)

40
