Dormer S2352.5 7648790 End Mill 2.50 mm
MODEL 7648790
$16.28 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
TiAlN
Coating property (CTP)
1

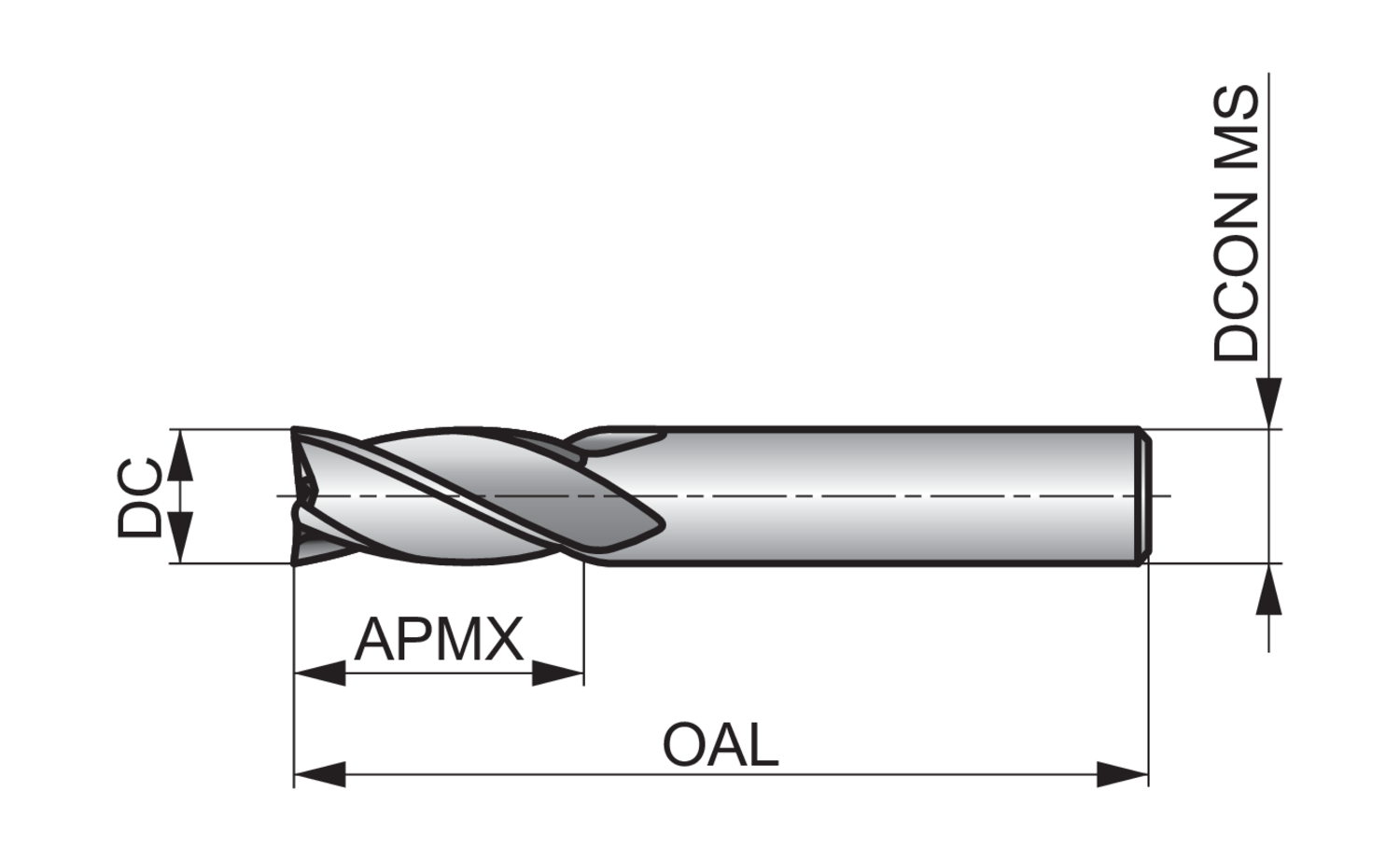

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Cut length
Medium
Cutting diameter - inch (DC)
0.0984
Cutting diameter - millimeter (DC)
2.5
Cutting diameter tolerance class (TCDC)
ANSI +.000/-.002
Depth of cut maximum - inch (APMX)
0.2756
Depth of cut maximum - millimeter (APMX)
7
EDP number
7648790
Flute count (NOF)
4
Flute helix angle (FHA)
30
Material
HM
Material application
K - Cast iron, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
7648790
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2352.5
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
10
Shank
Cylindrical shank
S235 4-flute milling cutters are a good, economical range for general milling of slots on most types of machines and have a medium length flute providing good rigidity for standard profile milling.
A great result is assured thanks to the aluminium titanium nitride coating which stops workpiece material from sticking to the cutting surfaces.
The premium carbide used in manufacture provides extended tool life and great performance, and the tools can be used for plunging, ramping and profile milling in steel, stainless steels and cast irons
