Dormer S2365/8 7648823 square end mill, 5/8" cutting diameter, 4-flute, solid carbide (HM), 30° helix angle. Suitable for machining steel, stainless steel, and cast iron (P, M, K). DORMER standard, 5/8" cylindrical shank, 2-1/4" maximum depth of cut.

Basic Standard

DORMER

Coating

TiAlN

Coating property (CTP)

1

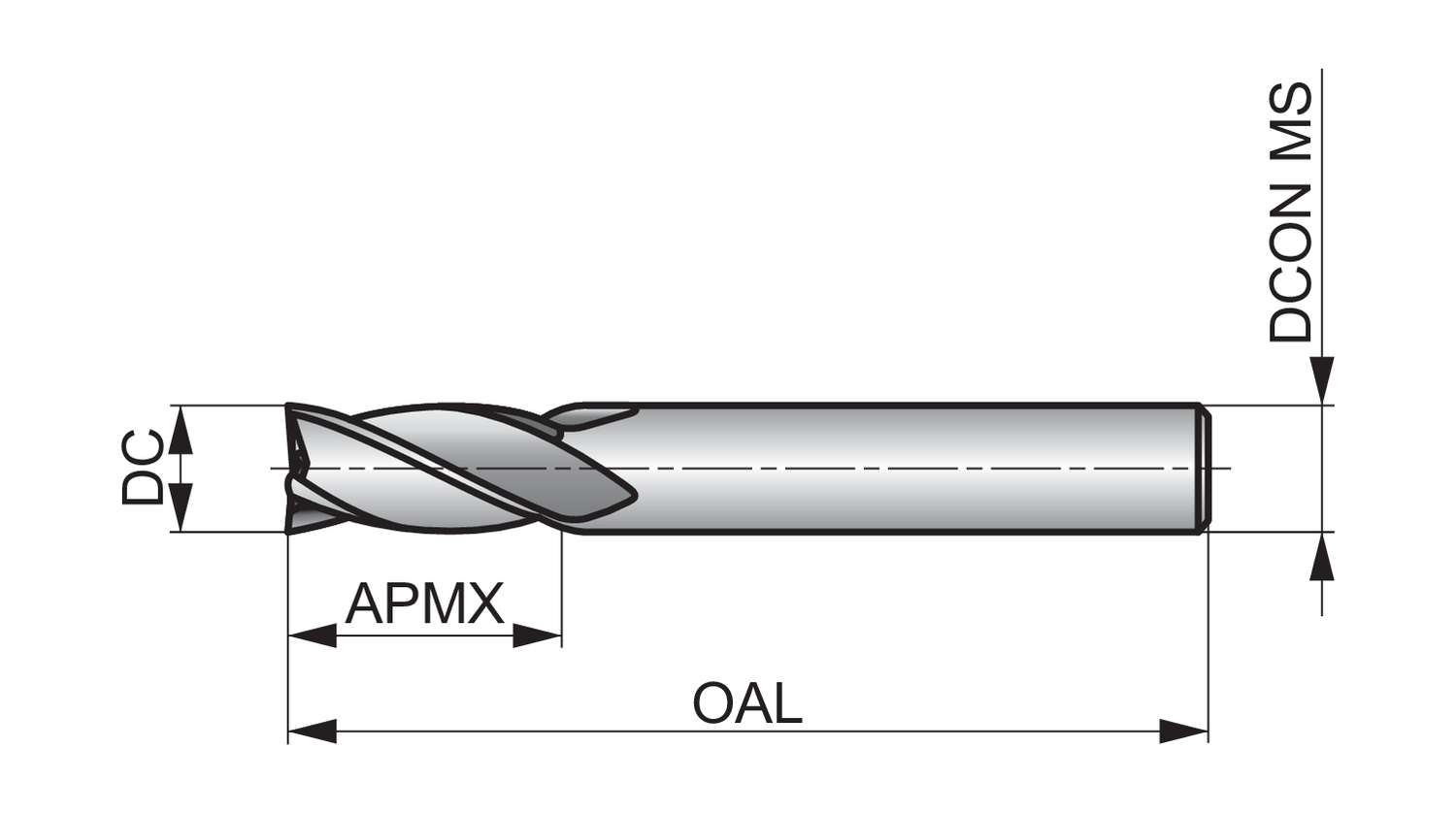

Connection diameter - fractional inch (DCON MS)

5/8

Connection diameter - inch (DCON MS)

0.625

Connection diameter - millimeter (DCON MS)

15.88

Cut length

Long

Cutting diameter - fractional inch (DC)

5/8

Cutting diameter - inch (DC)

0.625

Cutting diameter - millimeter (DC)

15.88

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

2.1/4

EDP number

7648823

Flute count (NOF)

4

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel

MID number

7648823

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S2365/8

Overall length - fractional inch (OAL)

5"

Overall length - inch (OAL)

5

Overall length - millimeter (OAL)

127

Radial rake angle (GAMF)

10

Shank

Cylindrical shank
