Dormer S2371 7648844 square end mill, 1" cutting diameter, 4-flute, solid carbide (HM), 30° helix angle, 3" max depth of cut, 1" cylindrical shank. Suitable for cast iron (K), stainless steel (M), and steel/cast steel (P) applications. DORMER standard.

Basic Standard

DORMER"

Coating

TiAlN

Coating property (CTP)

1

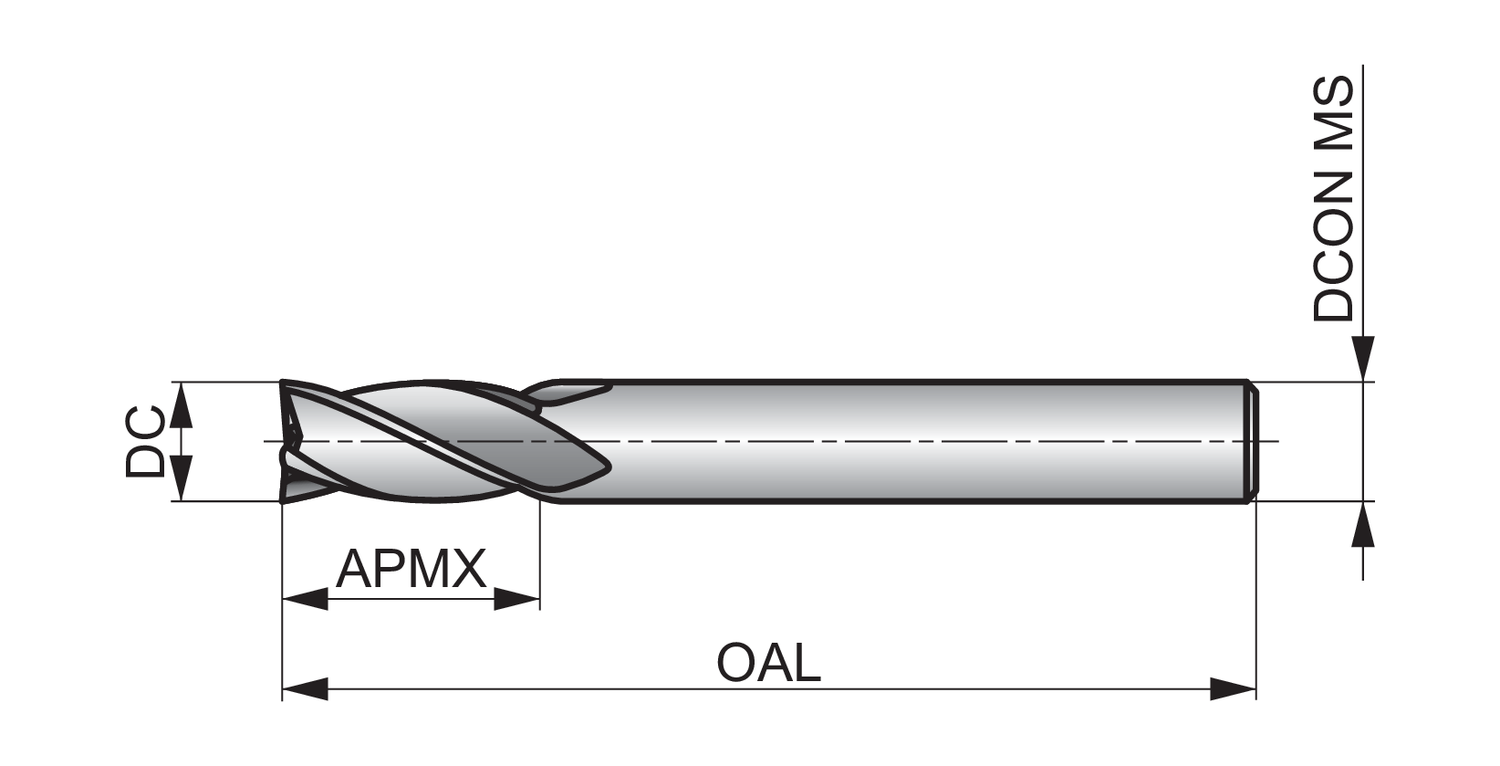

Connection diameter - fractional inch (DCON MS)

1"

Connection diameter - millimeter (DCON MS)

25.4

Cut length

Extra long

Cutting diameter - fractional inch (DC)

1"

Cutting diameter - inch (DC)

1

Cutting diameter - millimeter (DC)

25.4

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

3

EDP number

7648844

Flute count (NOF)

4

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel

MID number

7648844

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S2371

Overall length - fractional inch (OAL)

6"

Overall length - inch (OAL)

6

Overall length - millimeter (OAL)

152.4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank
