Dormer S2371/2 7648841 square end mill, 1/2" cutting diameter, 4-flute, solid carbide (HM) with 30° helix angle. Suitable for K (cast iron), M (stainless steel), and P (steel/cast steel) materials. DORMER standard.

Basic Standard

DORMER"

Coating

TiAlN

Coating property (CTP)

1

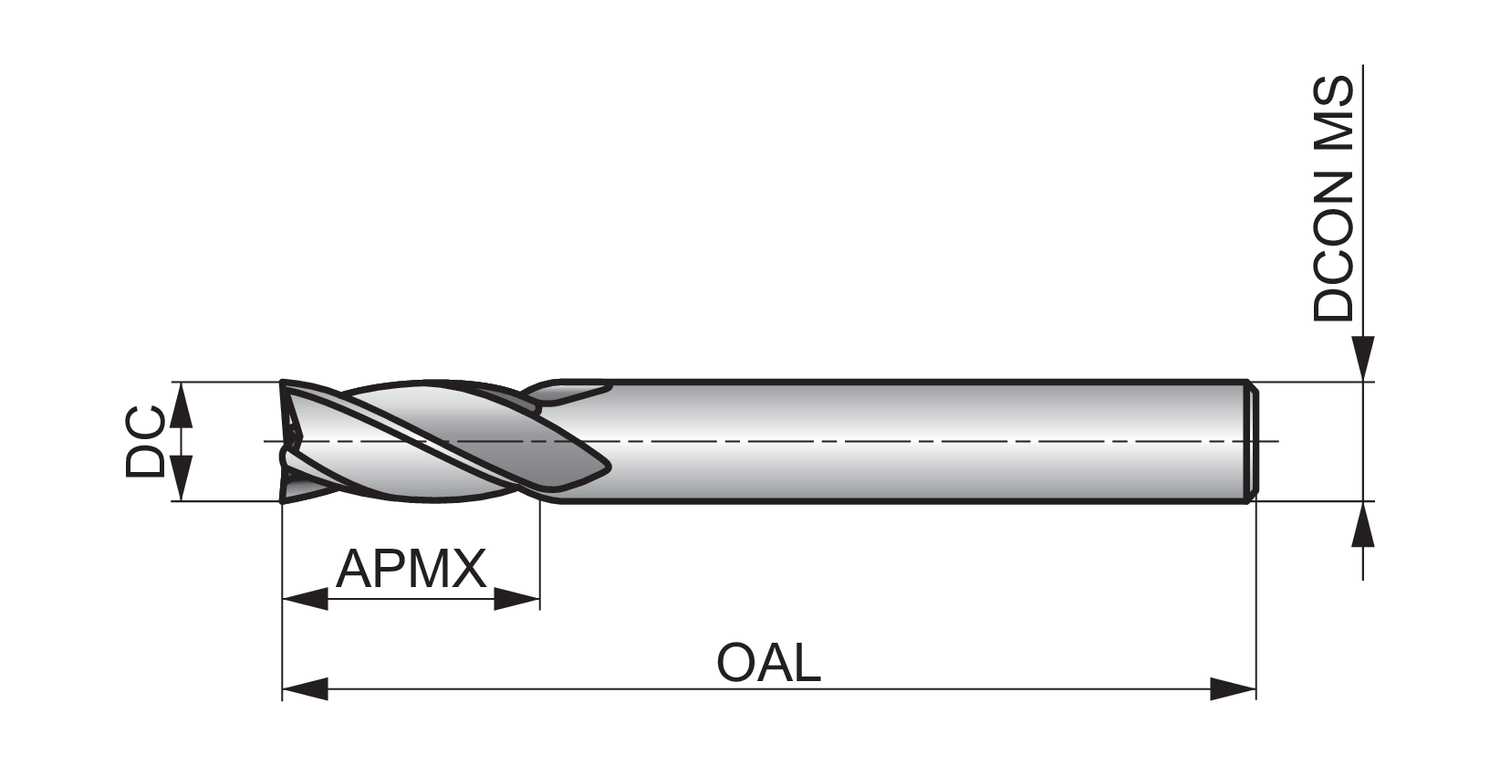

Connection diameter - fractional inch (DCON MS)

1/2

Connection diameter - inch (DCON MS)

0.5

Connection diameter - millimeter (DCON MS)

12.7

Cut length

Extra long

Cutting diameter - fractional inch (DC)

1/2

Cutting diameter - inch (DC)

0.5

Cutting diameter - millimeter (DC)

12.7

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

3

EDP number

7648841

Flute count (NOF)

4

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, M - Stainless steel, P - Steel and cast steel

MID number

7648841

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S2371/2

Overall length - fractional inch (OAL)

6"

Overall length - inch (OAL)

6

Overall length - millimeter (OAL)

152.4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank
