Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer S248HA5/16XR.030 7648909 5/16" 5-flute solid carbide corner radius square end mill with unequal flute helix for reduced vibration. Suitable for hardened materials, cast iron, stainless steel, steel, cast steel, and high-temperature alloys. DORMER standard.

MODEL 7648909

SKU

6078348

WEIGHT

0.095 lb

UOM

each

$65.00 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Basic Standard

DORMER

Coating

AlTiN

Coating property (CTP)

1

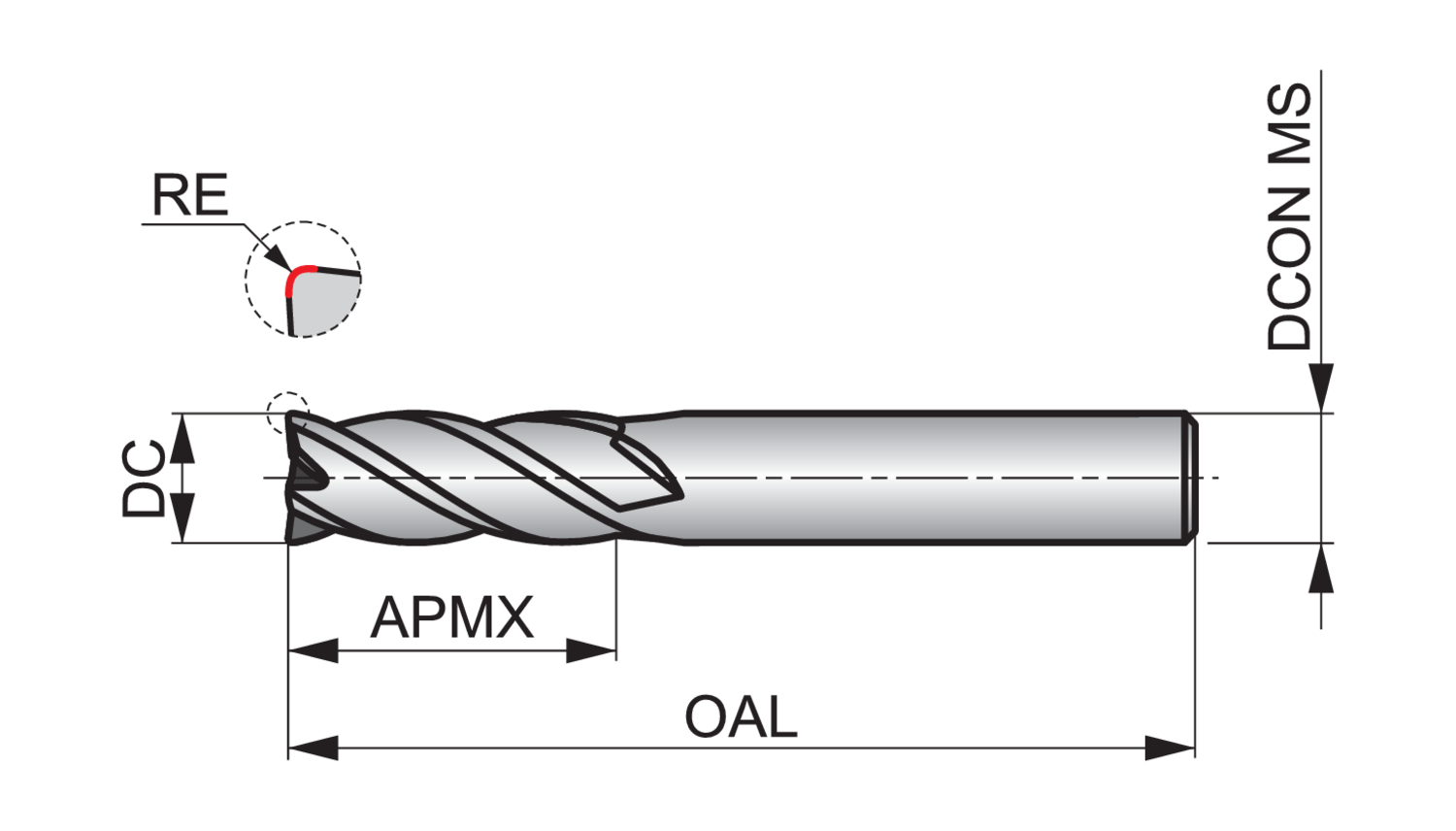

Connection diameter - fractional inch (DCON MS)

5/16

Connection diameter - inch (DCON MS)

0.3125

Connection diameter - millimeter (DCON MS)

7.94

Corner radius - inch (RE)

0.03

Cut length

Medium

Cutting diameter - fractional inch (DC)

5/16

Cutting diameter - inch (DC)

0.3125

Cutting diameter - millimeter (DC)

7.94

Cutting diameter tolerance class (TCDC)

ANSI +.000/-.002

Depth of cut maximum - fractional inch (APMX)

13/16

EDP number

7648909

Flute count (NOF)

5

Flute helix unequal

1

Material

HM

MID number

7648909

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S248HA5/16XR.030

Overall length - fractional inch (OAL)

2.1/2

Overall length - inch (OAL)

2.5

Overall length - millimeter (OAL)

63.5

Radial rake angle (GAMF)

8

Shank

Cylindrical shank DIN 6535 HA

S248HA 5-flute plain shank end mills from Dormer are manufactured from premium carbide for great performance and longer tool life.

The medium length flute provides the high rigidity needed for standard profile milling and the aluminium titanium nitride coating prevents workpiece material from sticking to the cutting edges of the tool so you get clean and accurate results.

The tools are very versatile and are suitable for plunging, ramping and profile milling in steels, cast irons and stainless steels.

S248HA 5-flute milling cutters have a special geometry with an unequal helix, designed to reduce vibration and improve surface finish when used in CNC machines
