Dormer S2623.0XR0.3 6706924 corner radius end mill, 3.00mm cutting diameter, 0.3mm corner radius, 4-flute, solid carbide (HM), 40° helix angle. Suitable for hardened materials, stainless steel, steel, cast steel, and high-temperature alloys. DORMER standard, coated for enhanced performance.
MODEL 6706924
$84.02 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
AlCrN
Coating property (CTP)
1

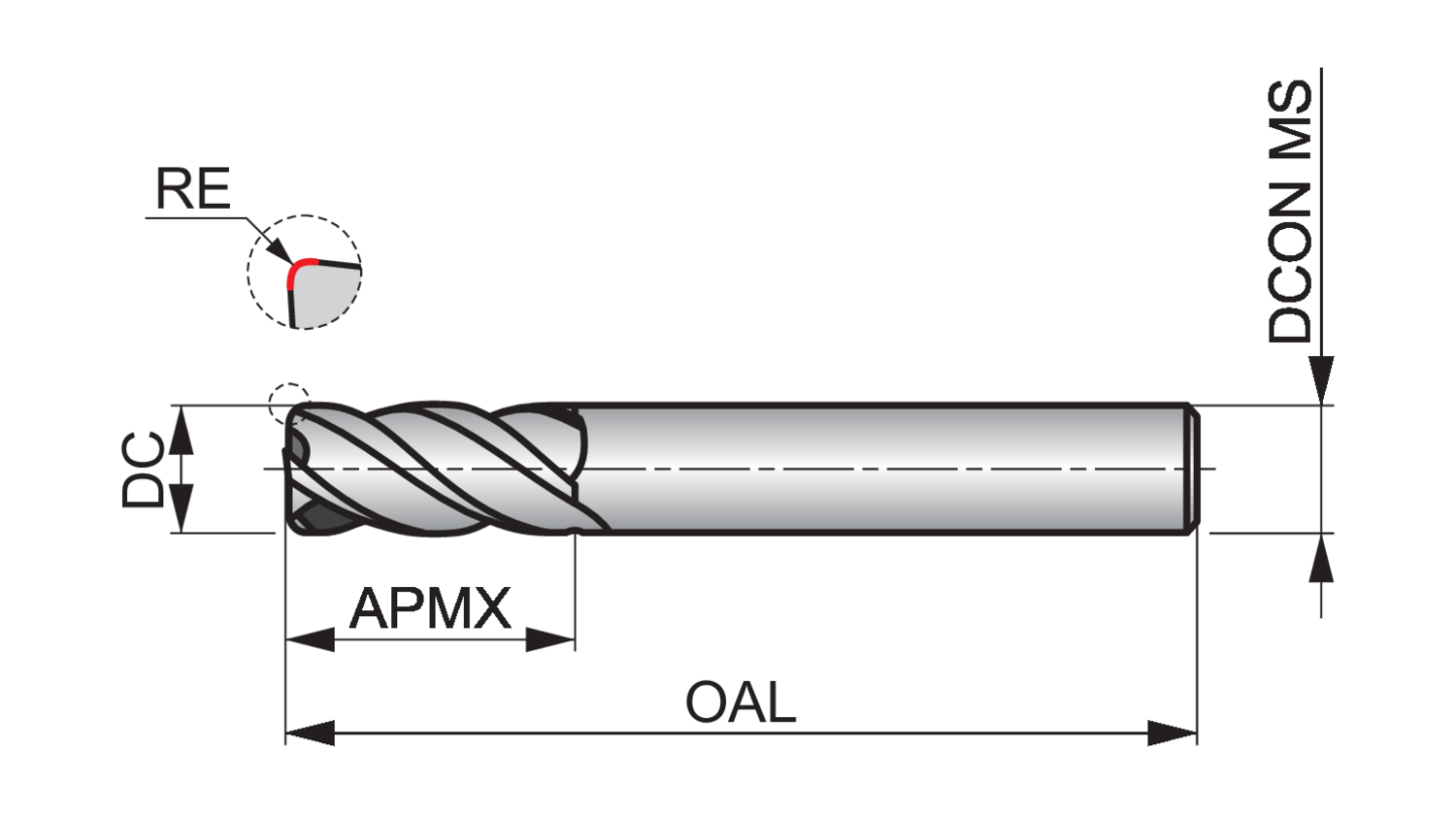

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Corner radius - inch (RE)
0.0118
Corner radius - millimeter (RE)
0.3
Cut length
Short
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
Cutting diameter tolerance class (TCDC)
h9
Cutting pitch differential (CPDF)
1
Depth of cut maximum - inch (APMX)
0.3543
Depth of cut maximum - millimeter (APMX)
9
EDP number
46706924
Flute count (NOF)
4
Flute helix angle (FHA)
40
Material
HM
Material application
H - Hardened materials, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys
MID number
6706924
Mill Profile
N - General Purpose Cutter Type for Low to High Resistance Materials
Ordering code ANSI
S2623.0XR0.3
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Peripheral effective cutting edge count (ZEFP)
4
Radial rake angle (GAMF)
4
Shank
Cylindrical shank DIN 6535 HA
S262 4-flute milling cutters have a medium length flute with corner radius for use in standard profile milling where a fillet radius is required and have a 40 degree helix with unequal flute divide to reduce vibration and improve surface finish when used in CNC machines.
The premium carbide used in manufacture will ensure great performance and extended tool life - further enhanced by the aluminium chrome nitride coating which also improves performance when milling difficult to machine materials
