6706931

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer S2626.0XR0.3 6706931 solid carbide corner radius square end mill, 6.00mm cutting diameter, 0.3mm corner radius, 4 flutes, 40° helix angle, 16mm max depth of cut. Suitable for hardened materials, stainless steel, steel, cast steel, and high-temperature alloys. DORMER standard.

MODEL 6706931

SKU

6078429

WEIGHT

0.060 lb

UOM

each

$92.83 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Basic Standard

DORMER

Coating

AlCrN

Coating property (CTP)

1

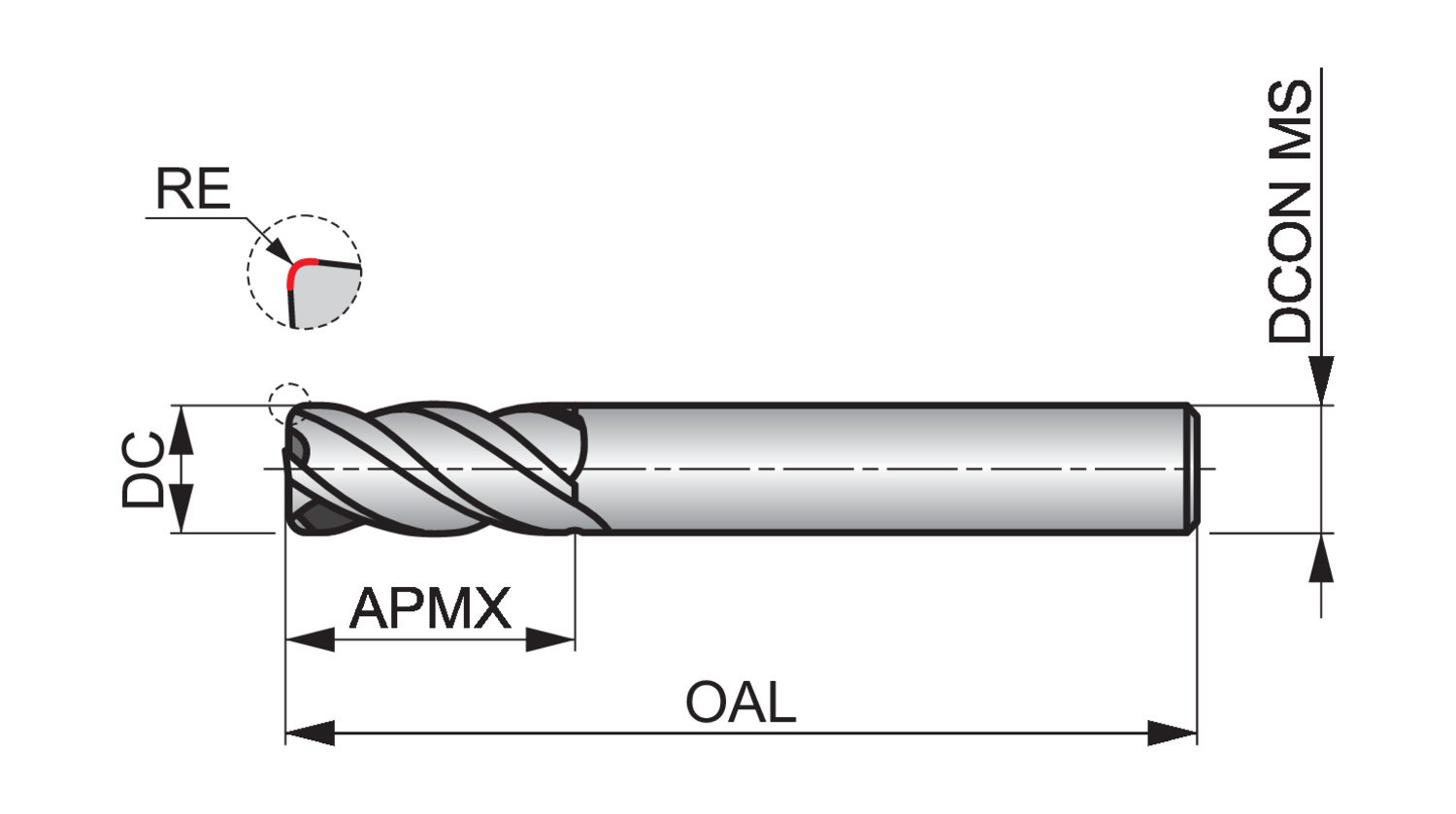

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

6

Corner radius - inch (RE)

0.0118

Corner radius - millimeter (RE)

0.3

Cut length

Short

Cutting diameter - inch (DC)

0.2362

Cutting diameter - millimeter (DC)

6

Cutting diameter tolerance class (TCDC)

h9

Cutting pitch differential (CPDF)

1

Depth of cut maximum - inch (APMX)

0.6299

Depth of cut maximum - millimeter (APMX)

16

EDP number

46706931

Flute count (NOF)

4

Flute helix angle (FHA)

40

Material

HM

Material application

H - Hardened materials, M - Stainless steel, P - Steel and cast steel, S - High-temperature alloys

MID number

6706931

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S2626.0XR0.3

Overall length - inch (OAL)

2.2441

Overall length - millimeter (OAL)

57

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

4

Shank

Cylindrical shank DIN 6535 HA

S262 4-flute milling cutters have a medium length flute with corner radius for use in standard profile milling where a fillet radius is required and have a 40 degree helix with unequal flute divide to reduce vibration and improve surface finish when used in CNC machines.

The premium carbide used in manufacture will ensure great performance and extended tool life - further enhanced by the aluminium chrome nitride coating which also improves performance when milling difficult to machine materials
