Dormer S51112.0 5982849 square end mill, 12.00 mm cutting diameter, solid carbide, 4-flute, 30° helix angle, 26 mm max depth of cut. Suitable for cast iron, stainless steel, non-ferrous metals, and steel applications. DORMER standard.

Basic Standard

DORMER

Coating

X-CEED

Coating property (CTP)

1

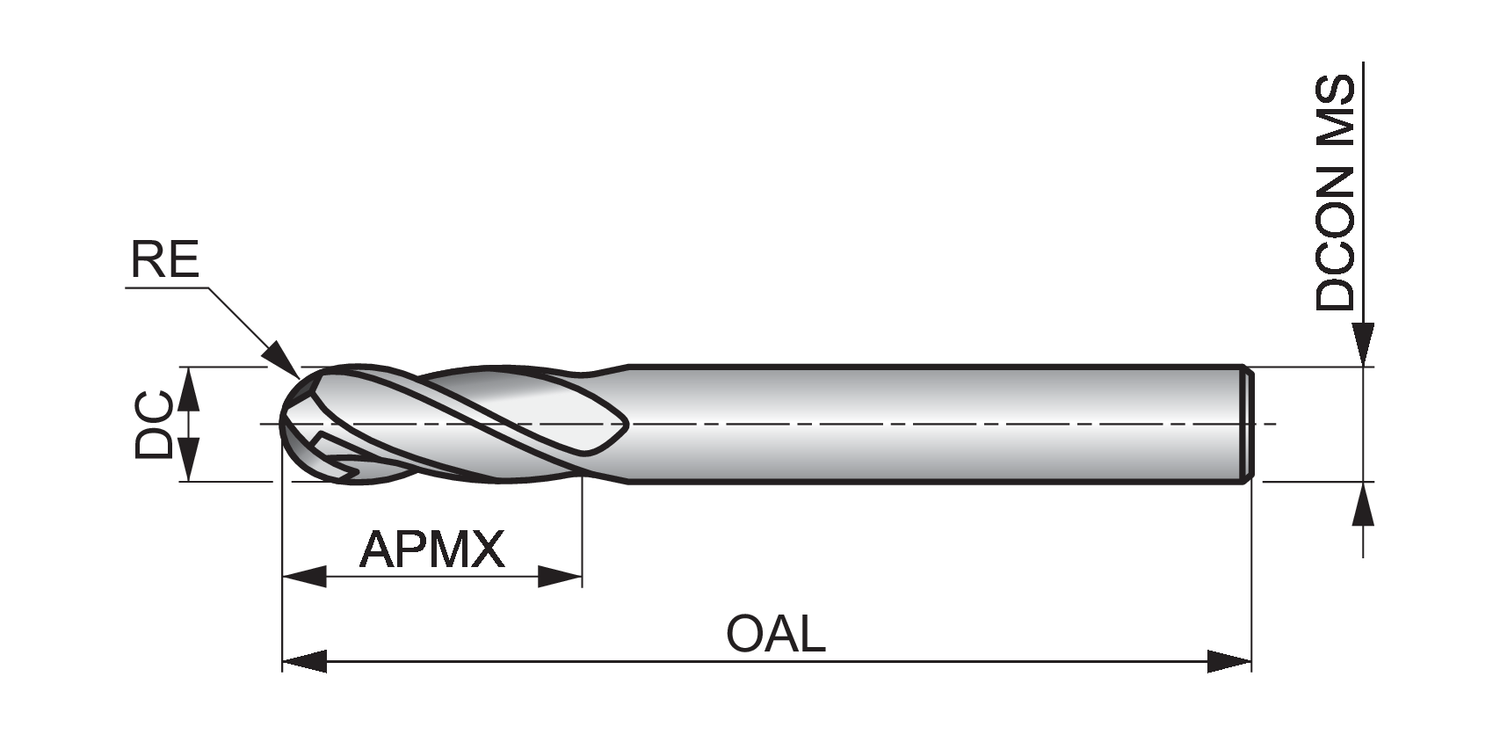

Connection diameter - inch (DCON MS)

0.4724

Connection diameter - millimeter (DCON MS)

12

Corner radius - inch (RE)

0.2362

Corner radius - millimeter (RE)

6

Cut length

Short

Cutting diameter - inch (DC)

0.4724

Cutting diameter - millimeter (DC)

12

Cutting diameter tolerance class (TCDC)

h9

Depth of cut maximum - inch (APMX)

1.0236

Depth of cut maximum - millimeter (APMX)

26

EDP number

120989

Flute count (NOF)

4

Flute helix angle (FHA)

30

Material

HM

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5982849

Mill Profile

N - General Purpose Cutter Type for Low to High Resistance Materials

Ordering code ANSI

S51112.0

Overall length - inch (OAL)

3.937

Overall length - millimeter (OAL)

100

Peripheral effective cutting edge count (ZEFP)

4

Radial rake angle (GAMF)

10

Shank

Cylindrical shank DIN 6535 HA
